ERICO TDSGAPC14 Quick Start Manual

INSTRUCTION SHEET
TDSGAPC14
Pipe Mount Grounding Bus
Pipe Size Range: 1.9 to 2.5 inch actual diameter
(1.5 to 2 inch, Schedule 40)
Install threaded rods by loosening hex nut on
connector. Snug hex nut by hand such that the rods
do not fall from the connector. Do not tighten hex nut.
WARNING:
1. ERICO products shall be installed and used only as indicated in ERICO product instruction sheets and training materials.
www.erico.com and from your ERICO customer service representative.
2. ERICO products must never be used for a purpose other than the purpose for which they were designed or in a manner that exceeds specified load ratings.
3. All instructions must be completely followed to ensure proper and safe installation and performance.
4. Improper installation, misuse, misapplication or other failure to completely follow ERICO's instructions and warnings may cause product malfunction, property
damage, serious bodily injury and death.
SAFETY INSTRUCTIONS:
All governing codes and regulations and those required by the job site must be observed.
Always use appropriate safety equipment such as eye protection, hard hat, and gloves as appropriate to the application.
CADDY, CADWELD, CRITEC, ERICO, ERIFLEX, ERITECH, and LENTON are registered trademarks of ERICO International Corporation.
TECHNICAL SUPPORT
www.erico.com

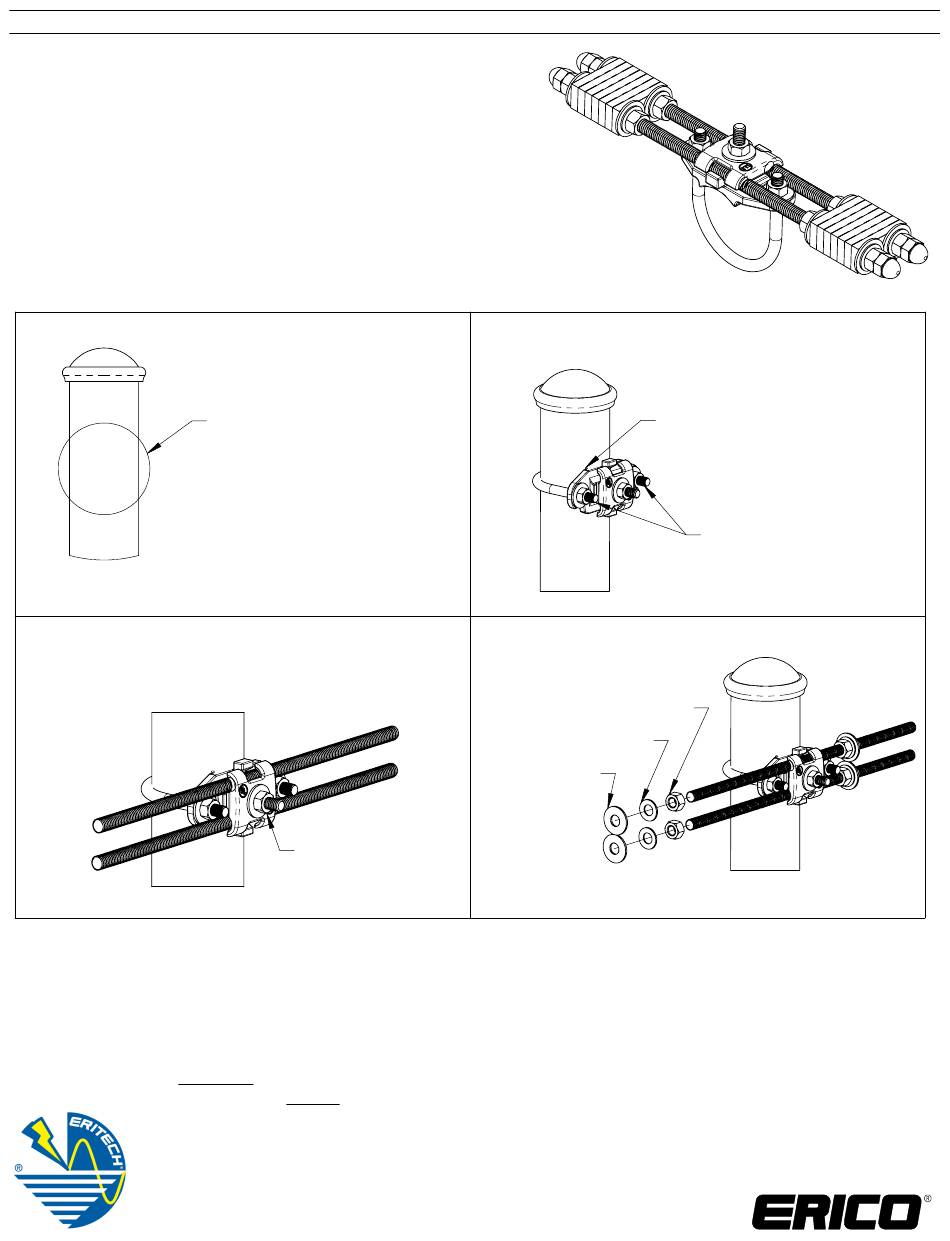

Clean surface of pipe using a
T313 wire brush. Remove all
paint and oxide layers.
Loosen to install rods
IP8260_B
Attach clamp to pipe. Tighten hex nuts on U-bolt.
Install inner hardware.
3/8 Belleville Washer
3/8 Flat Washer
1 OF 2 © 2013 ERICO International Corporation.
Apply anti-oxide
compound at interface
5/16-18 Hex Nut
Apply 12 ft-lbs (Max)
3/8 Hex Nut
Instruction sheets are available at
