ERICO SBC105R Instruction Sheet

INSTRUCTION SHEET

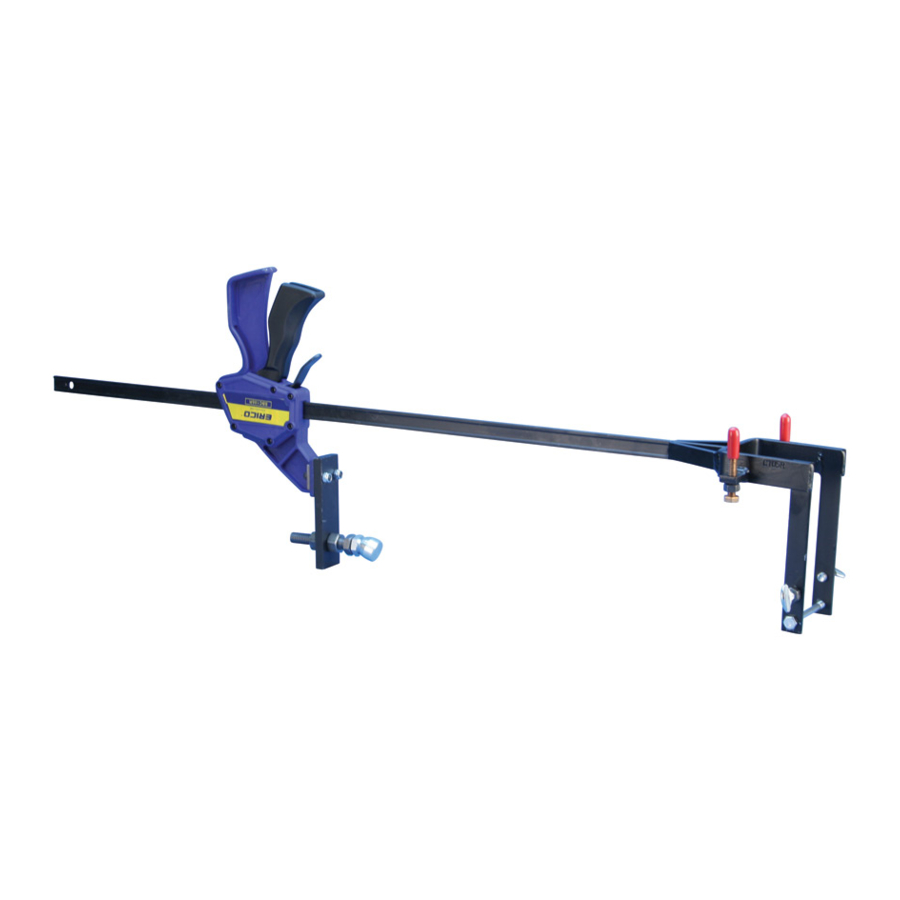

SBC105R Mold
Assembly with
Quick Grip
Extension Clamp

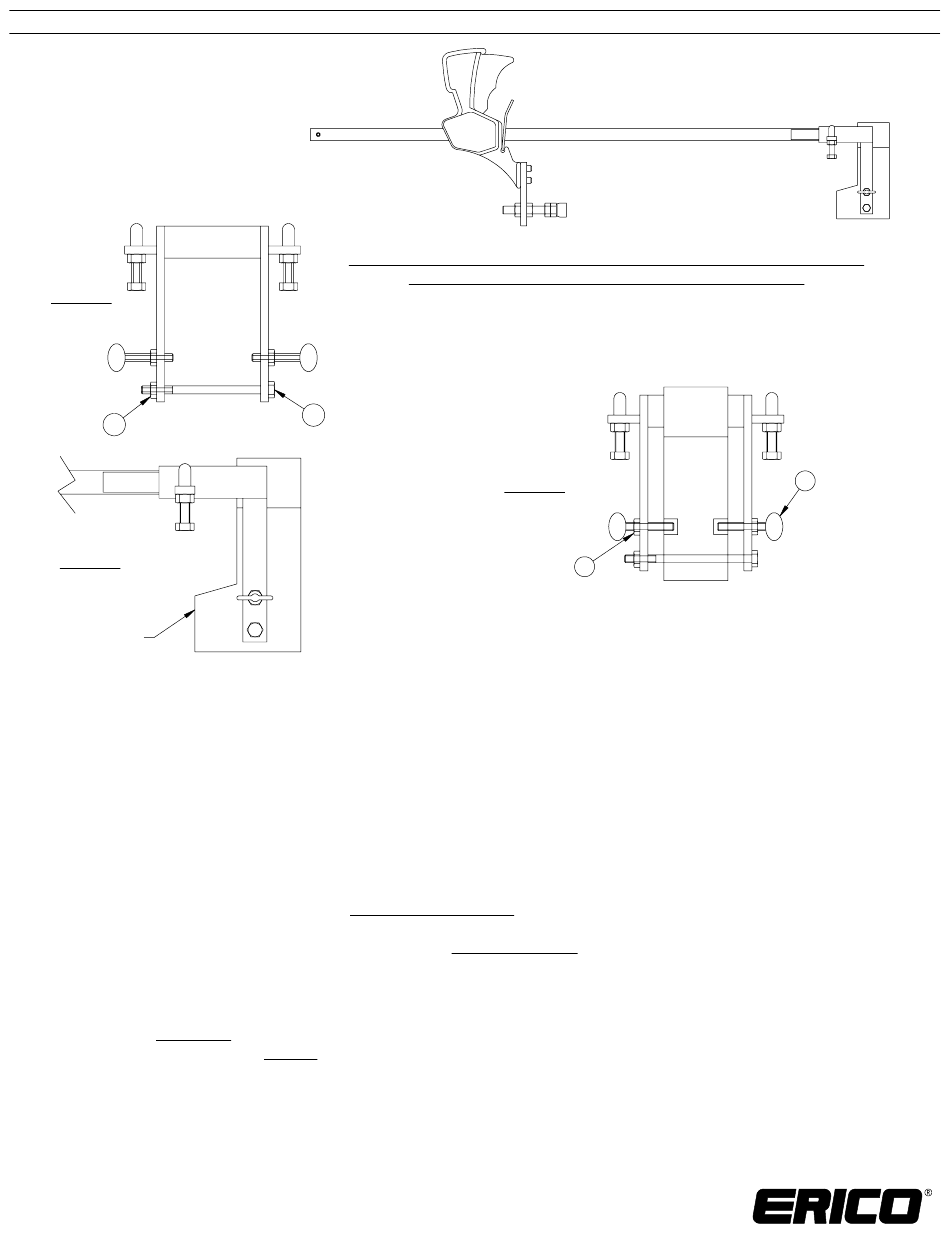

Figure 1
2
Figure 2
Nose of mold
Prior to making a connection, read and follow the full instruction sheets IPP, IPX,
IPRLBR and special instructions below.
1. Remove item 1 (hex bolt) and item 2 (hex nut) from clamp assembly (As
shown in Figure 1).
2. Place mold between mounting frame, with nose of mold facing inward (As
shown in Figure 2).
3. Insert hex bolt through one side of frame, then through mold and opposite side
of frame (As shown in Figure 3).
4. Secure assembly with item 2 (hex nut) to item 1 (hex nut). Tighten nut until nut
is flush with frame. Do not over tighten and cause frame to bend.
5. Center mold in frame by adjusting item 3 (thumb screws) into counterbored
holes provided in side of mold. Do not tighten. Mold should "float" slightly
within the assembly for seal against rail during usage.
6. Tighten item 4 (hex nuts) on item 3 (thumb screws) to mold frame.
WARNING:
1. ERICO products shall be installed and used only as indicated in ERICO product instruction sheets and training materials.
www.erico.com and from your ERICO customer service representative.
2. ERICO products must never be used for a purpose other than the purpose for which they were designed or in a manner that exceeds specified load ratings.
3. All instructions must be completely followed to ensure proper and safe installation and performance.
4. Improper installation, misuse, misapplication or other failure to completely follow ERICO's instructions and warnings may cause product malfunction, property
damage, serious bodily injury and death.

SAFETY INSTRUCTIONS:

All governing codes and regulations and those required by the job site must be observed.
Always use appropriate safety equipment such as eye protection, hard hat, and gloves as appropriate to the application.
CADDY, CADWELD, CRITEC, ERICO, ERIFLEX, ERITECH, and LENTON are registered trademarks of ERICO International Corporation.
TECHNICAL SUPPORT:
www.erico.com
Mold is not supplied with clamp, must be ordered separately
See reverse for attachment of assembly to rail
