Truflo — TKM Series
®
In-Line Paddle Wheel Flow Meter Sensor

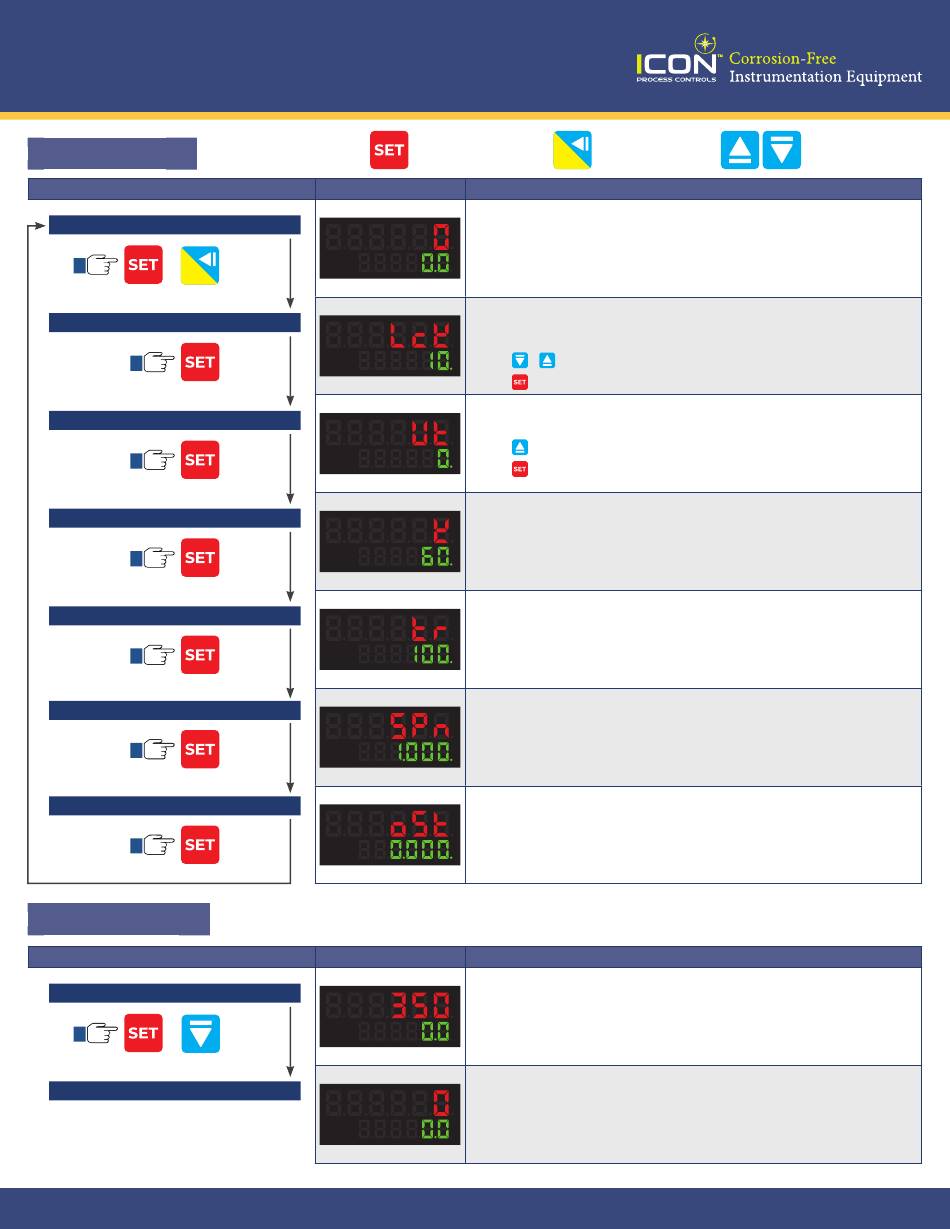

Programming
STEPS
Home Screen
1
+
F
Password
2
Units of Flow
3
K Factor
4
Transmitter Range
5
Transmitter Span
6
Transmitter Offset
7

Totalizer Reset

STEPS
Home Screen
1
+
Totalizer Reset
2
24-0317 © Icon Process Controls Ltd.
DISPLAY
▶
��
3 Sec .
▶
▶
▶
▶
��
3 Sec .
▶
▶
DISPLAY
▶
��
3 Sec .
▶
Select/Save/Continue
F
Home Screen
Factory Default: Lk = 10
Otherwise meter will enter Lockout Mode*
Press / to change
to save
Press
Ut.0 = Liter | Ut.1 = Gallon (Factory Default)
Press to change
Press to save
Enter K Factor Value
Refer to Page 9 for K-Factor Values
Factory Default — 4mA = 0 | 20mA = 100** (Max. Flow Rate)
**This can be changed to suit application
Range : 0.000 ~ 9.999
Factory Default: SPn = 1.000
(Span : Difference between Upper Range (UPV) & Lower Range
(LRV))
Range : 0.000 ~ 9.999
Factory Default: oSt = 0.000
(Offset : Actual Output - Expected Output)
Home Screen
Totalizer Value will Reset to Zero
Move Selection Left
OPERATION
| Ut.2 = Kiloliters
OPERATION
Change Digit Value
6
