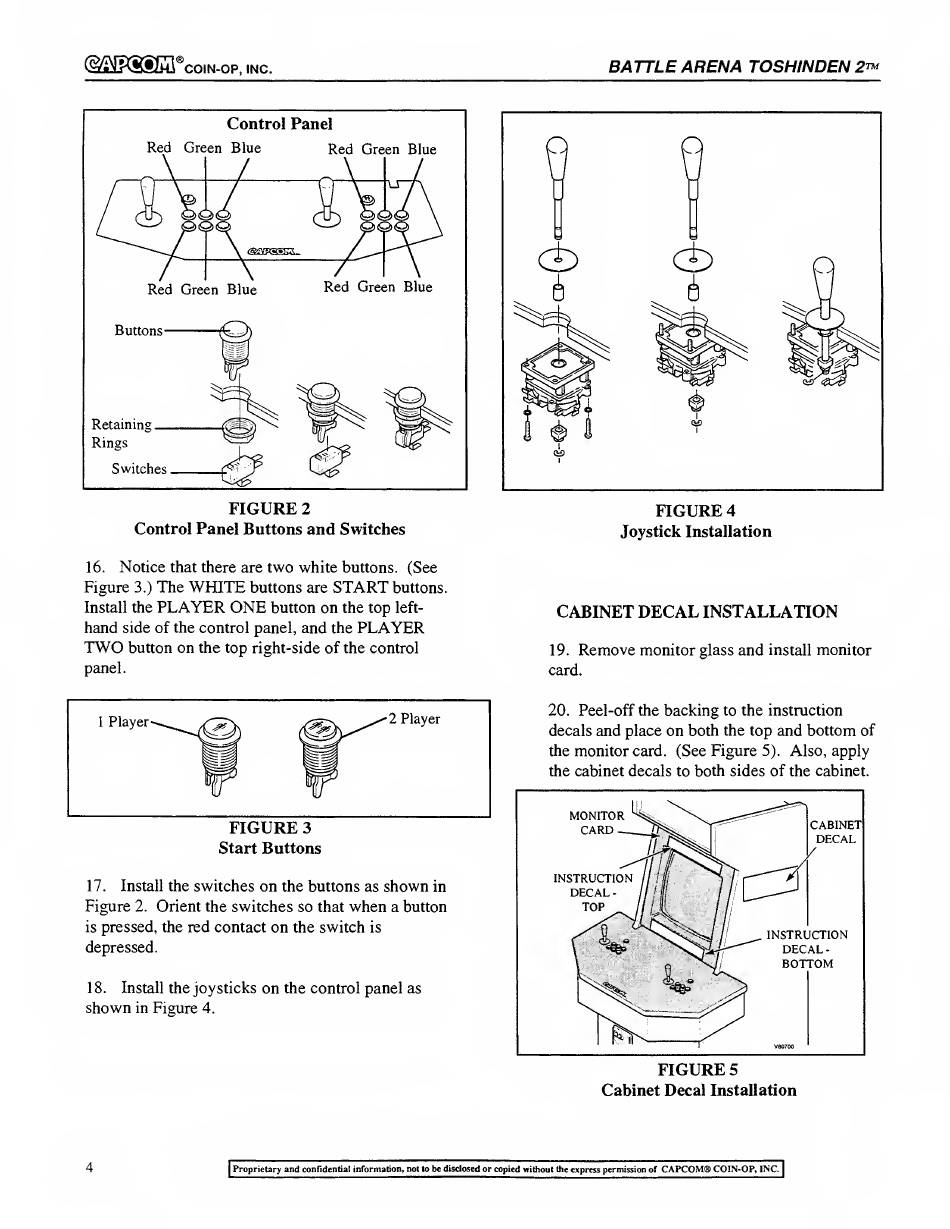

Capcom Battle Arena Toshinden 2 Operator's Manual page 8

COIN-OP,
INC.
BATTLE
ARENA
TOSHINDEN
2™
FIGURE
2
Control Panel Buttons
and
Switches
16.
Notice
that
there are
two
white
buttons. (See
Figure
3.)
The
WHITE
buttons are
START
buttons.
Install
the
PLAYER ONE
button
on
the top
left-
hand
side
of
the control panel,
and
the
PLAYER
TWO
button
on
the top right-side of
the control
panel.
CABINET
DECAL
INSTALLATION
19.
Remove
monitor
glass
and
install
monitor
card.
20. Peel-off the backing
to
the instruction
decals and place
on
both the top
and bottom
of
the monitor
card.
(See Figure
5).
Also, apply
the cabinet decals to
both
sides
of
the cabinet.
FIGURE
3
Start Buttons
17. Install
the
switches on
the buttons as
shown
in
Figure
2.
Orient the
switches so
that
when
a button
is
pressed, the red contact
on
the
switch
is
depressed.
18. Install the joysticks
on
the control
panel
as
shown
in
Figure
4.
FIGURE
5
Cabinet Decal
Installation
4
