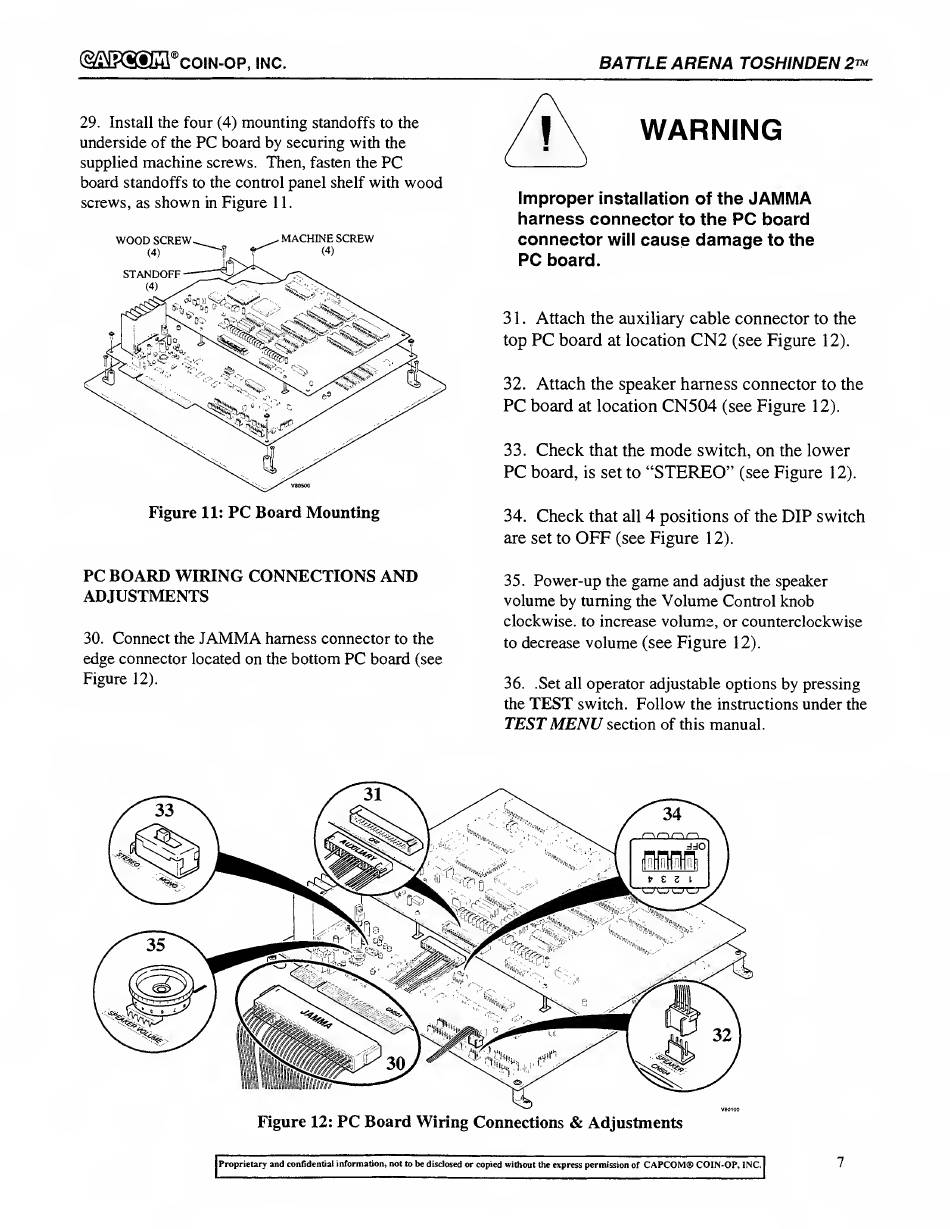

Install
the four
(4)
mounting
standoffs
to
the
underside of
the
PC
board by
securing with the
supplied
machine
screws.
Then,
fasten the
PC
board
standoffs
to
the control
panel
shelf
with
wood
screws, as
shown
in
Figure
1 1
Figure
11:
PC
Board Mounting
PC
BOARD
WIRING CONNECTIONS
AND
ADJUSTMENTS
30.
Connect
the
JAMMA
harness connector
to the
edge connector
located
on
the
bottom
PC
board
(see
Figure
12).
WARNING
Improper
installation
of
the
JAMMA
harness connector
to
the
PC
board
connector
will
cause
damage
to the
PC
board.
3
1
.
Attach
the auxiliary
cable connector
to
the
top
PC
board
at
location
CN2
(see
Figure
12).
32.
Attach
the
speaker harness connector
to
the
PC
board
at
location
CN504
(see
Figure
12).
33.
Check
that the
mode
switch,
on
the
lower
PC
board,
is
set
to
"STEREO"
(see
Figure
12).
34.
Check
that
all
4
positions
of
the
DIP
switch
are
set to
OFF
(see
Figure
12).
35.
Power-up
the
game
and
adjust the
speaker
volume
by
turning the
Volume
Control
knob
clockwise,
to
increase
volume,
or
counterclockwise
to
decrease
volume
(see
Figure
12).
36.
.Set
all
operator adjustable options
by
pressing
the
TEST
switch.
Follow
the
instructions
under
the
TEST
MENU
section
of
this
manual.
