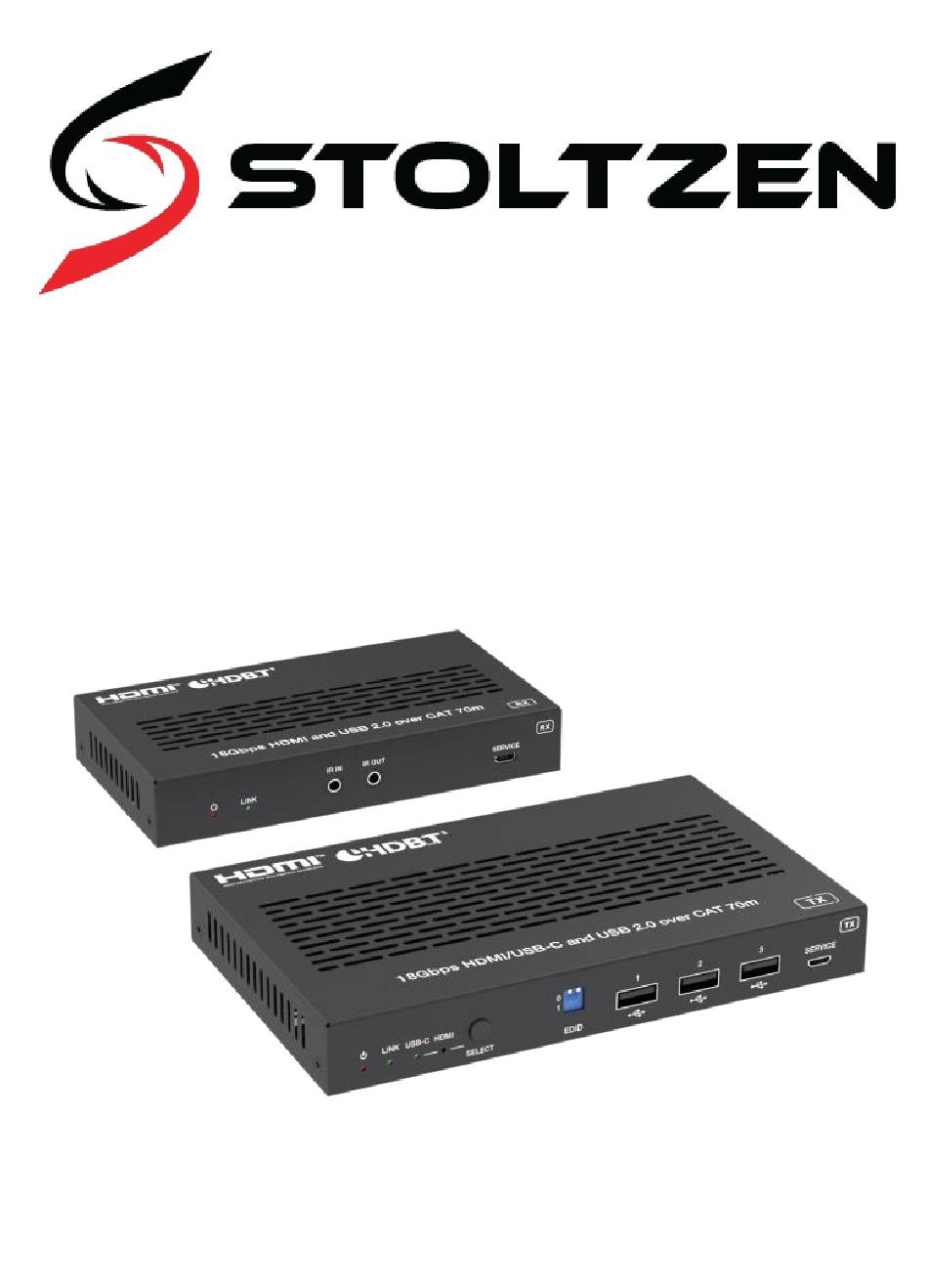

- Page 1 SHE755 HDBaseT™ 4K60 Kit18Gbps KVM 18Gbps, HDMI/USB-C, HDBaseT 3.0, USB 2.0 VER 1.0...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
1. Introduction The Stoltzen SHE755 18Gbps HDBaseT 3.0 Extender can extend uncompressed HDMI/USB-C signals, bi-directional IR, RS-232, and USB 2.0 signals up to 230ft/70m (4K30/ 1080P) or 131ft /40m (4K60) via a single CAT6A/7 cable. Video resolution is up to 4K2K@60Hz YUV 4:4:4. The transmitter features with 1x HDMI input, 1x USB-C input (60W charging), 1x USB Host and 3x USB Device ports. -
Page 4: Package Contents
3. Package Contents 1 × Stoltzen SHE755T 18Gbps HDMI/USB-C over HDBaseT 3.0 Extender (Transmitter) 1 × Stoltzen SHE755R 18Gbps HDMI/USB-C over HDBaseT 3.0 Extender (Receiver) 1 × IR Blaster Cable (1.5 meters) 1 × IR Wideband Receiver Cable (1.5 meters) 2 ×... - Page 5 Connection Input: 1 x HDMI IN [Type A, 19-pin female] 1 x USB-C IN [USB Type C, 24-pin female] Output: 1 x HDBaseT OUT [RJ45, 8-pin female] 1 x L/R OUT [3.5mm Stereo Mini-jack] Control: 1 x IR IN [3.5mm Stereo Mini-jack] Transmitter 1 x IR OUT [3.5mm Stereo Mini-jack] 1 x RS-232 [3pin-3.81mm phoenix connector]...
-
Page 6: Operation Controls And Functions
5. Operation Controls and Functions 5.1 Transmitter Panel Name Function Description Power LED Red LED indicates that the transmitter is powered on. ▪ Light on: Transmitter and receiver are in good connection status. ▪ LINK LED Light flashing: Transmitter and receiver are in poor connection (Green) status. - Page 7 Name Function Description Firmware update and API command control port. SERVICE HDBaseT output port, connected to the HDBaseT IN port of HDBaseT receiver with a CAT6A/7 cable. It is used for various signals pass-through. ▪ Light on: There is video signal transmission with HDCP encryption. Data Signal ▪...
-
Page 8: Receiver Panel
5.2 Receiver Panel Name Function Description Power LED Red LED indicates that the receiver is powered on. ▪ Light on: Transmitter and receiver are in good connection status. ▪ Light flashing: Transmitter and receiver are in poor connection LINK LED status. -
Page 9: Ir Pin Definition
Name Function Description Two USB extension ports, connected to mouse, keyboard, USB USB Device Flash Drive or other USB devices. ports 11 L/R OUT Analog audio output port, used for audio de-embedding output. RS-232 serial port, used for RS-232 command pass-through and 12 RS-232 API command control. -
Page 10: Api Commands
7. API Commands The product also supports API commands control. Connect the RS-232 port of the product to a PC or control system with a 3-pin phoenix connector cable, or connect the port of the product to a PC with a Micro USB cable. SERVICE Then, open a serial command tool on PC to send ASCII commands to control the product. - Page 11 Default Command Code Function Description Example Feedback Input: USB-C Video: 1920x1080p60 Audio: 48K PCM 2CH HDCP: 1.4 USB Host: Connected r status Get system status r status HDBT Link: ON HDBT Signal: ON EDID: DIP_00 (Copy display's EDID) Set TX input video s tx input x = USBC, HDMI, s tx input x...
- Page 12 Command Code Function Description Example Feedback Default Set input ports EDID x = USBC, HDMI, ALL 00 - EDID dip switch (default) 01 - 1920x1080@60 8bit Stereo 02 - WUXGA 1920x1200 03 - 1920x1080@60 8bit High Definition Audio 04 - 3840x2160@60Hz 4:2:0 Deep Color Stereo s edid USBC to Set edid USBC to 00 - EDID...
-
Page 13: Application Example
8. Application Example The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. 11 / 11...
