- Page 1 User Manual SHE725 USB-C KVM Extender over HDBaseT3.0 All Rights Reserved Version: SHE725_2023V1.0...
- Page 2 Preface Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance. The functions described in this version were updated till January, 2023.
-
Page 3: Product Introduction

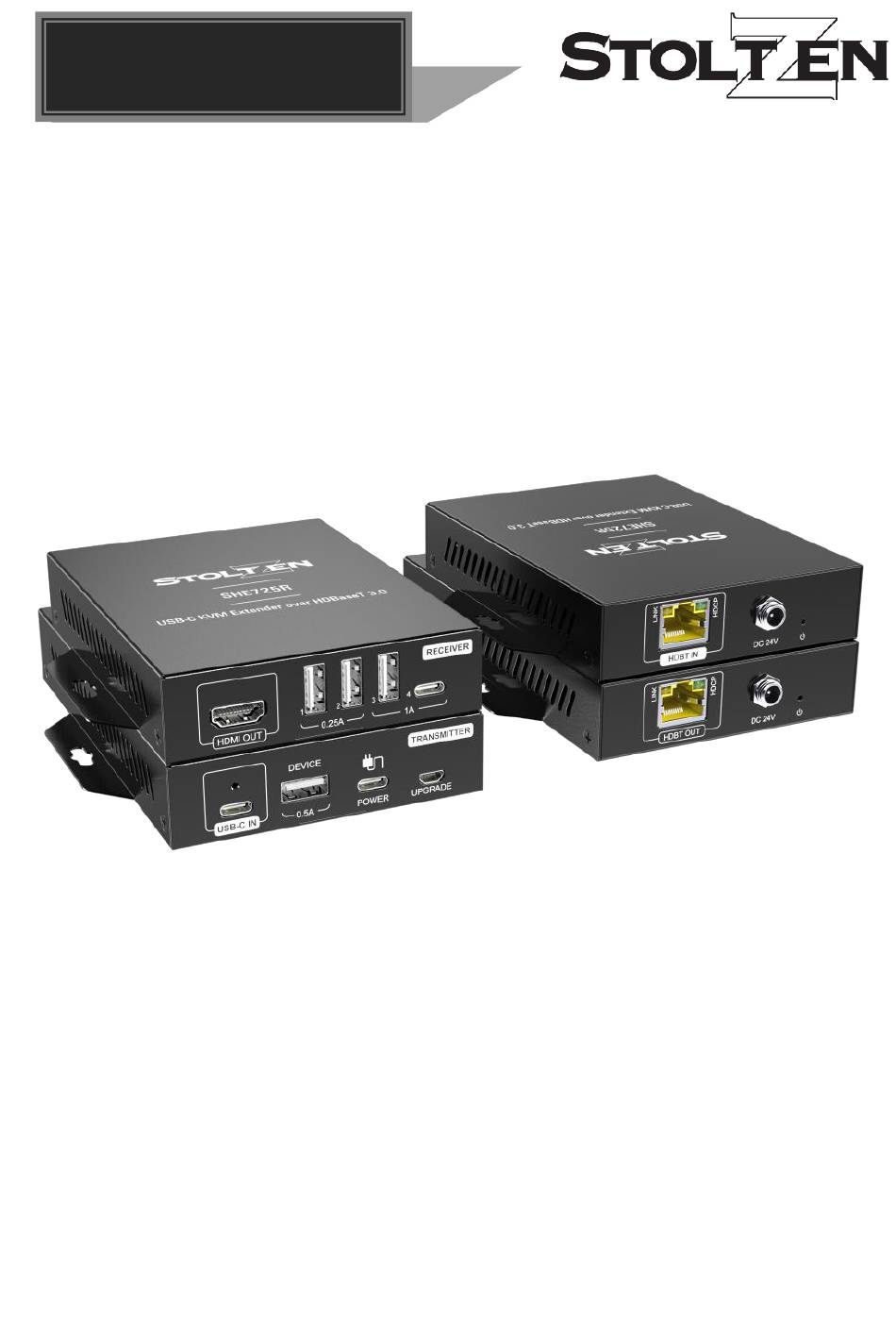

1. Product Introduction The SHE725 is an USB-C KVM Extender Kit that allows one USB channel to be transmitted over distances of up to 40m at 4K@60Hz and 70m at 4K@30Hz via CAT6A cable. The USB-C KVM Extender Kit includes one transmitter and one receiver. The transmitter features one USB-C input and one HDBaseT3.0 output. -
Page 4: Specification
2. Specification Transmitter Receiver Video (1)USB-C IN (1)HDBaseT IN Input Input Connector (1) Type-C (1) RJ45 Input Resolution Up to 4K@60Hz 4:4:4 Up to 4K@60Hz 4:4:4 Output (1) HDBaseT OUT (1) HDMI OUT Output Connector (1) RJ45 (1) Type-A female HDMI Output Resolution Up to 4K@60Hz 4:4:4 Up to 4K@60Hz 4:4:4... -
Page 5: Panel Description
3. Panel Description 3.1 Transmitter USB-C IN: Connects to the Macbook or other device with SlimPort output. ① DEVICE: USB 2.0 Ports for connecting device ② Power: Connects to adapter to charge the USB-C IN ③ FW: Micro-USB for firmware upgrade. ④... -
Page 6: System Connection
4. System Connection The following diagram illustrates typical input and output connection that can be utilized with the extender:... -
Page 7: Panel Drawing
5. Panel Drawing...
