Pacific Casual Tiara Garden 183-W5A-DC4-V1-ST Assembly Instructions

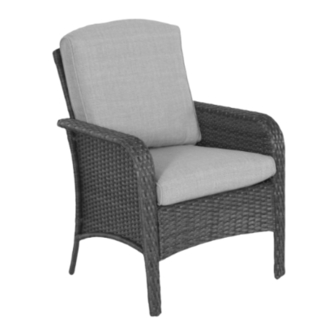

4-pack dining chairs

Download this manual

ASSEMBLY INSTRUCTIONS

ITEM NUMBER: 183-W5A-DC4-V1-ST

ITEM NAME: Tiara Garden 4-Pack Dining Chairs

Customer Service:

Toll Free: 888-445-6690 (7:30 am to 4:30 pm PST, Monday to Friday)

Supplier: Pacific Casual L.L.C.

Address: 1060 Avenida Acaso, Camarillo, CA 93012 E-Mail:

customerservice@pacificcasual.com

1/4

Need help?

Do you have a question about the Tiara Garden 183-W5A-DC4-V1-ST and is the answer not in the manual?

Page 1 ASSEMBLY INSTRUCTIONS ITEM NUMBER: 183-W5A-DC4-V1-ST ITEM NAME: Tiara Garden 4-Pack Dining Chairs Customer Service: Toll Free: 888-445-6690 (7:30 am to 4:30 pm PST, Monday to Friday) Supplier: Pacific Casual L.L.C. Address: 1060 Avenida Acaso, Camarillo, CA 93012 E-Mail: customerservice@pacificcasual.com...
Page 2 PRE-ASSEMBLY PREPARATION: THIS PACKAGE MAY CONTAIN SMALL ITEMS WHICH SHOULD BE KEPT AWAY FROM CHILDREN • Please check that all parts and hardware are included before beginning assembly. Save all packing materials until assembly is complete to avoid accidentally discarding smaller •...
Page 3 PART LIST: Quantity Part No. Illustration Description Back Seat Armrest (Left) Armrest (Right) Wrench Bolt Cover Bolt M6X30MM Bolt M6X45MM Washer Back cushion Seat cushion STEP-BY-STEP ASSEMBLY: Attach seat panel (B) to armrests (C) and (D) with washers (F) and bolts (H) using wrench (E). Do not fully tighten bolts until the end of step 3.
Page 4 STEP-BY-STEP ASSEMBLY: Insert the pegs of bak panel (A) into the seat panel. Attach the back panel (A) to armrests (C) and (D) with washers (J) and bolts (I). Fully tighten all the bolts and cover them with bolt caps (F). Place cushions on the chair.
