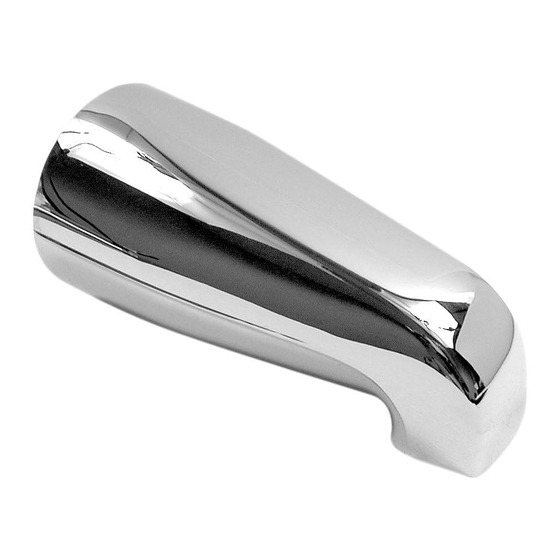

Danco 80764 Step-By-Step Instructions

Download this manual

Step-By-Step Instructions

Replacing a Tub Spout is an easy project that you can definitely handle yourself. It's a great way

to upgrade the look of your bathroom or to repair a spout that has seen better days. There are

several different types of Tub Spouts. Here we are going to detail how to replace a ½" Copper Pipe

Slip Connection, which is the most popular type of connection. For other connections, be sure to

follow the manufacturer's directions for installing your Tub Spout.

Tools and supplies required: Phillips Screwdriver, Flat Head Screwdriver, Adjustable Pliers,

Fine Gauge Sandpaper

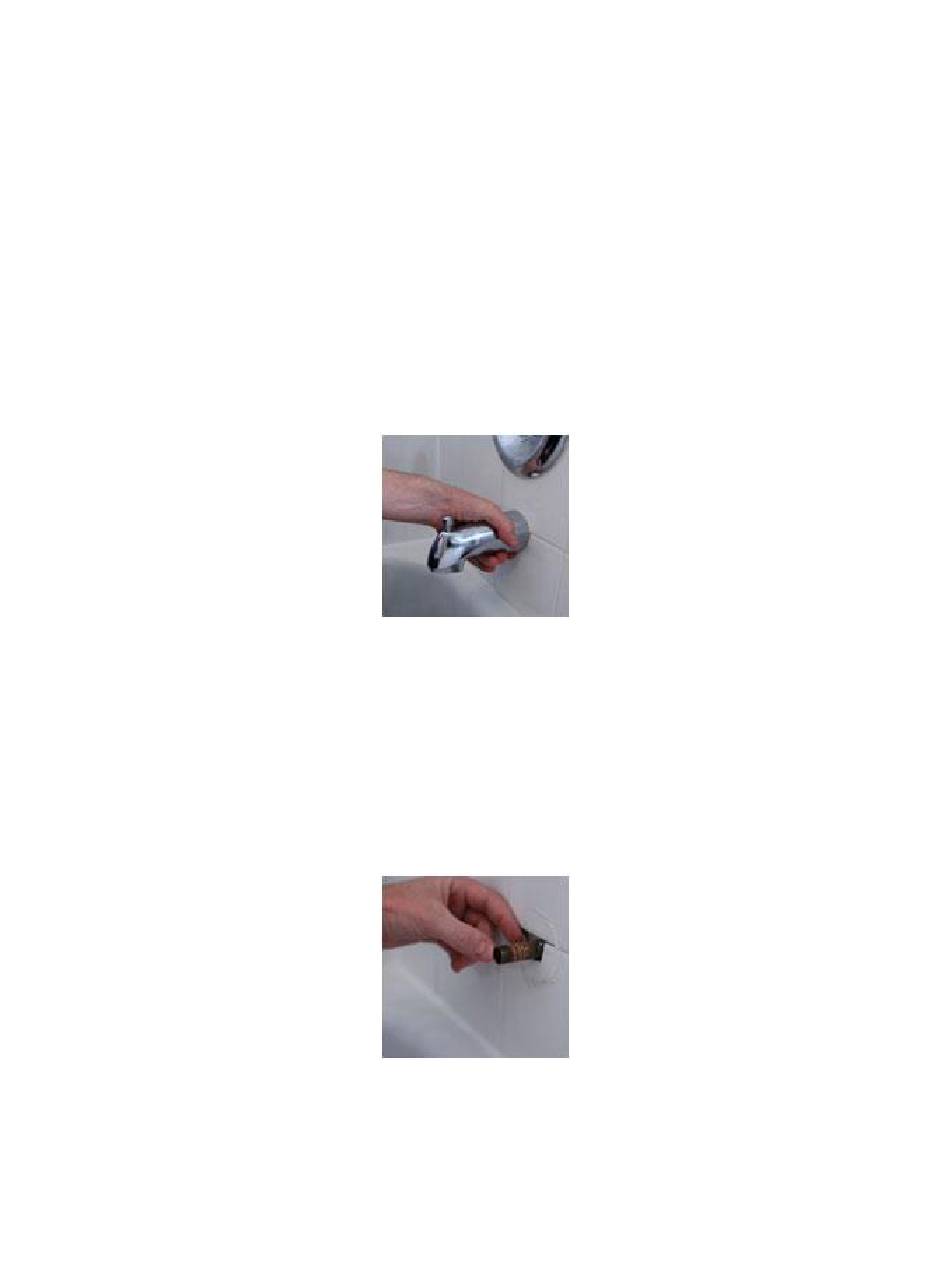

Turning counterclockwise, remove the old Tub Spout. If your Tub Spout has a set screw holding

it in place, be sure to remove that prior to rotating the Spout off. If your Tub Spout is hard to

remove, you may need to use the end of a hammer or large wrench to help loosen while turning.

Just insert the handle into the opening of the Tub Spout for leverage.

Measure the Stub Out Nipple length from the wall surface to the end of the Pipe. The Stub Out

Nipple must be between 2" and 3" long. The end of the Stub Out Nipple should be even.

Need help?

Do you have a question about the 80764 and is the answer not in the manual?

Page 1 Step-By-Step Instructions Replacing a Tub Spout is an easy project that you can definitely handle yourself. It’s a great way to upgrade the look of your bathroom or to repair a spout that has seen better days. There are several different types of Tub Spouts. Here we are going to detail how to replace a ½” Copper Pipe Slip Connection, which is the most popular type of connection.
Page 2 Use Sandpaper to remove burrs and sharp edges from the end of the Tubing and to polish the Tube surface to a smooth, bright copper color. Slide the Adapter onto the Stub Out Nipple with the threads toward the wall. Lubricate the Stub Out Nipple tubing about 1”...
Page 3 Slide the Extension Nipple onto the Stub Out Nipple and thread onto the Adapter aligning hole in the Extension Nipple with the slot in the Adapter. Turning clockwise, tighten the Extension Nipple onto the Adapter until the slot in the Adapter aligns with the hole in the Extension Nipple. Thread the Screw into the Retainer Ring.
Page 4 Turning clockwise, apply 6 to 8 turns of the Pipe Thread Tape to the threads on the Male end of Extension Nipple. Turning clockwise, tighten the new Spout onto the Extension Nipple. Turn water on and test for leaks. If water is leaking from the rear of the Tub Spout, reinstall, as this could damage your wall.
