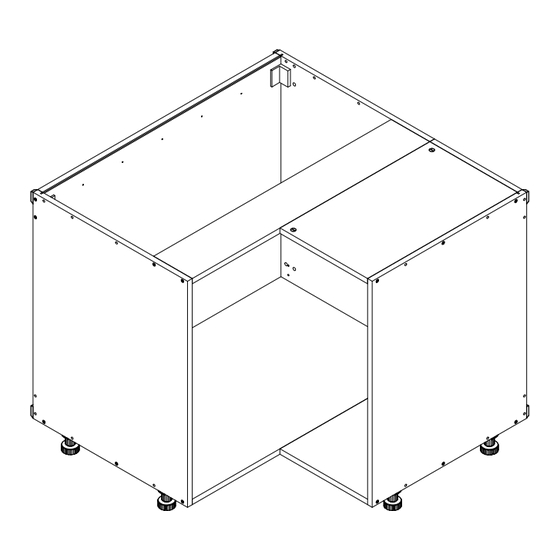

- Page 1 PRODUCT ASSEMBLY GUIDE CORNER-L CABINET UNI-D-CAB99-DOC006...
- Page 2 PRODUCT ASSEMBLY GUIDE: CORNER-L CABINET PAGE 1 / 15 English Important information. Read carefully. Follow each step of the instruction carefully. Keep this information for further reference. WARNING Serious or fatal crushing injuries can occur from furniture tip-over. To prevent this furniture from tipping over it must be permanently fixed to the wall with the included wall attachment devices.
-
Page 3: Hardware Required
PRODUCT ASSEMBLY GUIDE: CORNER-L CABINET PAGE 2 / 15 We’ve created this guide to help you assemble your new Reform cabinets in CORNER-L CABINET a quick and simple way. Please note that the assembly should be performed by qualified individuals. - Page 4 PRODUCT ASSEMBLY GUIDE: CORNER-L CABINET PAGE 3 / 15 Place 2 side panels on the floor. Insert 4 dowels using a hammer. Screw metal angle brackets that allow to fix the cabinet to the wall.
- Page 5 PRODUCT ASSEMBLY GUIDE: CORNER-L CABINET PAGE 4 / 15 0-1 mm / 0-3/64" Lift one side panel on the side so the groove is facing up. Slide the bottom part onto the dowels on the opposite side of where you attached the metal angle brackets. Screw the bottom part and make sure that the groove is aligned.
- Page 6 PRODUCT ASSEMBLY GUIDE: CORNER-L CABINET PAGE 5 / 15 0-1 mm / 0-3/64" Using dowels to guide you, slide the other panel and screw it to the stiffener and bottom. Lift the cabinet up.
- Page 7 PRODUCT ASSEMBLY GUIDE: CORNER-L CABINET PAGE 6 / 15 Option 1 (US market): Slide the back panel into the groove. Option 2 (EU market): Unfold the back panel and slide it into the groove.
- Page 8 PRODUCT ASSEMBLY GUIDE: CORNER-L CABINET PAGE 7 / 15 0-1 mm / 0-3/64" Install the stiffener in the back using 4 screws. Measure diagonals to make sure they are equal.
- Page 9 PRODUCT ASSEMBLY GUIDE: CORNER-L CABINET PAGE 8 / 15 Fix the back panel with the corner fixation hardware. Slide the plastic into the groove of the back panel and screw it in. See the illustrations above for placement. Remove the tape and attach 4 spacers on each corner.
- Page 10 PRODUCT ASSEMBLY GUIDE: CORNER-L CABINET PAGE 9 / 15 Cabinet inner width / 6 Knock in 5 nails per stiffener. See the illustration above for the nail placement. Place the remaining side panel on the floor. Insert 4 dowels using a hammer.
- Page 11 PRODUCT ASSEMBLY GUIDE: CORNER-L CABINET PAGE 10 / 15 Screw metal angle bracket that allow to fix the cabinet to the wall. 0-1 mm / 0-3/64" Lift the side panel on the side so the groove is facing up. Slide the bottom part onto the dowels on the opposite side...
- Page 12 PRODUCT ASSEMBLY GUIDE: CORNER-L CABINET PAGE 11 / 15 0-1 mm / 0-3/64" Using dowels to guide you screw the top to the side panel with 3 screws. 0-1 mm / 0-3/64" Screw the back panel to bottom and top part using 4 screws. Then lift it on the back of the side panel.
- Page 13 PRODUCT ASSEMBLY GUIDE: CORNER-L CABINET PAGE 12 / 15 Insert 6 dowels using a hammer. Screw the 5 connector screws into the large cabinet using your hands or a screwdriver.
- Page 14 PRODUCT ASSEMBLY GUIDE: CORNER-L CABINET PAGE 13 / 15 Using dowels to guide you, place the small cabinet on top and screw the 5 connector locks in. Remove the tape and attach 2 spacers on the corners.
- Page 15 PRODUCT ASSEMBLY GUIDE: CORNER-L CABINET PAGE 14 / 15 Install 9 leg parts. See illustrations above for placement. Use a hammer to knock the rest of the leg parts in. Then lift the cabinet up.
- Page 16 PRODUCT ASSEMBLY GUIDE: CORNER-L CABINET PAGE 15 / 15 You made it. See general installation guide on how to fix the cabinet to the wall. Screws need to be sourced separately by the mounter.
