PRODUCT ASSEMBLY GUIDE

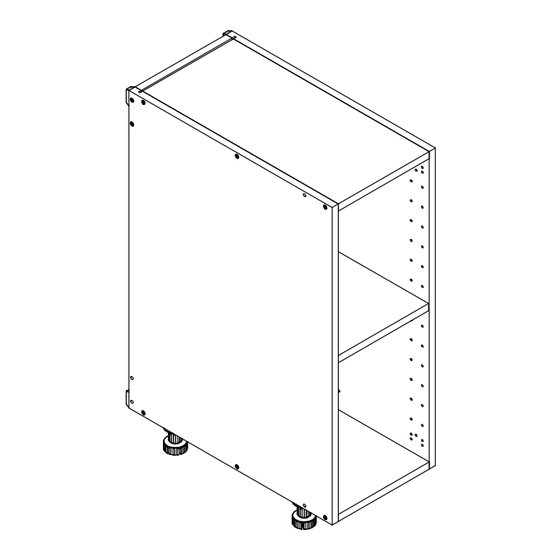

BASE CABINET
UNI-D-CAB99-DOC001

Advertisement

loading
Need help?

Need help?

Do you have a question about the BASE CABINET and is the answer not in the manual?

Questions and answers

Related Manuals for Reform BASE CABINET

Summary of Contents for Reform BASE CABINET

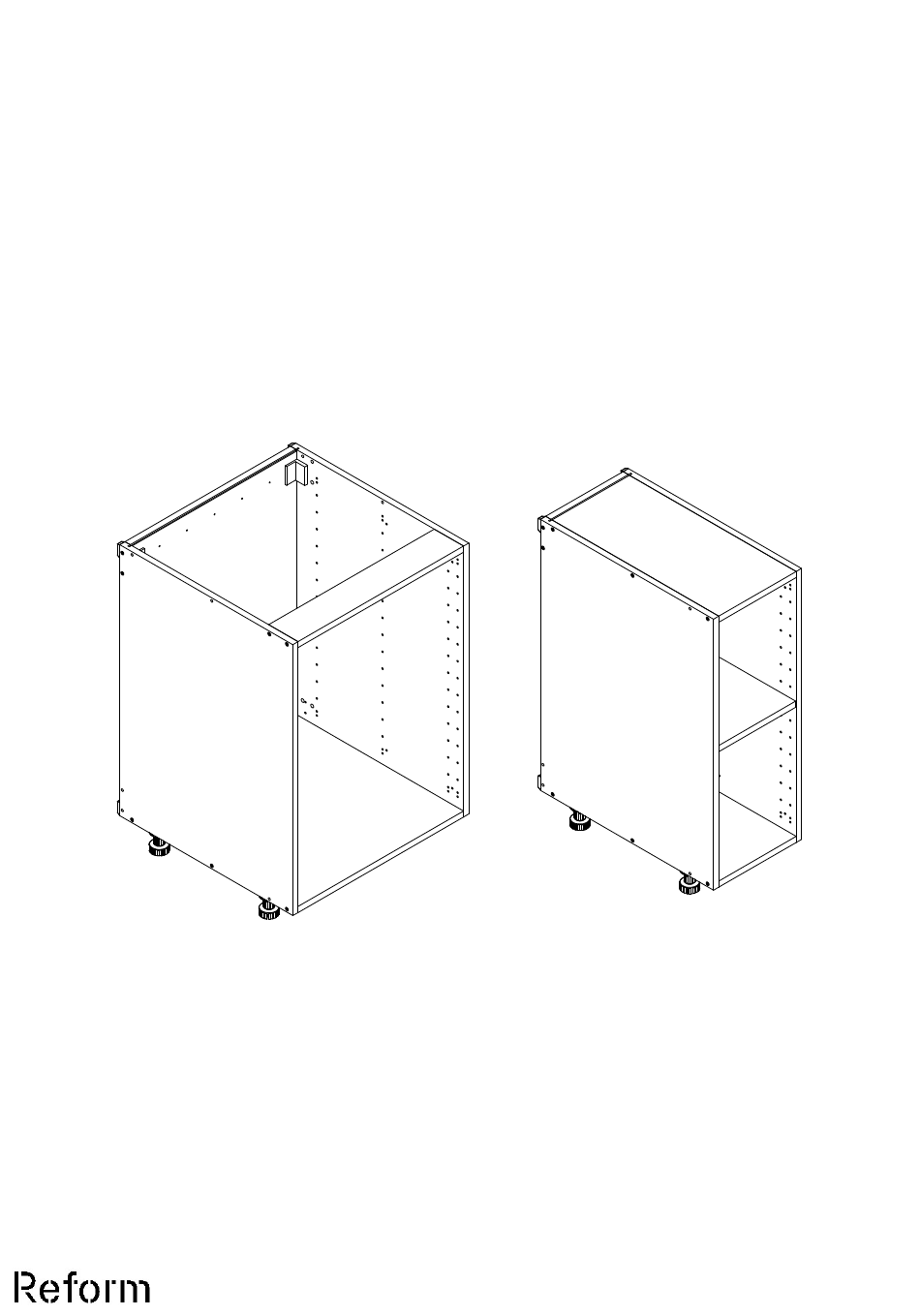

  • Page 1 PRODUCT ASSEMBLY GUIDE BASE CABINET UNI-D-CAB99-DOC001...
  • Page 2 PRODUCT ASSEMBLY GUIDE: BASE CABINET PAGE 1 / 15 English Important information. Read carefully. Follow each step of the instruction carefully. Keep this information for further reference. WARNING Serious or fatal crushing injuries can occur from furniture tip-over. To prevent this furniture from tipping over it must be permanently fixed to the wall with the included wall attachment devices.

  • Page 3: Base Cabinet

    PRODUCT ASSEMBLY GUIDE: BASE CABINET PAGE 2 / 15 We’ve created this guide to help you assemble your new Reform cabinets in BASE CABINET a quick and simple way. Please note that the assembly should be performed by qualified individuals.
  • Page 4 PRODUCT ASSEMBLY GUIDE: BASE CABINET PAGE 3 / 15 Option 1: Place both side panels on the floor. Insert 4 dowels using a hammer. Option 2 (for narrow cabinets): Place both side panels on the floor. Insert 8 dowels using a hammer.
  • Page 5 PRODUCT ASSEMBLY GUIDE: BASE CABINET PAGE 4 / 15 Screw metal angle brackets that allow to fix the cabinet to the wall. 0-1 mm / 0-3/64" Lift one side panel on the side so the groove is facing up. Identify the bottom part by the leg holes and slide it onto the dowels on the opposite side of where you attached the metal angle brackets.
  • Page 6 PRODUCT ASSEMBLY GUIDE: BASE CABINET PAGE 5 / 15 0-1 mm / 0-3/64" Option 1: Screw the stiffener to the side panel using 2 screws. 0-1 mm / 0-3/64" Option 2 (for narrow cabinets): Screw the top part to the side panel.
  • Page 7 PRODUCT ASSEMBLY GUIDE: BASE CABINET PAGE 6 / 15 0-1 mm / 0-3/64" Option 1: Using dowels to guide you, slide the remaining panel and screw it to the stiffener and bottom. 0-1 mm / 0-3/64" Option 1 (for narrow cabinets) : Using dowels to guide you, slide the remaining panel and screw it to the top and...
  • Page 8 PRODUCT ASSEMBLY GUIDE: BASE CABINET PAGE 7 / 15 Option 1: Slide the back panel into the groove. Option 2 (for wide cabinets): Lift the cabinet up, unfold the back panel and slide it into the groove.
  • Page 9 PRODUCT ASSEMBLY GUIDE: BASE CABINET PAGE 8 / 15 0-1 mm / 0-3/64" Option 1: Install the stiffener in the back using 4 screws. 0-1 mm / 0-3/64" Options 2 (for wide cabinets): Install the stiffener in the back using 4 screws. Then lay it back down.
  • Page 10 PRODUCT ASSEMBLY GUIDE: BASE CABINET PAGE 9 / 15 Measure diagonals to make sure they are equal. Fix the back panel with the corner fixation hardware. Slide the plastic into the groove of the back panel and screw it in. See the illustrations above for placement.
  • Page 11 PRODUCT ASSEMBLY GUIDE: BASE CABINET PAGE 10 / 15 Remove the tape and attach 4 spacers on each corner.
  • Page 12 PRODUCT ASSEMBLY GUIDE: BASE CABINET PAGE 11 / 15 Option 1: Use outer holes as a standard. Option 2: Use inner holes when the plinth is pushed inwards. Option 3 (for wide cabinets): Add 2 extra legs in the middle. See the illustration above for placement.
  • Page 13 PRODUCT ASSEMBLY GUIDE: BASE CABINET PAGE 12 / 15 Lift the cabinet up. Cabinet inner width / 6 Knock in 5 nails per stiffener. See the illustration above for the nail placement.
  • Page 14 PRODUCT ASSEMBLY GUIDE: BASE CABINET PAGE 13 / 15 If you have any shelves in your cabinet, install it now. You made it.
  • Page 15 PRODUCT ASSEMBLY GUIDE: BASE CABINET PAGE 14 / 15 See general installation guide on how to fix the cabinet to the wall. Screws need to be sourced separately by the mounter.
  • Page 16 PRODUCT ASSEMBLY GUIDE: BASE CABINET PAGE 15 / 15 OVEN UNIT AND PIPING Min. 50 mm Min. 50 mm Min. 1 31/32 inches Min. 1 31/32 inches Measure and make markings at least 50 mm / 1 31/32 inches from all corners.
