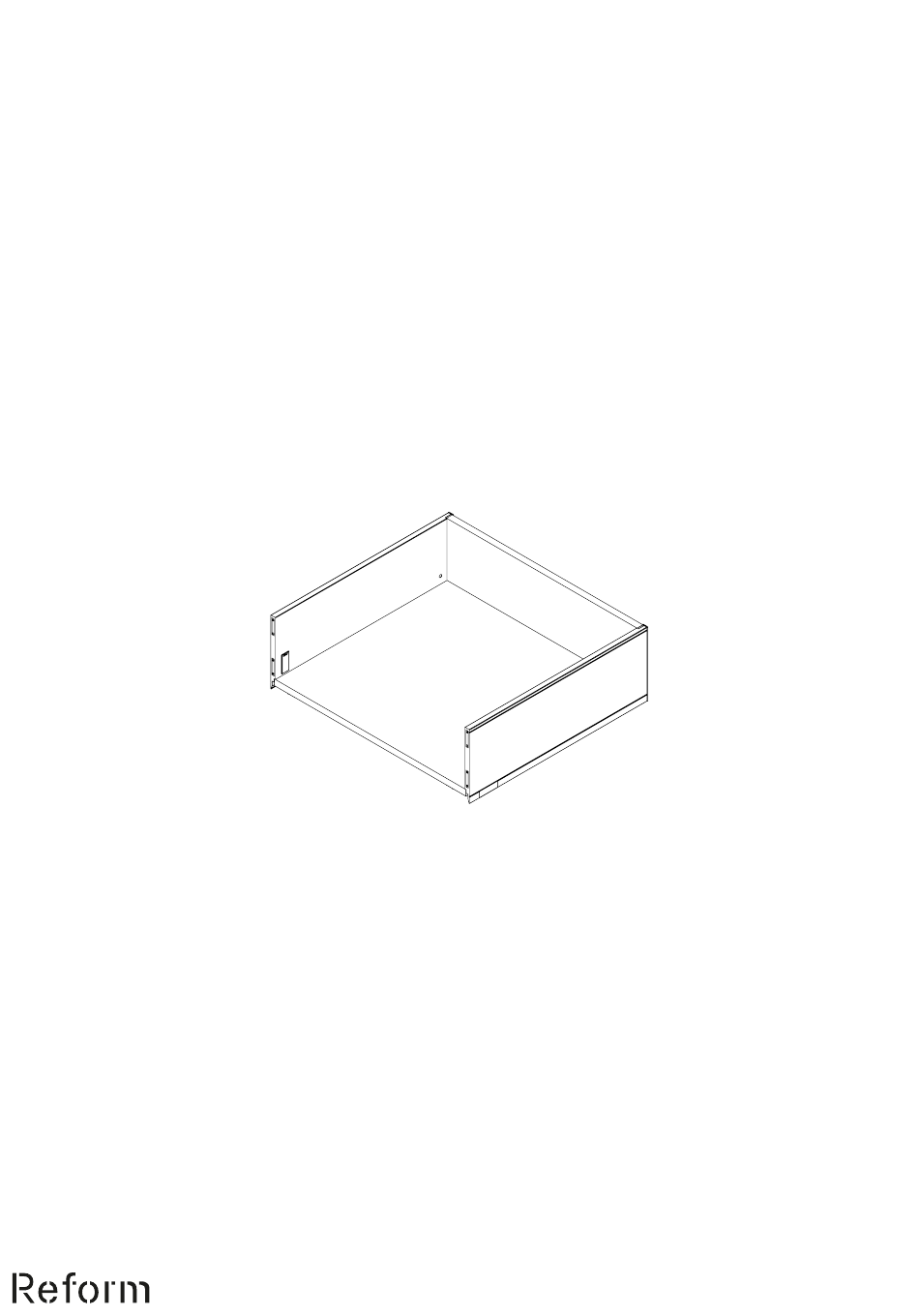

- Page 1 PRODUCT MANUAL STEEL DRAWER EUB-D-DBX99-DOC001...
- Page 2 PRODUCT MANUAL: STEEL DRAWER PAGE 1 / 17 English Important information. Read carefully. Follow each step of the instruction carefully. Keep this information for further reference. WARNING Serious or fatal crushing injuries can occur from furniture tip-over. To prevent this furniture from tipping over it must be permanently fixed to the wall with the included wall attachment devices.
- Page 3 PRODUCT MANUAL: STEEL DRAWER PAGE 2 / 17 INDEX INTRODUCTION DRAWER SLIDES TIP-ON / BLUMOTION INSTALLATION OF DRAWER BOX INSTALLATION OF INNER DRAWER BOX FINAL ADJUSTMENTS...
- Page 4 INTRODUCTION In the following pages, you’ll find easy-to-follow instructions with images that show you how to assemble your Reform steel drawers. The box is the same for the regular drawer box and the inner drawer box. The difference lies in the mounting of the fronts. The guide is divided into four sections:...
- Page 5 PRODUCT MANUAL: STEEL DRAWER PAGE 4 / 17 COUNTING ROWS This illustration shows how to count rows on the inside of the side of the cabinet.
- Page 6 PRODUCT MANUAL: STEEL DRAWER PAGE 5 / 17 DRAWER SLIDES PLACEMENTS 1 Below, you’ll find the five most common combinations. DRAWER SLIDES PLACEMENT 1. DRAWER SLIDES PLACEMENT 2. DRAWER SLIDES PLACEMENT 3. DRAWER SLIDES PLACEMENT 4. DRAWER SLIDES PLACEMENT 5.
- Page 7 PRODUCT MANUAL: STEEL DRAWER PAGE 6 / 17 DRAWER SLIDES PLACEMENTS 2 Below, you’ll find the five most common combinations. DRAWER SLIDES PLACEMENT 1. DRAWER SLIDES PLACEMENT 2. DRAWER SLIDES PLACEMENT 3. DRAWER SLIDES PLACEMENT 4. DRAWER SLIDES PLACEMENT 5.
- Page 8 PRODUCT MANUAL: STEEL DRAWER PAGE 7 / 17 MOUNTING DRAWER SLIDES Make sure that you use the right drawer slide hole when you mount the slide on the cabinet. Note that drawer slides for inner drawers are mounted differently. FOR THE CABINET WITH A DEPTH OF 60 CM...
- Page 9 PRODUCT MANUAL: STEEL DRAWER PAGE 8 / 17 MOUNTING DRAWER SLIDES Make sure that you use the right drawer slide hole when you mount the slide on the cabinet. Note that drawer slides for inner drawers are mounted differently. FOR THE CABINET WITH A DEPTH OF 37 CM...
- Page 10 PRODUCT MANUAL: STEEL DRAWER PAGE 9 / 17 TIP-ON / BLUMOTION If you’ve acquired push-function for your drawers, follow the instructions outlined below. If you’d like more in-depth information on TIP-ON BLUMOTION technology, we recommend visiting the Legrabox drawer manufacturer, Blum: https://www.blum.com/su/en/products/motion-technologies/tip-on-blumotion/...
- Page 11 PRODUCT MANUAL: STEEL DRAWER PAGE 10 / 17 INSTALLATION OF DRAWER BOX In the following pages, you’ll find instructions for mounting these combinations: Low drawer box + 10 cm / 15 cm / 20 cm front Medium drawer box + 20 cm / 40 cm front...
- Page 12 PRODUCT MANUAL: STEEL DRAWER PAGE 11 / 17 MOUNTING DRAWER FRONTS Please note that the fronts should be mounted according to the specific dra- wer location in the cabinet. This is to ensure that the fronts will fit perfectly. GENERAL INTRODUCTION If you’d like more in-depth information on fronts mounting, we recommend...
- Page 13 PRODUCT MANUAL: STEEL DRAWER PAGE 12 / 17 MOUNTING DRAWER FRONTS LOW DRAWER + 10 CM FRONT Front size 10 cm 15 cm 20 cm 40 cm 60 / 80 cm Drawer – – The drawer can be positioned in the darker area Bottom drawer not available DRAWER FRONT POSITIONED IN THE TOP: 1ST HOLE AND 2ND DOT FROM THE BOTTOM.
- Page 14 PRODUCT MANUAL: STEEL DRAWER PAGE 13 / 17 MOUNTING DRAWER FRONTS LOW DRAWER + 15 CM FRONT The drawer can be positioned in the darker area The drawer can be positioned in the darker area DRAWER FRONT POSITIONED IN THE BOTTOM: DRAWER FRONT POSITIONED IN THE MIDDLE: 1ST DOT AND 2ND HOLE COUNTING FROM THE BOTTOM.
- Page 15 PRODUCT MANUAL: STEEL DRAWER PAGE 14 / 17 MOUNTING DRAWER FRONTS MEDIUM DRAWER + 20 CM FRONT Front size 10 cm 15 cm 20 cm 40 cm 60 / 80 cm Drawer Medium – – – The drawers can be positioned in the darker area DRAWER FRONT POSITIONED IN THE MIDDLE AND TOP: 2ND AND 6TH HOLE COUNTING FROM THE BOTTOM.
- Page 16 PRODUCT MANUAL: STEEL DRAWER PAGE 15 / 17 MOUNTING DRAWER FRONTS MEDIUM DRAWER + 40 CM FRONT The drawer can be positioned in the darker area DRAWER FRONT POSITIONED IN THE TOP: 1ST AND 3RD HOLE COUNTING FROM THE BOTTOM.
- Page 17 PRODUCT MANUAL: STEEL DRAWER PAGE 16 / 17 MOUNTING DRAWER FRONTS HIGH DRAWER + 40 CM FRONT Front size 10 cm 15 cm 20 cm 40 cm 60 / 80 cm Drawer High – – – The drawer can be positioned...
- Page 18 PRODUCT MANUAL: STEEL DRAWER PAGE 17 / 17 INSTALLATION OF INNER Inner drawer fronts come in one size. DRAWER BOX OVERVIEW MEDIUM HIGH MOUNTING OF INNER DRAWER FRONTS Click NOTE THAT THE BRACKETS ARE ALREADY MOUNTED TO THE FRONT BEFORE YOU MOUNT THE INNER DRAWER FRONTS.
- Page 19 PRODUCT MANUAL: STEEL DRAWER PAGE 18 / 17 FINAL ADJUSTMENTS If you’d like more in-depth information on adjustments, we recommend visiting the Legrabox drawer manufacturer, Blum: https://www.blum.com/fi/ MOUNTING / UNMOUNTING en/products/boxsystems/legrabox/assembly/ IT’S TIME TO MOUNT YOUR DRAWER ONTO THE RUNNER. FOLLOW THE INSTRUCTIONS ABOVE.
- Page 20 PRODUCT MANUAL: STEEL DRAWER PAGE 19 / 17 FINAL ADJUSTMENTS In case you need to make adjustments to your drawer position, follow the instructions below. DRAWER ADJUSTMENT / TIP-ON BLUMOTION If you’d like more in-depth information on adjustments, we recommend visiting the Legrabox drawer manufacturer Blum: https://www.blum.com/fi/en/...
