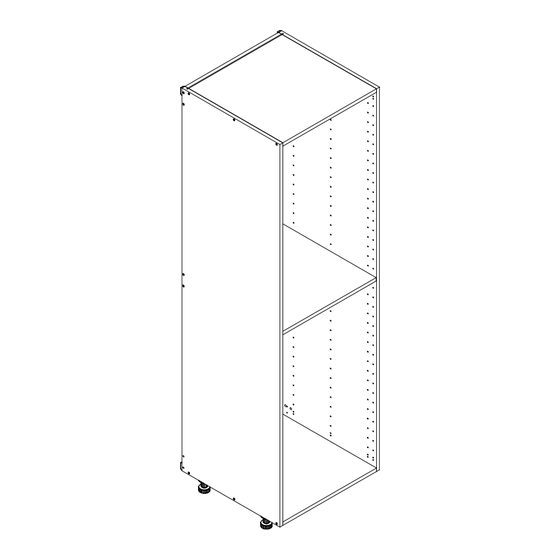

Reform HIGH CABINET Product Assembly Manual
  1. Manuals
  2. Brands
  3. Reform Manuals
  4. Indoor Furnishing
  5. HIGH CABINET
  6. Product assembly manual

Reform HIGH CABINET Product Assembly Manual

Hide thumbs Also See for HIGH CABINET:

Advertisement

Quick Links

Download this manual

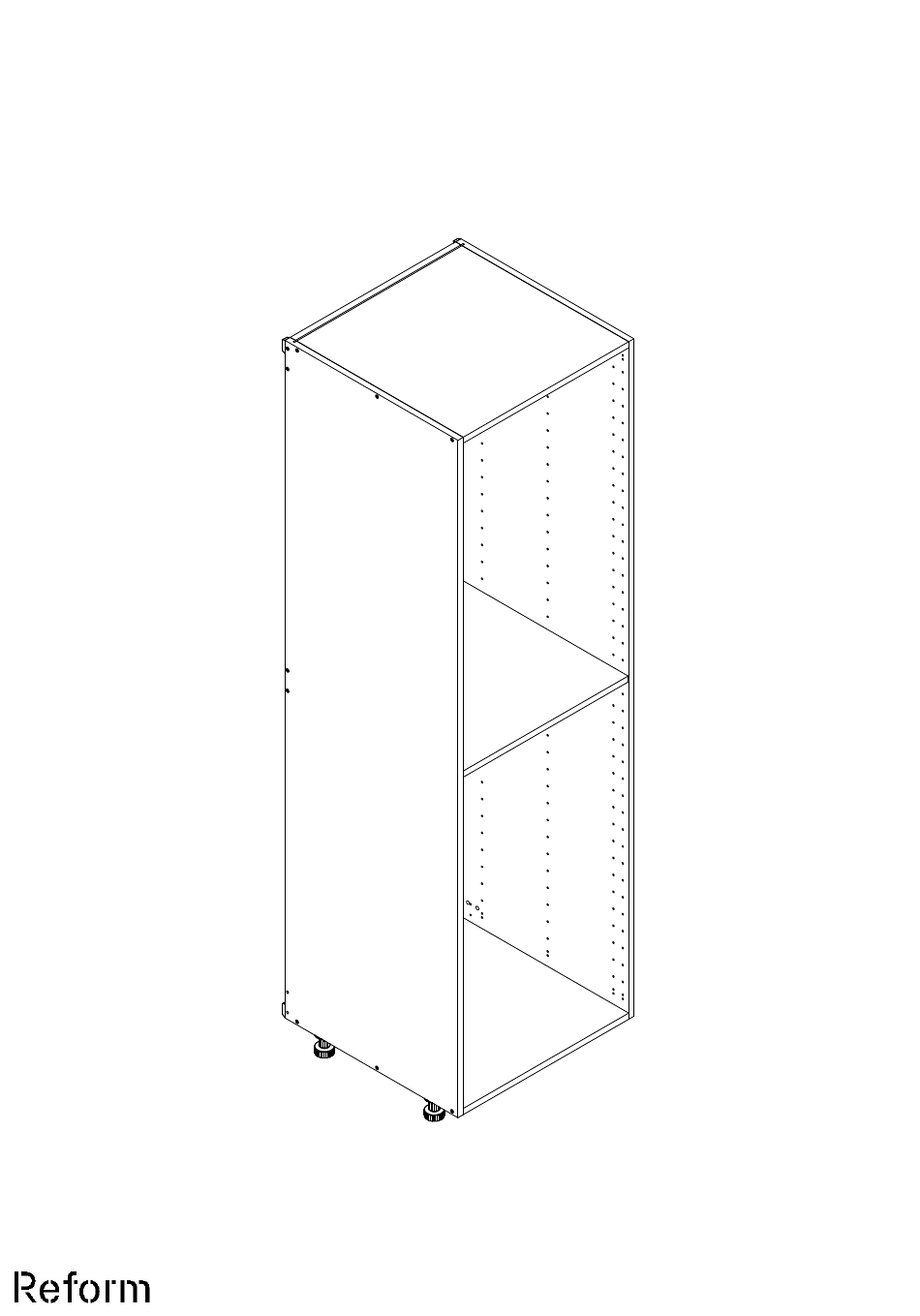

PRODUCT ASSEMBLY GUIDE
HIGH CABINET
UNI-D-CAB99-DOC003

Advertisement

loading
Need help?

Need help?

Do you have a question about the HIGH CABINET and is the answer not in the manual?

Questions and answers

Related Manuals for Reform HIGH CABINET

Summary of Contents for Reform HIGH CABINET

  • Page 1 PRODUCT ASSEMBLY GUIDE HIGH CABINET UNI-D-CAB99-DOC003...
  • Page 2 PRODUCT ASSEMBLY GUIDE: HIGH CABINET PAGE 1 / 12 English Important information. Read carefully. Follow each step of the instruction carefully. Keep this information for further reference. WARNING Serious or fatal crushing injuries can occur from furniture tip-over. To prevent this furniture from tipping over it must be permanently fixed to the wall with the included wall attachment devices.

  • Page 3: Hardware Required

    PRODUCT ASSEMBLY GUIDE: HIGH CABINET PAGE 2 / 12 We’ve created this guide to help you assemble your new Reform cabinets in HIGH CABINET a quick and simple way. Please note that the assembly should be performed by qualified individuals.
  • Page 4 PRODUCT ASSEMBLY GUIDE: HIGH CABINET PAGE 3 / 12 Place both side panels on the floor. Insert dowels using a hammer. Screw metal angle brackets that allow to fix the cabinet to the wall.
  • Page 5 PRODUCT ASSEMBLY GUIDE: HIGH CABINET PAGE 4 / 12 0-1 mm / 0-3/64" Lift one side panel on the side so the groove is facing up. Identify the bottom part by the leg holes and slide it onto the dowels on the opposite side of where you attached the metal angle brackets. Screw the bottom part using 3 screws.
  • Page 6 PRODUCT ASSEMBLY GUIDE: HIGH CABINET PAGE 5 / 12 0-1 mm / 0-3/64" Using dowels to guide you, slide the remaining panel and screw it to the top and bottom parts using 6 screws.
  • Page 7 PRODUCT ASSEMBLY GUIDE: HIGH CABINET PAGE 6 / 12 Option 1: Slide the back panel into the groove. Option 2 (for wide cabinets): Lift the cabinet up, unfold the back panel and slide it into the groove.
  • Page 8 PRODUCT ASSEMBLY GUIDE: HIGH CABINET PAGE 7 / 12 0-1 mm / 0-3/64" Option 1: Install the stiffeners in the back using 4 screws for each. 0-1 mm / 0-3/64" Options 2 (for wide cabinets): Install the stiffeners in the back using 4 screws for each. Then lay it back down.
  • Page 9 PRODUCT ASSEMBLY GUIDE: HIGH CABINET PAGE 8 / 12 Measure diagonals to make sure they are equal. Fix the back panel with the corner fixation hardware. Slide the plastic into the groove of the back panel and screw it in. See the illustrations above for placement.
  • Page 10 PRODUCT ASSEMBLY GUIDE: HIGH CABINET PAGE 9 / 12 Remove the tape and attach 4 spacers on each corner.
  • Page 11 PRODUCT ASSEMBLY GUIDE: HIGH CABINET PAGE 10 / 12 Option 1: Use outer holes as a standard. Option 2: Use inner holes when the plinth is pushed inwards. Option 3 (for wide cabinets): Add 2 extra legs in the middle. See the illustration above for placement.
  • Page 12 PRODUCT ASSEMBLY GUIDE: HIGH CABINET PAGE 11 / 12 Lift the cabinet up. Cabinet inner width / 6 Knock in 5 nails per stiffener. See the illustration above for the nail placement.
  • Page 13 PRODUCT ASSEMBLY GUIDE: HIGH CABINET PAGE 12 / 12 If you have any shelves in your cabinet, install it now. Turn right to lock. Repeat it for all the fasteners. See general installation guide on how to fix the cabinet to the wall. Screws need to be You made it.
