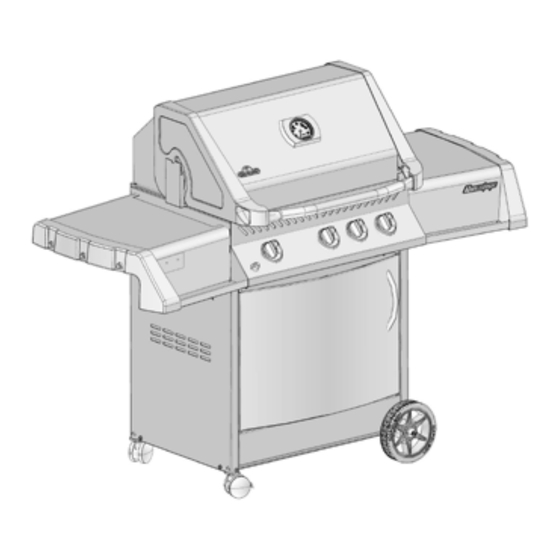

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Napoleon PT450RBI Owner's Manual Shop genuine replacement parts for Napoleon PT450RBI Find Your Napoleon Grill Parts - Select From 264 Models -------- Manual continues below --------...
- Page 2 Notice to Installer: Leave these instructions with the grill owner for future reference. Manufactured by: Napoleon Appliance Corp., 214 Bayview Dr., Barrie, Ontario, Canada L4N 4Y8 Phone: (705)726-4278 Fax: (705)725-2564 email: wecare@napoleonproducts.com web site: www.napoleongrills.com...
-
Page 3: Conditions And Limitations
NAPOLEON will not be responsible for the installation, labor or any other costs or expenses related to the re-installation of a warranted part, and such expenses are not covered by this warranty. -
Page 4: Safe Operating Practices
WARNING! Failure to follow these instructions could result in property damage, personal injury or death. Read and follow all warnings and instructions in this manual prior to operating grill. Safe Operating Practices • This gas grill must be assembled exactly according to the instructions in the manual. If the grill was store assembled, you must review the assembly instructions to confirm correct assembly and perform the required leak tests before operating the grill. -
Page 5: General Information
General Information This Gas Barbecue Is Certified Under Canadian And American National Standards,CSA 1.6-2007 and ANSI Z21.58-2007 respectively for Outdoor Gas Grills and should be installed to conform with local codes. In absence of local codes, install to the current CAN/CSA-B149.1 Propane Installation Code in Canada or to the National Fuel Gas Code, ANSI Z223.1 in the United States. -
Page 6: Leak Testing Instructions
Bubbles will indicate a gas leak. Either tighten the loose joint or have the part replaced with one recommend- ed by the Napoleon Customer Care department and have the grill inspected by a certified gas installer. If the leak cannot be stopped, immediately shut off the gas supply, disconnect it, and have the grill inspected by a certified gas installer or dealer. -
Page 7: Lighting Instructions
Lighting Instructions Rear Burner Lighting Hole Right Burner/Infrared Burner Centre Burner Left Burner Igniter Off Position WARNING! Open lid WARNING! Ensure all burner controls are in the off position. Slowly turn on the gas supply valve. Main Tube Burner Rear Burner Lighting Main Infrared Side Burner Lighting (optional) -
Page 8: Cooking Instructions
Should a flare-up occur, move food away from the flames and reduce the heat. Leave the lid open. See Your All Season Grill cookbook by Napoleon for more detailed instructions. Infrared Main Burner Use: Follow the Infrared Burner Ignition procedures and operate on high for 5 minutes with the lid closed or until the ceramic burners glow red. - Page 9 Any juices or oils that escape from the food drip onto the charcoal and vaporize into smoke giving the food its delicious grilled taste. The Napoleon infrared burner cooks in the same way. In each burner, 10,000 ports –...
-
Page 10: Cleaning Instructions
Cleaning The Outer Grill Surface: Do not use abrasive cleaners or steel wool on any painted, porcelain or stain- less steel parts of your Napoleon Grill. Doing so will scratch the finish. Exterior grill surfaces should be cleaned with warm soapy water while the metal is still warm to the touch. To clean stainless surfaces, use a stainless steel or a non-abrasive cleaner. -
Page 11: Maintenance Instructions
Maintenance Instructions We recommend this gas grill be thoroughly inspected and serviced annually by a qualified service person. WARNING! Always wear protective gloves and safety glasses when cleaning your grill. WARNING! Turn off the gas at the source and disconnect the unit before servicing. To avoid the pos- sibility of burns, maintenance should be done only when the grill is cool. - Page 12 WARNING! Hose: Check for abrasions, melting, cuts, and cracks in the hose. If any of these conditions exist, do not use the gas grill. Have the part replaced by your Napoleon Gas Grill dealer or qualified gas installer. Aluminum Castings: Clean castings periodically with warm soapy water. Aluminum will not rust, but high temperatures and weathering can cause oxidation to occur on aluminum surfaces.
-
Page 13: Troubleshooting
Troubleshooting Problem Possible Causes Solution Low heat / Low flame For propane - improper lighting procedure. Ensure lighting procedure is followed carefully. when valve turned to high. All gas grill valves must be in the off position when the tank valve is turned on. Turn tank on slowly to allow pressure to equalize. - Page 14 Cracked ceramic tile. Allow burner to cool and inspect very closely for cracks. If any cracks are found, contact your authorized Napoleon dealer to order a replacement burner assembly. Leaking gasket surrounding the ceramic Contact your authorized Napoleon dealer for tile, or a weld failure in the burner housing.
-
Page 15: Getting Started
CAUTION! During unpacking and assembly we recommended you wear work gloves and safety glasses for your protection. Although we make every effort to make the assembly process as problem free and safe as possible, it is characteristic of fabricated steel parts that the edges and corners might be sharp and could cause cuts if handled incorrectly. - Page 16 2 X N570-0026 (#14 x 1/2”) 3/8”(10mm) If necessary the center panel can be tapped down with a rubber mallet. Si nécessaire, le panneau central peut être enfoncé avec un maillet en caoutchouc. 4 X N570-0026 (#14 X1/2”) 3/8”(10mm) www.napoleongrills.com...
- Page 17 2 x N570-0026 (#14 x 1/2”) 3/8”(10mm) If necessary the cross beam can be tapped down with a rubber mallet. Si nécessaire, le barre de traverse peut être enfoncé avec un maillet en caoutchouc. 4 x N570-0026 (#14 x 1/2”) 3/8”(10mm) Propane Only Propane Seulement...
- Page 18 1 x N485-0009 Insert push If necessary the pin here magnet bracket can be tapped Insérez la down with a goupille- rubber mallet. poussoir ici. Si nécessaire, le support à aiment peut être enfoncé avec un maillet en caoutchouc. www.napoleongrills.com...
- Page 19 4 x N570-0026 (#14 x 1/2”) 3/8”(10mm) Two people are required for this step. Deux personnnes son nécessaires pour cette étappe. 2 x N570-0026 (#14 x 1/2”) 3/8”(10mm) Propane Only Propane Seulement www.napoleongrills.com...
- Page 20 disposable grease tray jetable du récipient à graisse 1 x N570-0026 (#14 x 1/2”) 3/8”(10mm) www.napoleongrills.com...
- Page 21 4 x N570-0029 (1/4-20 X 3/8”) 3/8”(10mm) 4 x N735-0002 (1/4”) www.napoleongrills.com...
- Page 22 10 x N570-0076 (#8 X1/2”) 3/8”(10mm) 4 x N570-0026 (#14 X1/2”) Twist tab to lock in place. Tournez la patte pour verrouiller. www.napoleongrills.com...
- Page 23 N305-0021 N305-0022 Ensure holes in sear plates are postitoned to the front of the grill. Assurez-vous que les trous dans les plaques de brûleur soient placés à l’avant du gril. www.napoleongrills.com...
- Page 24 Rotisserie Kit Assembly Instruction (included with most rear burner units) Assemble rotisserie kit components as shown. Instructions D’assemblage De L’ensemble De Rôtissoire (inclus avec la plupart des appareils avec brûleur arrière) Assemblez les composantes de la rôtissoire tel qu’illustré. Ensure stop bushing is tightened on the inside of hood casting.
- Page 25 Propane Only – Proper Hose Connection Propane Seulement - Branchement Adéquat Du Boyau WARNING! Ensure the hose does not contact any high temperature surfaces, or it may melt and leak causing a fire. AVERTISSEMENT! Assurez-vous que le boyau ne touche à aucune surface à haute température sinon il risque de fondre, de provoquer une fuite et causer un feu.
- Page 26 WARNING – FIRE HAZARD ATTENTION - RISQUE D’INCENDIE WARNING! Do not route hose underneath drip pan. AVERTISSEMENT! Ne pas passer le tuyau d’alimentation sous le tiroir d’égouttement afin de garder. WARNING! Hose must be routed through right side panel only. Do not route hose through left side panel and underneath drip pan.
- Page 27 Bubbles will indicate a gas leak. Either tighten the loose joint or have the part replaced with one recommended by the Napoleon Customer Care department and have the grill inspected by a certified gas installer. If the leak cannot be stopped, immediately shut off the gas supply, disconnect it, and have the grill inspected by a certified gas installer or dealer.

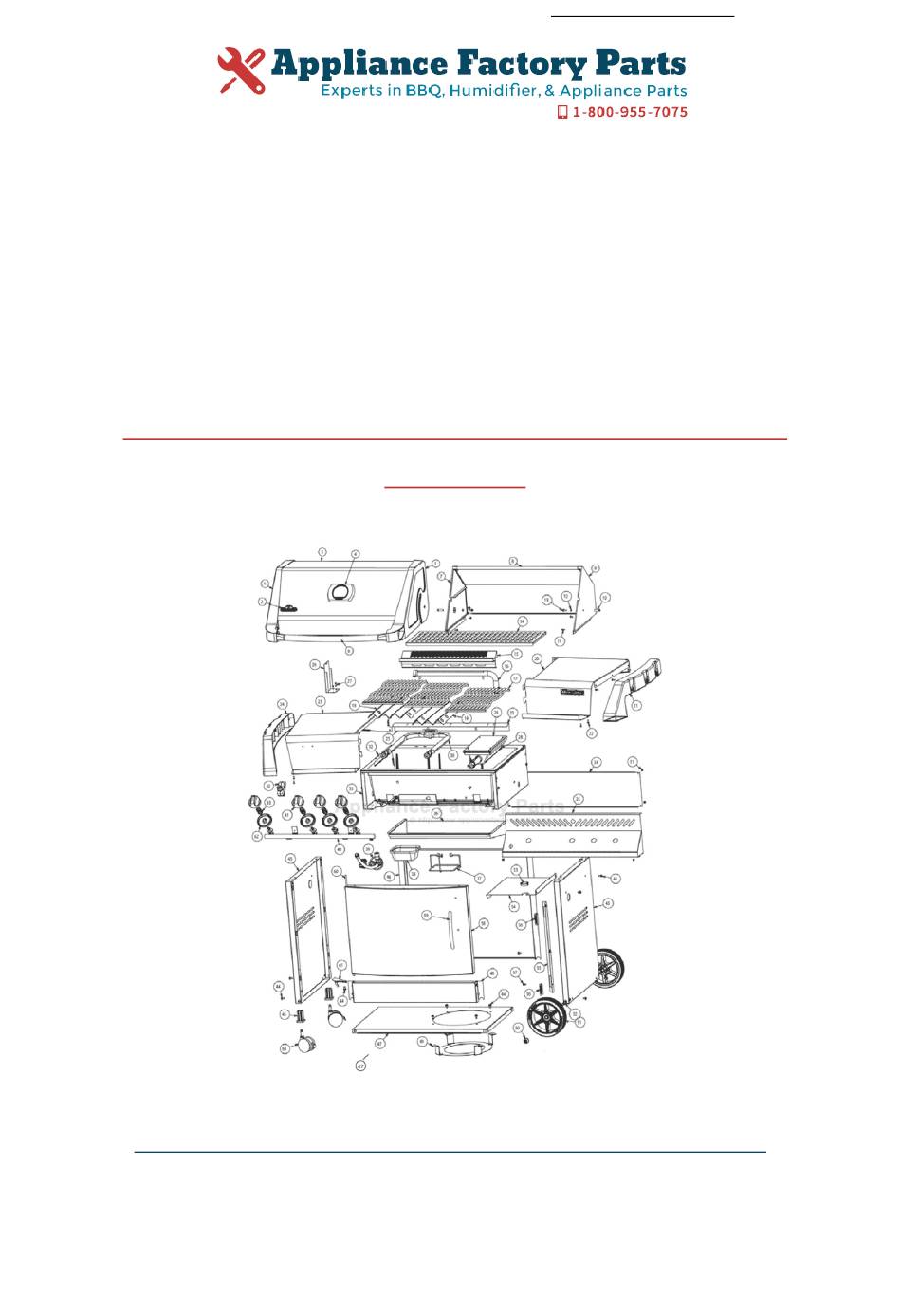

- Page 28 Part # Description 450RBI n135-0020g left side lid casting / moulage gauche du couvercle n385-0129 NAPOLEON logo/ logo NAPOLEON w450-0005 logo spring clips / écrous à ressort pour logo n510-0002 black silicone lid bumper / pare-chocs du couvercle (silicone noir) n010-0435...
- Page 29 Parts List / Liste Des Pièces Item Part # Description 450RBI n010-0218l manifold assembly / ensemble du collecteur n010-0219l manifold assembly / ensemble du collecteur n380-0015 burner control knob / bouton de contrôle n380-0015r burner control knob red / bouton de contrôle rouge n357-0015 electronic ignition / allumeur électronique n475-0222g...
- Page 30 www.napoleongrills.com...
