Technical Support and E-Warranty Certificate
www.vevor.com/support

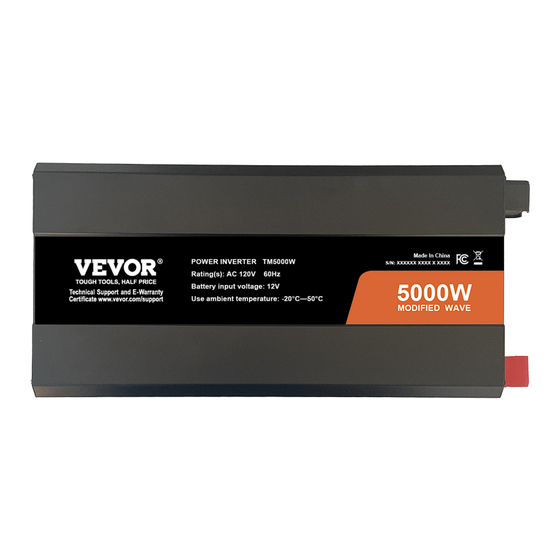

POWER INVERTER
MODEL: TM5000W
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Related Manuals for VEVOR TM5000W
Summary of Contents for VEVOR TM5000W
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support POWER INVERTER MODEL: TM5000W We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us.
-
Page 2: Power Inverter
This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product. - Page 3 Warning-To reduce the risk of injury, user must read instructions manual carefully. This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol.
-
Page 4: Product Description
Product Description. This high frequency inverter has adopted SPWM technology, and it's highly efficient and reliable. Product passed lS09001:2000. However, improper operation or misuse may still cause injury or loss, instruction and information provided in this manual must be followed all the time. - Page 5 3.Over-temperature protection: when the inside temperature of the inverter reaches 80℃, the RED indication light will be on. The inverter will stop working, once the temperature drops to accepted level, the inverter will automatically resume working. 4.Low voltage protection: when the battery voltage is below the setting level, the inverter will send alarm by beeping.
- Page 6 Precautions The inverters are designed, manufactured and tested as per safety standards.However, as an electrical and electric product, it must be installed, operated and maintained strictly according to the related safety instructions as follows: 1.Reverse connection between the inverter and battery is strictly prohibited,it will burn the fuse of the inverter.
-
Page 7: Troubleshooting
Troubleshooting. When there is no output, please check the following: 1.Excessive use of electrical appliances, too heavy load. Solution: Reduce electrical appliances, the use of electrical total power should be less than the inverter rated power. 2.Overheat protection. WORKAROUND: Reduce load cooling and restart after 15 minutes. - Page 8 Panel diagram. ① Enter the battery voltage. ② The frequency of the output voltage. ③ Product Output Voltage. ④ Battery power. ⑤ Product power. ⑥ Product Waveform. ⑦ Turn on the load prompt. ⑧ Working status. ⑨ High voltage/low voltage protection. - 7 -...
- Page 9 Instructions for use of the wireless remote control. The inverter can be switched on and off remotely via a wireless remote control. Retract the antenna, pull out all the antennas when in use, and push the antenna when not in use.
- Page 10 Manufacturer: Shanghaimuxinmuyeyouxiangongsi Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN. Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730 E-CrossStu GmbH Mainzer Landstr.69, 60329 Frankfurt am Main. YH CONSULTING LIMITED.
- Page 12 Technical Support and E-Warranty Certificate www.vevor.com/support...
