715 XS VALVE WITH T15 ELECTRICAL ACTUATOR
FEATURES

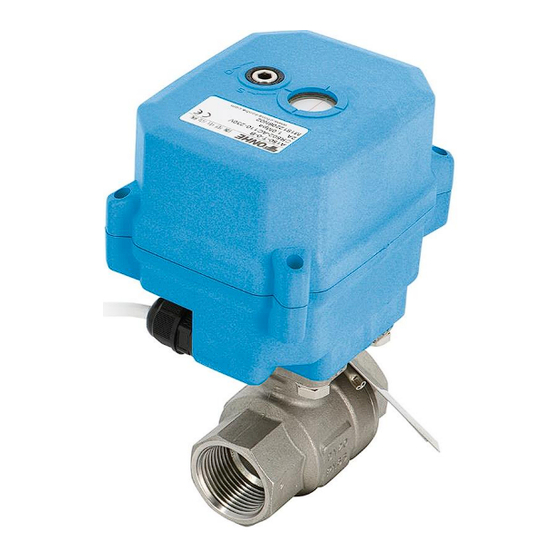

The 715XS+TCR 2-way stainless steel ball valve is designed for the automatic shut-off of pipes with non-loaded
industrial fluids. It is a full-bore valve with an antistatic device. It is EC-approved. The ISO 5211 mounting pad
enables the TCR actuator to be directly assembled. The latter is suitable for S4-30-type light service factors
installed indoors or outdoors under shelter. 2-wire wiring - Return via capacitor
AVAILABLE MODELS
1.4408 stainless steel body.
1/2'' to 1'' diameters.
G thread connections
Supply voltages: 12-24V AC-DC and 110-230 V AC
LIMITS OF USE
Fluid pressure: PS
Fluid temperature: WT
Ambient temperature
Service factor
80
70
60
50
40
30
Operating range
20
10
0
-10
0
20
40
DIRECTIVES AND MANUFACTURING STANDARDS
OBJECT
Pressure Equipment Directive
2014/68/EC
Size
Steel grades
Information given as an indication only, and subject to possible modifications
63 bar (20°C)
- 10°C / +180°C
- 15°C / + 50°C
S4 – 30 %
60
80 100 120 140 160 180
Temperature (°C)
Standard
1/2'' to 1": not subject
1''1/4 to 3'': category III
EN 12516-1
EN 1503-1
SECTORIEL S.A.
45 rue du Ruisseau
38290 SAINT QUENTIN-FALLAVIER – FRANCE
Telephone: +33 4 74 94 90 70 - Fax: +33 4 74 94 13 95
www.sectoriel.fr
/ Email : sectoriel@sectoriel.fr
ISO
3.1
9001
.
Cert
ON
OBJECT
Final test
TÜV 0035
Material certificate
Motorisation
connection
Pages
Ref.
Rev.
Date
IP
67
0035
Standard
NKS 12266
NKS 10204
ISO 5211:
1/6
FT715XS+T15 ENG
02
06/2020
