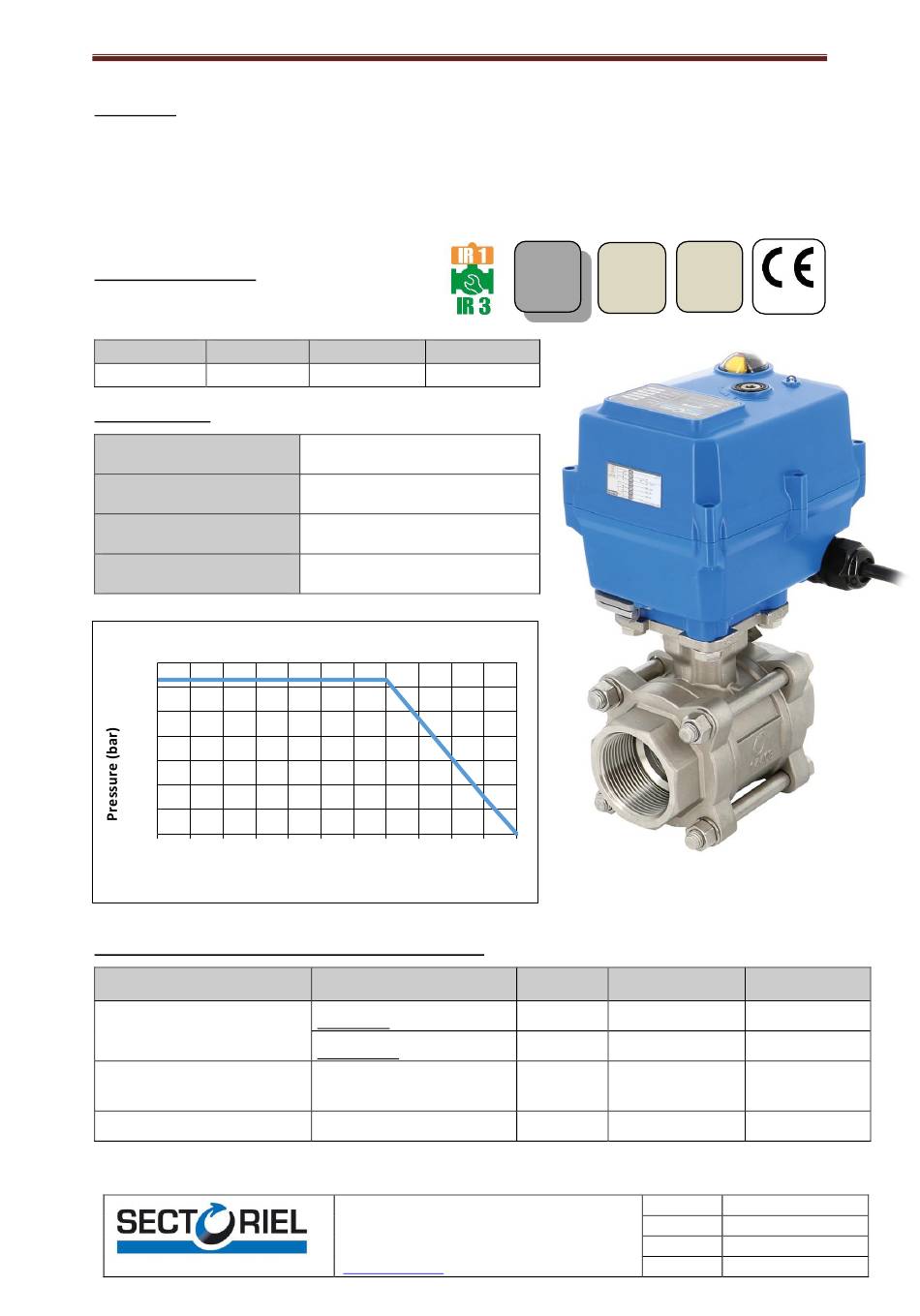

746 XS VALVE WITH TCR ACTUATOR
FEATURES

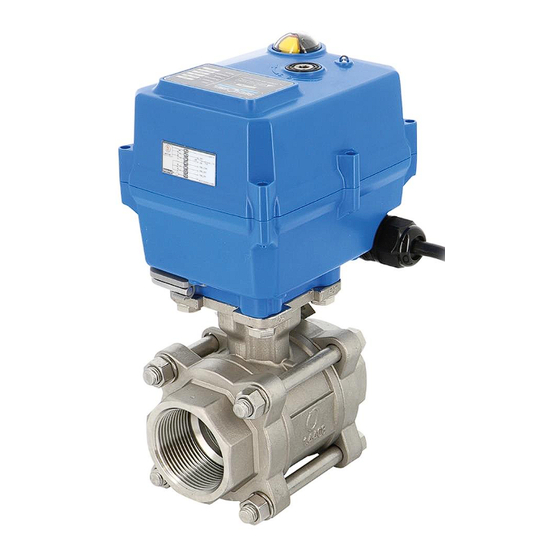

746XS stainless steel 2-way ball-valves are designed for the automatic shut-off of networks of industrial fluids.
These 3-piece external tie-bolt ball valves are easy to remove for servicing. This full-bore valve has an anti-static
device and double sealing at the cable gland. It is EC- and TA-LUFT-approved. The ISO 5211 mounting pad enables
the actuator to be directly assembled. The latter is suitable for S4-type service factor, installed indoors or
outdoors under shelter.
AVAILABLE MODELS
1/4'' to 4'' diameters.
24 V AC / DC and 230 V AC actuators.
Connection
G
stainless steel
746 XS
LIMITS OF USE
Fluid pressure: PS
Fluid temperature: WT
Ambient temperature
Service factor
70
60
50
40
30
20
10
0
-40 -20
0
20
DIRECTIVES AND MANUFACTURING STANDARDS
OBJECT
Pressure Equipment Directive
2014/68/EC
Size
Steel grades
Information given as an indication only, and subject to possible modifications
SW
743 XS
64 bar (20°C)
- 40°C / +180°C
- 10°C / + 60°C
S4 - 50%
40
60
80 100 120 140 160 180
Temperature (°C)
Standard
1/4'' to 1": not subject
1''1/4 to 4'': category III
EN 12516-1
EN 1503-1
SECTORIEL S.A.
45 rue du Ruisseau
38290 SAINT QUENTIN-FALLAVIER – FRANCE
Telephone: +33 4 74 94 90 70 - Fax: +33 4 74 94 13 95
www.sectoriel.com
IP
LUFT
67
BW
745 XS
ON
Final test
TÜV 0035
Material certificate
Motorisation
connection
/ Email : sectoriel@sectoriel.fr
3.1
TA
.
Cert
0035
OBJECT
Standard
NKS 12266
NKS 10204
ISO 5211:
Page
1/7
Ref.
FT746XS+TCR ENG
Rev.
06
Date
10/2023
