736-746XS VALVE WITH SF SWITCH BOX
FEATURES

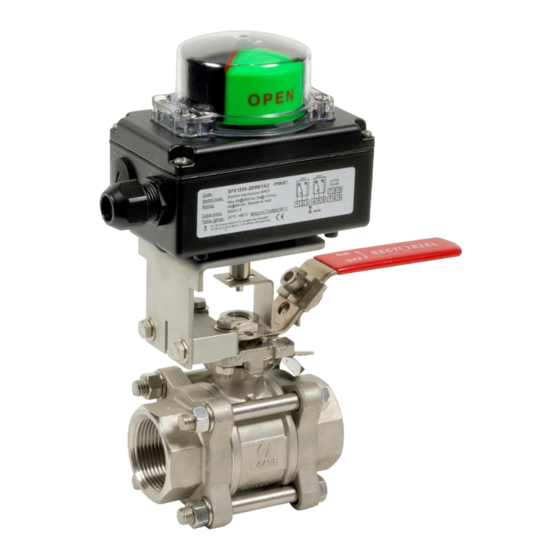

The 2-way 736 XS (steel) or 746 XS (stainless steel) ball valve + SF is intended for the manual shut-off of networks
for industrial fluids, providing position display and feedback information control. This 3-piece external tie-bolt
ball valve is easy to remove for servicing. This full-bore valve has an anti-static device and double leak-proofing
at the cable gland. It is EC- and ATEX- and TA-LUFT-approved. The SF switch box is equipped, as standard, with 2
dry contacts. Due to its IP67 leak-tightness, it can be installed both indoors and outdoors. Different contacts and
detectors are available as options.
AVAILABLE MODELS
1/4'' to 4'' diameters
Electrical connection: 2 x M20x1.5
Connection
G
steel
736 XS
stainless steel
746 XS
LIMITS OF USE
Material
Fluid pressure: WP
Fluid temperature: WT°
Ambient temperature
IP Code
80
70
60
50
Operation range for
40
stainless steel
30
Operation range for steel
20
10
0
-40 -20
0
20
Temperature (°C)
DIRECTIVES AND MANUFACTURING STANDARDS
OBJECT
Pressure Equipment Directive
2014/68/EC
ATEX Directive
Information given as an indication only, and subject to possible modifications
SW
735 XS
743 XS
steel
stainless steel
63 bar (20°C)
-25°C / +180°C
- 40°C / +180°C
- 20°C / + 80°C
IP 67
40
60
80 100 120 140 160 180
Standard
1/4" to 1": not subject
1'' 1/4 to 4'': category III
II 2G/D Tx zones 1,2,21 and 22
EN 13463-1 and 5
SECTORIEL S.A.
45 rue du Ruisseau
38290 SAINT QUENTIN-FALLAVIER – FRA NCE
Telephone: +33 4 74 94 90 70 - Fax: +33 4 74 94 13 95
www.sectoriel.fr
/ Email : sectoriel@sectoriel.fr
ISO
9001
BW
734 XS
745 XS
ON
Final test
TÜV 0035
Material certificate
SIRA 0518
Size
Steel grades
TA
3.1
LUF
.
Cert
0035
OBJECT
Standard
EN 12266
EN 10204
EN 12516-1
EN 1503-1
Pages
Ref.
FT746XS+SF ENG
Rev.
Date
06/2020
1/6
03
