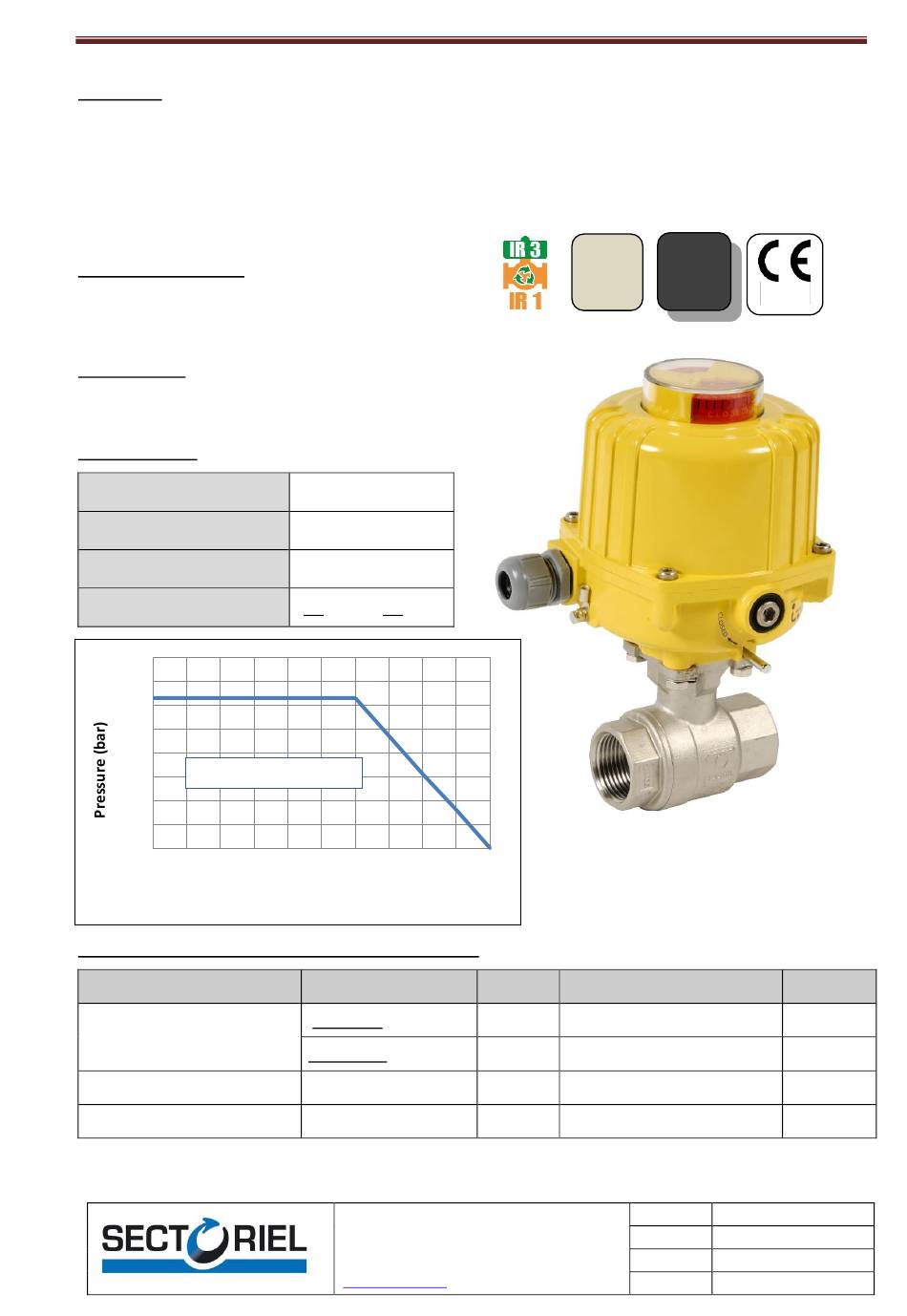

715 XS VALVE WITH SA03 ELECTRIC ACTUATOR
FEATURES

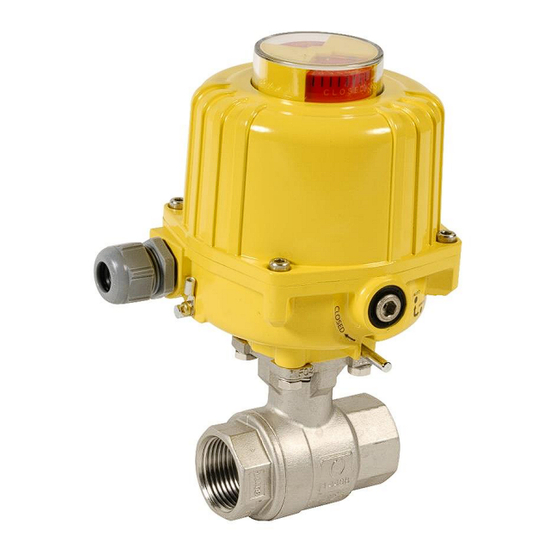

The stainless steel 715XS+SA03 2-way ball valve is dedicated to the automatic shut-off of uncharged industrial fluids.
This full-bore ball valve has an antistatic device and is certified according to the EC standards. The ISO 5211 pad enables
the direct mounting of the SA03 electric actuator. It is perfectly adapted for an indoor or outdoor industrial use.
AVAILABLE MODELS
1.4408 stainless steel (A351 CF8M) body.
Diameters 1/2'' to 1''.
BSP threaded connections.
Supply voltages : 24 Vdc, 24 Vac and 230 Vac.
LIMITS OF USE
Fluid pressure : PS
Fluid temperature : WT°
Ambiant temperature
Service factor
80
70
60
50
40
Range of application
30
20
10
0
-10
0
20 40 60 80 100 120 140 160 180
DIRECTIVES AND MANUFACTURING STANDARDS
OBJET
Pressure Equipment Directive
2014/68/EC
Size
Steel grade
Information given as an indication only, and subject to possible modifications
63 bar (20°C)
- 10°C / +180°C
- 20°C / + 70°C
S2 : 15mn - S4 : 50%
Temperature (°C)
Standard
1/2'' to 1": not subject
1"1/4 to 3'': category III TÜV 0035 Material certificate
EN 12516-1
EN 1503-1
SECTORIEL S.A.
45 rue du Ruisseau
38290 SAINT QUENTIN-FALLAVIER – FRA NCE
Tél : +33 4 74 94 90 70 - Fax : +33 4 74 94 13 95
www.sectoriel.com
3.1
.
Cert
ON
Final test
Motorisation connection
/ Email : sectoriel@sectoriel.fr
IP 67
0035
OBJET
Standard
EN 12266
EN 10204
ISO 5211
Pages
1/6
Ref.
TDS715XS+SA03 ENG
Rev.
03
Date
11/2023
