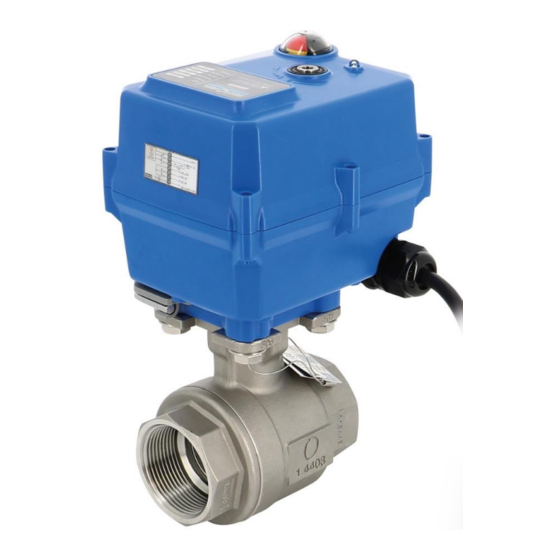

715 XS VALVE WITH TCR ELECTRICAL ACTUATOR
FEATURES
The 715XS+TCR 2-way stainless steel ball valve is designed for the automatic shut-off of pipes with non-loaded
industrial fluids. It is a full-bore valve with an antistatic device. It is EC-approved. The ISO 5211 mounting pad
enables the TCR actuator to be directly assembled. The latter is suitable for indoor or outdoor (under shelter)
industrial use.
AVAILABLE MODELS
1.4408 stainless steel body.
1/2'' to 3'' diameters.
G thread connections
Supply voltages: 24 V DC, 24 V AC and 230 V AC.
LIMITS OF USE
Fluid pressure: PS
Fluid temperature: WT
Ambient temperature
Service factor
80
70
60
50
40
Operating range
30
20
10
0
-10
0
20 40 60 80 100 120 140 160 180
DIRECTIVES AND MANUFACTURING STANDARDS
OBJECT
Pressure Equipment
Directive 2014/68/EC
Size
Steel grades
Information given as an indication only, and subject to possible modifications
63 bar (20°C)
- 10°C / +180°C
- 20°C / + 60°C
S4 – 50%
Temperature (°C)
Standard
1/2'' to 1": not subject
1''1/4 to 3'': category III
EN 12516-1
EN 1503-1
SECTORIEL S.A.
45 rue du Ruisseau
38290 SAINT QUENTIN-FALLAVIER – FRANCE
Telephone: +33 4 74 94 90 70 - Fax: +33 4 74 94 13 95
www.sectoriel.fr
/ Email : sectoriel@sectoriel.fr
3.1
ISO
9001
Cert
ON
OBJECT
Final test
TÜV 0035
Material certificate
Motorisation connection
IP
.
67
0035
Standard
NKS 12266
NKS 10204
ISO 5211:
Pages
1/6
Ref.
FT715XS+TCR ENG
Rev.
04
Date
06/2020
