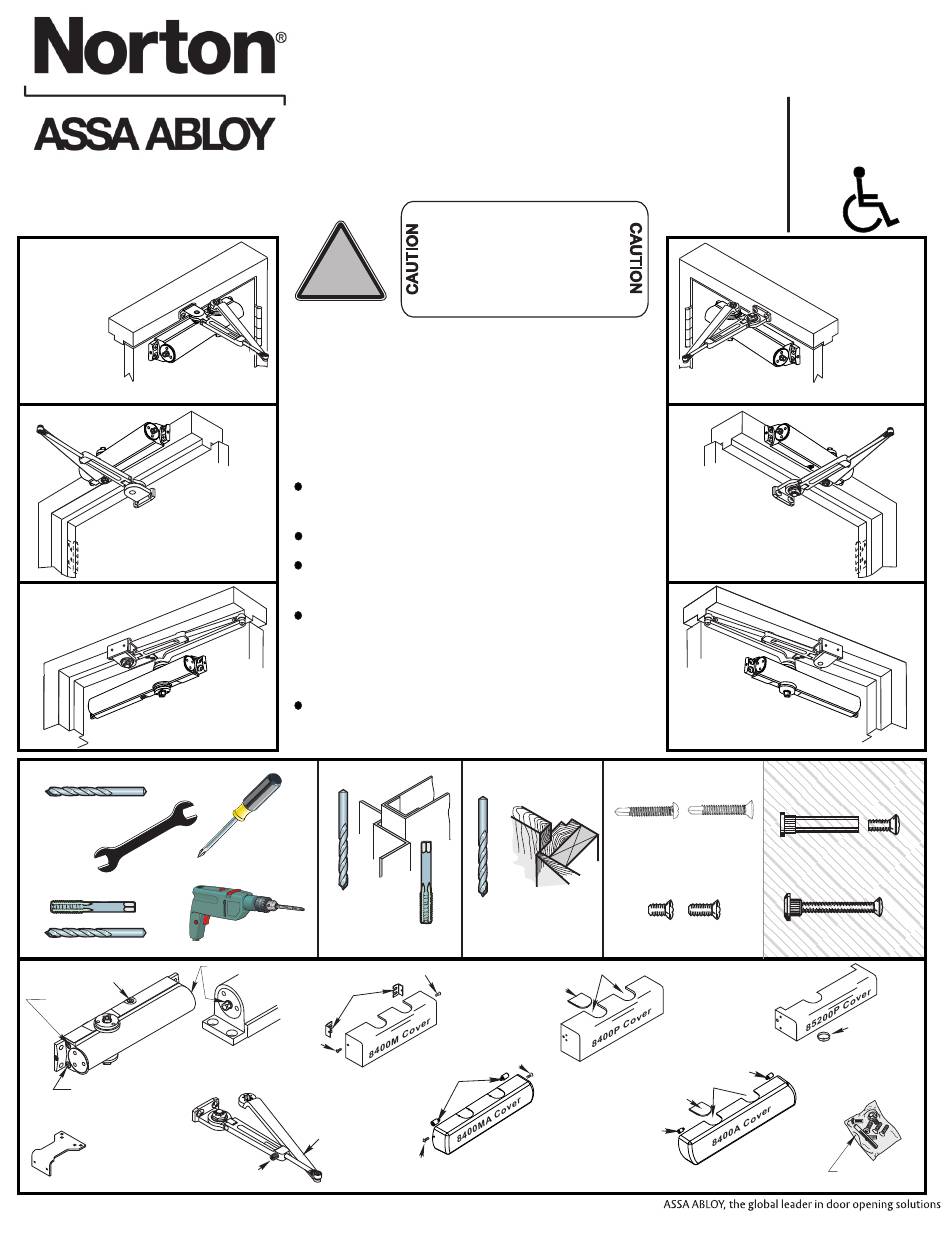

Assa Abloy Norton 8000H Series Installation Instructions Manual

Left Hand Door - LH
Right Hand Reverse - RHR
Regular Arm
Installation
See Page 2
Left Hand Door - LH
Right Hand Reverse - RHR
Left Hand Door - LH
Right Hand Reverse - RHR
Parallel Arm
Backcheck Valve
Latch Valve
Closer Body
Sweep Valve
Soffit Adapter Plate
1628H Soffit Plate
Used with Parallel
Arm Closers Only
Copyright © 2004, 2017 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
Installation Instructions
!
"DA" suffix (Delayed Action) is an optional
feature.
NOTE: For special applications a
separate door and frame preparation
template is packed with these instructions.
Use this instruction sheet for installation
sequence and closer adjustments only.
Top Jamb
Doors should be hung on ball bearing or
Installation
anti-friction hinges.
See Page 5
A separate door stop is recommended.
Door and frame must be properly
reinforced.
Adjust closing time speed between 3 and 7
seconds from 90° to 0°. Greater closing
times may be required for elderly or
handicapped.
These door closers should NOT be
Installation
installed on the exposed side (weather
See Pages
3 & 4
side) of exterior doors.
Metal
#7
Power Adjustment Shaft
Cover Clips
Cover Screws
Optional 8500M
Series Metal Cover
Arm
Assembly
Main Arm
Set
Screw
A n I n c o r r e c t l y i n s t a l l e d o r
improperly adjusted door closer can
cause property damage or personal
injury. These installation instructions
should be followed to avoid the
possibility of misapplication or
misadjustment.
Wood
3/16"
Pilot hole required
1/4-20
Cover Screw
Cover
Insert
Cover Screw
Standard 8500 Series
Standoffs
Full Cover
NOTE: Architectural Cover
CAN NOT be used for doors
Cover Screws
swinging over 120° using
Optional 8500MA Series
parallel mount
Architectural Metal Cover
1
8000H Series Tri-Style
Non Handed Door Closer
Hold Open Arm Models
Sized
(Sizes 2,3,4,5,6)
8100H
8300H
8500H
Top Jamb
Installation
See Page 5
Right Hand Door - RH
Left Hand Reverse - LHR
Parallel Arm
Installation
See Pages
3 & 4
Self Drilling Screws
Wood and Metal
For Wood drill 3/16 hole
Machine Screws
#7 Drill, 1/4-20 Tap
Insert Cutouts
Standoff
Insert Cutouts
Cover
Insert
Standoff
Optional 8500A Series
Architectural Plastic Cover
80-9380-2207-020 Rev 2 (09-17)
ASSA ABLOY
Adjustable
(Sizes 1 thru 6)
8301H
8501H
Right Hand Door - RH
Left Hand Reverse - LHR
Regular Arm
Installation
See Page 2
Right Hand Door - RH
Left Hand Reverse - LHR
(Optional)
Sleeve Nut and Bolt
Drill 9/32 thru from Closer Side
3/8 Drill other side
Thru Bolt and Grommet Nut
Drill 9/32 thru from Closer Side
3/8 Drill other Side
1639
Pinion Cap
Standard 8300 Series Narrow Cover
Screw Pack
