507477-04
4/2016
Supersedes 4/2015
INSTALLATION INSTRUCTIONS FOR PUREAIR™ AIR PURIFICATION SYSTEM
THIS MANUAL MUST BE LEFT WITH THE
HOMEOWNER FOR FUTURE REFERENCE
Shipping and Packing List
Assembled PureAir™ air purification system which
includes:
•
Cabinet (1)
•
UVA Lampholder / PCO cartridge (secure to interior
of cabinet) (1)
•
UVA lamp in box (secure to interior of cabinet) (1)
•
Healthy Climate® Carbon Clean 16 Filter (located
in interior of cabinet) (1)
•
UVA lamp socket with 4-pin male connector assem-
bly attached to light ballast electrical connector (1)
•
Literature Bag includes power cord (120VAC)*,
installation instructions, UVA Lamp Socket brass
finger buts (2), UVA Lampholder / PCO cartridge
wing nuts (2) and warranty.
*230VAC power cord available separately (part number
91X44)
Shipping Damage
Check equipment for shipping damage. If damage is
found, immediately contact last carrier.
UVA lamp ballast with electrical
connector (not shown) NOTE:
Lampholder assembly shipped
installed to ballast electrical
Access Panel
UVA lamp
Viewer
Opening for
Power Cord
AIR CLEANERS / FILTERS
PUREAIR™ AIR PURIFICATION SYSTEM
MODELS PCO3-14-16, PCO3-16-16 AND PCO3-20-16
Cabinet
connector.
UVA Lamp

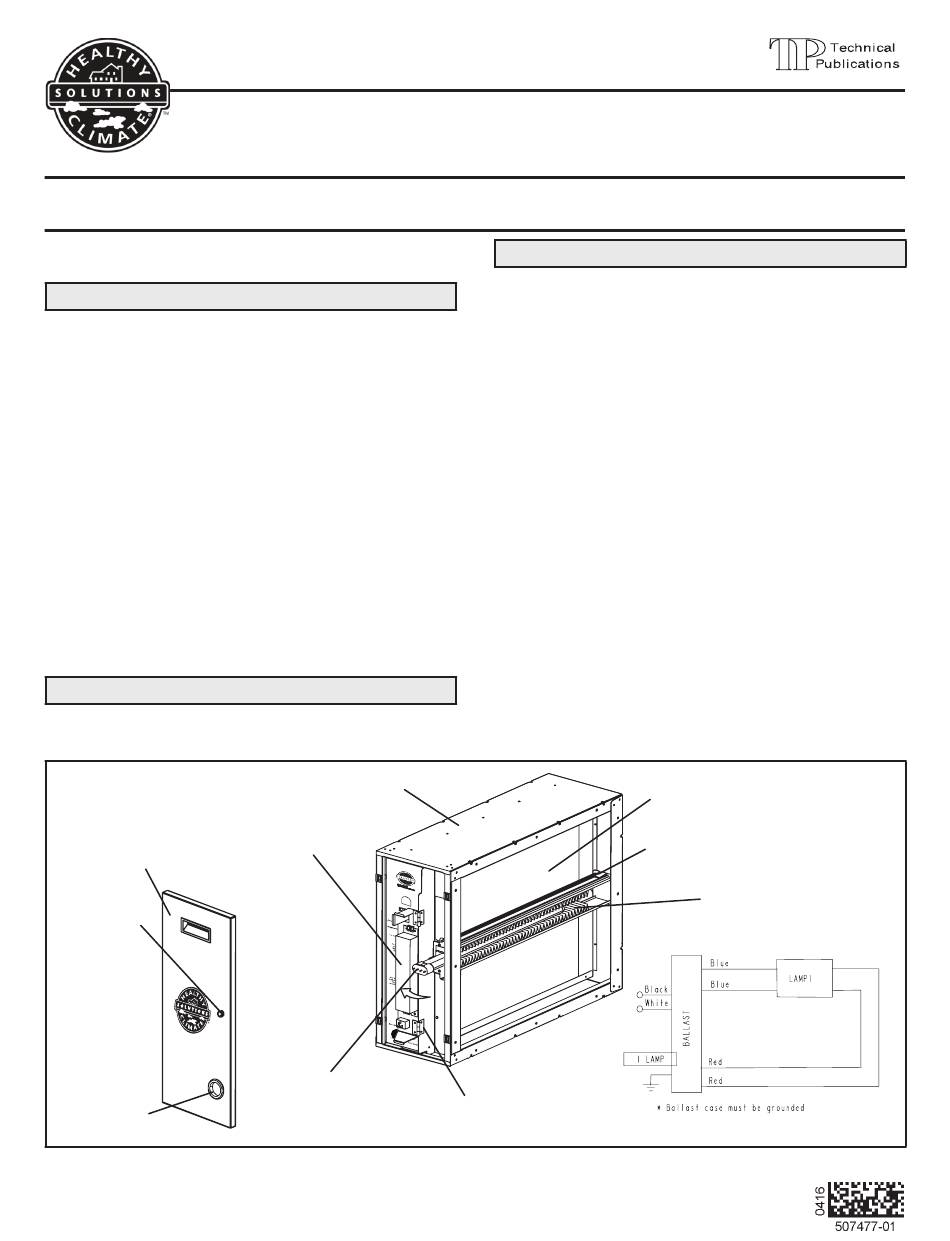

FIGURE 1 Parts Identification
PHOTOCATALYTIC OXIDATION (PCO)
General Information
The PureAir™ air purification system uses photo-catalytic
oxidation (PCO) technology to reduce levels of airborne
volatile organic compounds, cooking odors, common
household odors, airborne dust particles, mold spores and
pollen. The PureAir™ air purification system is available
in three models (PCO3-14-16, PCO3-16-16 and PCO3-
20-16). Each unit may be connected to either 120VAC or
230VAC power supply.
Lab tests confirm a 50% reduction in total volatile organic
compounds (TVOC) within the first 24 hours of initial
operation of the PureAir™air purification system. It may
take up to 48 hours after initial system start-up to reduce
the airborne chemicals that have built up in a home over a
long period of time.
For peak performance, unit should be installed in homes
with TVOC levels that are less than 1000 micro-gram /
cubic meter. Home source removal and ventilation may
be required to lower total volatile organic compounds to
this level.
The Healthy Climate®Carbon Clean 16 Filter combines
industry-leading MERV 16 filtration and carbon-coated
fiber matrix.
Hinged
Control Panel
Litho U.S.A.
TECHNOLOGY
®
Healthy Climate
Carbon Clean 16
Filter
Rear Mounting bracket for UVA
Lampholder / PCO Cartridge
UVA Lampholder / PCO
Cartridge
Lampholder Wiring
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Healthy Climate Solutions PUREAIR PCO3-14-16
Summary of Contents for Healthy Climate Solutions PUREAIR PCO3-14-16
- Page 1 AIR CLEANERS / FILTERS Litho U.S.A. PUREAIR™ AIR PURIFICATION SYSTEM 507477-04 PHOTOCATALYTIC OXIDATION (PCO) 4/2016 TECHNOLOGY Supersedes 4/2015 INSTALLATION INSTRUCTIONS FOR PUREAIR™ AIR PURIFICATION SYSTEM MODELS PCO3-14-16, PCO3-16-16 AND PCO3-20-16 THIS MANUAL MUST BE LEFT WITH THE General Information HOMEOWNER FOR FUTURE REFERENCE The PureAir™...
-
Page 2: Dimensions And Specifications
Dimensions and Specifications 8-3/4 (222) Model PCO3-14-16 23-3/4 (603) 21-1/8 (537) PCO3-16-16 26-1/2 (673) 17-1/2 (445) PCO3-20-16 26-1/2 (673) 21-1/8 (537) FIGURE 2 Dimensions TABLE 1 Specifications TABLE 2 Approximate Air Flow Resistance (Cabinet and Filter) WEIGHT Pressure Drop (in. w.g.) PCO3-14-16 27 lbs. - Page 3 NOTICE CAUTION This system is NOT intended to be used for removal of Sharp edges hazard. active mold growth or continuous sources of high levels Sharp edges can cause injuries. of chemicals in the air. Use protective gloves when grasping equipment edges. For existing mold growth, the mold must be properly CAUTION removed PRIOR to installation of the PureAir air...
-
Page 4: Installation Examples
Installation Examples At sharp turns, install turning vanes before the unit. Upflow Upflow (Side installation with access panel pointed (Side Installation) upward and UVA lamp is suspended vertically -- NOT RECOMMENDED) Upflow The unit must not be installed in a confined space where service clearance would be restricted. - Page 5 Installing Cabinet 4 - Remove (slide out) Healthy Climate®Carbon Clean 16 Filter from cabinet. The cabinet may either be installed on a level installation deck or platform adjacent to the air handler or it may be 5 - Disconnect the lampholder cable assembly from the suspended from the rafters using metal strapping.
-
Page 6: Operation
10 - Fasten the lamp socket to the UVA Lampholder / Installing Air Filter PCO cartridge using the two-brass finger nuts locat- NOTICE ed in the literature bag. Healthy Climate® Carbon Clean 16 Filter cannot tolerate direct exposure to UVA light. BRASS FINGER NUTS Filter is protected by PCO cartridge shield. -
Page 7: Filter, Uva Lampholder / Pco Cartridge And Uva Lamp Replacement
1 - Check to ensure that access panel is securely in Replacement Parts place. Replacement parts are available through Lennox, see 2 - Lamp should remain illuminated continuously except FIGURE 1 for parts arrangement. Part description and during service and maintenance. catalog numbers are as follows: 3 - For optimal odor control, air handler blower should Catalog Numbers... -
Page 8: Troubleshooting Flow Chart
Troubleshooting Flow Chart Look through the access panel START viewing port to check lamp. Is the lamp on? Is PCO power cord plugged Is there power to the into AC outlet? If not, plug PCO? PCO cord into AC Outlet. Check PCO power cord for damage and AC outlet for power.
