Healthy Climate Solutions HCC-14-23 Installation Instructions And Home Owner's Manual

Installation INSTRUCTIONS AND HOMEOWNER GUIDE FOR HEALTHY CLIMATE
CABINETS MODELS HCC-14-23, HCC16-28, AND HCC20-28
THIS MANUAL MUST BE LEFT WITH THE OWNER
FOR FUTURE REFERENCE

Shipping and Packing List

Package 1 of 1 contains:
2 - Side panels
2 - Side rails
1 - Front panel
1 - Rear panel
1 - Door
8 - #8 screws
1 - Installation instructions
1 - Lennox logo label
1 - Warranty sheet
CAUTION
Sharp Edges Hazard.
Equipment sharp edges can cause injuries.
Use protective gloves when grasping equipment edges.
IAQ - AIR FILTRATION
508028-01
12/2019
Supersedes 505,132M
Improper installation, adjustment, alteration, ser vice or
maintenance can cause property damage, personal injury
or loss of life.
Installation and service must be performed by a li censed
professional HVAC installer (or equivalent) or a service
agency.
Risk of equipment damage and/or high energy usage.
Dirty air filters will cause high energy usage and/or
damage to the ventilation system.
Replace filters at recommended intervals.

General Information

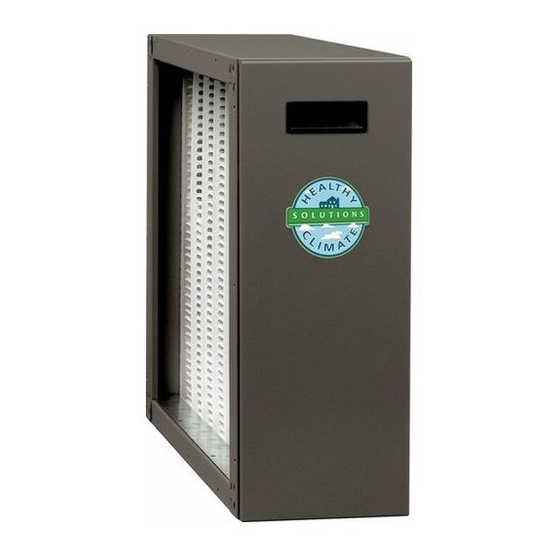

The Healthy Climate
electrostatically charged filter media to remove airborne
particles. Particle removal efficiency increases as the Mini-
mum Efficiency Reporting Value (MERV)* rating increases.
The highest removal efficiency is seen when the Healthy
Climate Media Air Cleaners are equipped with Healthy
Climate Carbon Clean 16 MERV 16 filters. Unlike other
high efficiency air cleaners, the Healthy Climate Media Air
Cleaners do not require any power source to operate.
The Healthy Climate
quires minimal assembly. The cabinet can be installed on
the furnace/air handler horizontally, or vertically, at the top,
or at the bottom, depending on the application (see Page 4
for application diagrams). Healthy Climate
last up to one year depending on conditions in the home.
The Healthy Climate Media Air Cleaner comes in three siz-
es (HCC14-23, HCC16-28 and HCC20-28).
The HCC14-23 cabinet is designed to house the following
filters:
• HCF14-11
• HCXF14-11
• HCF14-13
• HCF14-16
• HCXF14-16
HEALTHY CLIMATE
MEDIA AIR CLEANER
WARNING
CAUTION
Media Air Cleaner is a cabinet with
®
cabinet is shipped compact, and re-
®
Media Filter will
®
®
®
