Healthy Climate Solutions PUREAIR PCO3-14-16 Installation Instructions Manual

Hide thumbs

Advertisement

Table of Contents

507477-01
4/2015
Supersedes 3/2015
INSTALLATION INSTRUCTIONS FOR PUREAIR™ AIR PURIFICATION SYSTEM
THIS MANUAL MUST BE LEFT WITH THE
HOMEOWNER FOR FUTURE REFERENCE
Shipping & Packing List
Assembled PureAir™ air purification system which
includes:
•
Cabinet (1)
•
UVA Lampholder / PCO cartridge (secure to interior of
cabinet) (1)
•
UVA lamp in box (secure to interior of cabinet) (1)
®
•
Healthy Climate
Carbon Clean 16 Filter (located in
interior of cabinet) (1)
•
UVA lamp socket with 4-pin female connector
assembly attached to light ballast electrical connector
(1)
•
Literature Bag includes power cord (120VAC)*,
installation instruction, UVA Lamp Socket brass finger
nuts (2), UVA Lampholder / PCO cartridge wing nuts
(2) and warranty.
*230VAC power cord available separately (part number
91X44).
Shipping Damage
Check equipment for shipping damage. If damage is
found, immediately contact last carrier.
UVA lamp ballast with electrical
connector (not shown) NOTE:
Lampholder assembly shipped
installed to ballast electrical
Access Panel
UVA lamp
Viewer
Opening for
Power Cord
AIR CLEANERS / FILTERS
PHOTOCATALYTIC OXIDATION (PCO) TECHNOLOGY
MODELS PCO3-14-16, PCO3-16-16 AND PCO3-20-16
Cabinet
connector.
UVA Lamp

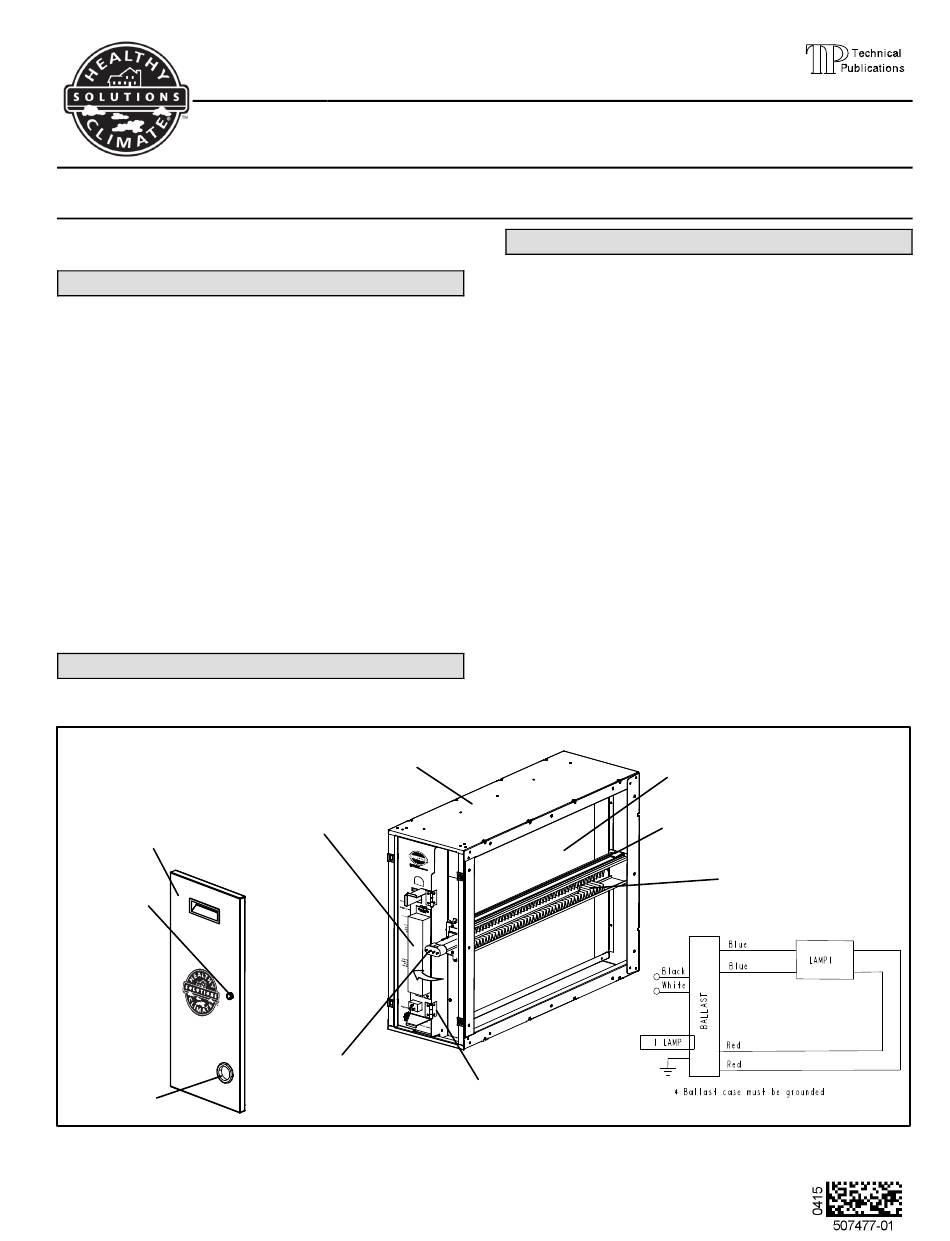

Figure 1. Parts Identification
PUREAIR™ AIR PURIFICATION SYSTEM
General Information
The PureAir™ air purification system uses photo-catalytic
oxidation (PCO) technology to reduce levels of airborne
volatile organic compounds, cooking odors, common
household odors, airborne dust particles, mold spores and
pollen. The PureAir™ air purification system is available in
three
models
PCO3-20-16). Each unit may be connected to either
120VAC or 230VAC power supply.
Lab tests confirm a 50% reduction in total volatile
organic compounds (TVOC) within the first 24 hours of
initial operation of the PureAir™ air purification system. It
may take up to 48 hours after initial system start-up to
reduce the airborne chemicals that have built up in a home
over a long period of time.
For peak performance, unit should be installed in homes
with TVOC levels that are less than 1000 micro-gram /
cubic meter. Home source removal and ventilation may be
required to lower total volatile organic compounds to this
level.
The Healthy Climate
industry-leading MERV 16 filtration and carbon-coated
fiber matrix.
Hinged
Control Panel
Page 1
(PCO3-14-16,
PCO3-16-16
®
Carbon Clean 16 Filter combines
®
Healthy Climate
Carbon Clean 16
Filter
Rear Mounting bracket for UVA
Lampholder / PCO Cartridge
UVA Lampholder / PCO
Cartridge
Lampholder Wiring
Litho U.S.A.
and
