- Page 1 Seagate® FireCuda® 530 SSD Product Manual Form Factor User Capacity Standard Models Heatsink Models 500 GB ZP500GM300013 ZP500GM30023 M.2 2280-S2 1000 GB ZP1000GM300013 ZP1000GM30023 2000 GB ZP2000GM300013 ZP2000GM30023 M.2 2280-D2 4000 GB ZP4000GM300013 ZP4000GM30023 200432500, Rev D October 2021...
- Page 2 Actual data rates may vary depending on operating environment and other factors. The export or re-export of hardware or software containing encryption may be regulated by the U.S. Department of Commerce, Bureau of Industry and Security (for more information, visit www.bis.doc.gov), and controlled for import and use outside of the U.S. Seagate reserves the right to change, without notice,...
-
Page 3: Table Of Contents
9. FireCuda 530 Installation Precautions ................33 Seagate FireCuda 530 SSD Product Manual, Rev D... - Page 4 9.3 Heatsink Disclosures ....................... 33 Seagate FireCuda 530 SSD Product Manual, Rev D...
-
Page 5: Support
For information regarding online support and services, visit: http://www.seagate.com/contacts/ For information regarding Warranty Support, visit: http://www.seagate.com/support/warranty-and-replacements/ For information regarding data recovery services, visit: http://www.seagate.com/services-software/seagate-recovery-services/recover/ For Seagate OEM and Distribution partner and Seagate reseller portal, visit: http://www.seagate.com/partners Seagate FireCuda 530 SSD Product Manual, Rev D... -
Page 6: Introduction
1. Introduction The Seagate® FireCuda® 530 SSD is a versatile NVMe SSD with PCIe Gen4 x4 interface. It is up to 12x faster than SATA SSDs and delivers Ultra-fast performance and enhanced endurance for long term use. Table 1 The FireCuda 530 SSD Features... -
Page 7: References
NVMe - Non Volatile Memory Express specification 1.4 — PCIe CEM - PCI Express Card Electromechanical specification, revision 1.1 — PCI Express M.2 Specification, revision 1.1 — Seagate Downloads are available on the Seagate Support page here: https://www.seagate.com/support/ Seagate FireCuda 530 SSD Product Manual, Rev D... -
Page 8: Specifications
Performance may vary based on the SSD’s firmware version, system hardware, and configuration. Performance is based on AMD Gen4 X570 + 8 Core CPU + 16 GB of DDR4 (3200mHz). CrystalDiskMark 7.0.0, 1GB range, QD=16, Thread=1 (Default Affinity enabled). Seagate FireCuda 530 SSD Product Manual, Rev D... -
Page 9: Power Consumption
Measured under ambient temperature. Power Consumption can differ with flash configuration and platform. Power consumption during read and write operation is measured on Gen4 X570 + 8 Core CPU. Seagate FireCuda 530 SSD Product Manual, Rev D... -
Page 10: Environmental Conditions
Non-Operating Vibration. The limits of non-operating vibration shall apply to all conditions of handling and transportation. This includes both isolated SSD and integrated SSDs. Vibration may be applied in the X, Y, or Z-axis. Seagate FireCuda 530 SSD Product Manual, Rev D... -
Page 11: Reliability/Endurance
The SSD achieves the specified MTBF in an operational environment that complies with the operational temperature range specified in this manual. Operating temperatures are measured by temperature sensor. Endurance rating valid for SSD Life Remaining > 1%. Seagate FireCuda 530 SSD Product Manual, Rev D... -
Page 12: Mechanical Dimensions And Drawings
500 GB 2.23 mm 1000 GB 80.15 mm 22.15 mm 2000 GB 10.0 3.58 mm 4000 GB 10.6 Table 8 FireCuda 530 SSD with Heatsink Weight and Dimensions Length Width Height Capacity Weight (g) (Max) (Max) (Max) 500 GB 47.0 9.84 mm... - Page 13 Figure 2 FireCuda 530 SSD M2 2280-D2-M Side View Figure 3 FireCuda 530 SSD M2 2280-D2-M Bottom View Seagate FireCuda 530 SSD Product Manual, Rev D...
- Page 14 Figure 4 FireCuda 530 SSD M2 2280-S2-M Top View Figure 5 FireCuda 530 SSD M2 2280-S2-M Side View Seagate FireCuda 530 SSD Product Manual, Rev D...

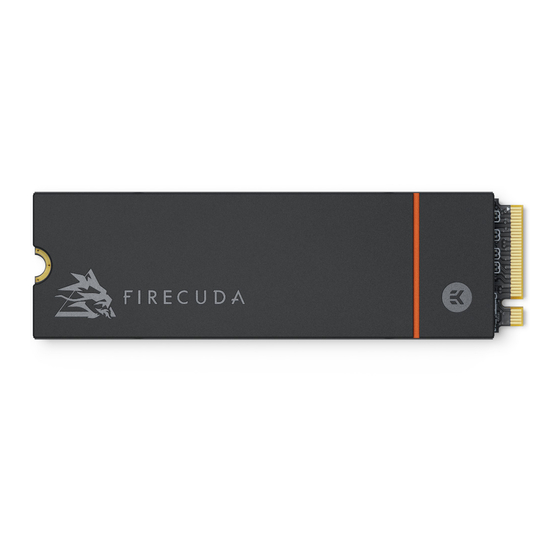

- Page 15 Figure 6 FireCuda 530 SSD M2 2280-S2-M Bottom View Figure 7 FireCuda 530 SSDs with Heatsink (500 GB and 1000 GB) Seagate FireCuda 530 SSD Product Manual, Rev D...
- Page 16 Figure 8 FireCuda 530 SSDs with Heatsink (2000 GB) Seagate FireCuda 530 SSD Product Manual, Rev D...
- Page 17 Figure 9 FireCuda 530 SSDs with Heatsink (4000 GB) Seagate FireCuda 530 SSD Product Manual, Rev D...
-
Page 18: Pin And Signal Descriptions
No connect PCIe RX Differential signal defined by the PCI Express M.2 spec PERp2 No connect Ground No connect PCIe TX Differential signal defined by the PCI Express M.2 spec PETn1 No connect Seagate FireCuda 530 SSD Product Manual, Rev D... - Page 19 PCI Express M.2 spec. Manufacturing Data line. Used for SSD manufacturing only. Not used in normal operation. Reserved for MFG DATA Pins should be left N/C in platform Socket. Seagate FireCuda 530 SSD Product Manual, Rev D...
- Page 20 32.768 kHz clock supply input that is provided by the platform chipset to reduce power and cost SUSCLK(32KHz) for the module. (I)(0/3.3V) PEDET (NC-PCIe) 3.3V source 3.3V Ground 3.3V source 3.3V Ground 3.3V source 3.3V Ground Seagate FireCuda 530 SSD Product Manual, Rev D...
-
Page 21: Nvme Commands
Not Supported Compare Supported Write Zeroes Supported Dataset Management Supported Table 12 Set Feature Commands Identifier Command Description Supported Reserved Arbitration Supported Power Management Supported LBA Range Type Not Supported Temperature Threshold Supported Seagate FireCuda 530 SSD Product Manual, Rev D... - Page 22 Supported Reserved Error Information Supported SMART / Health Information Supported Firmware Slot Information Supported Changed Namespace List Supported Device Self-test Supported 09h - 7Fh Reserved Sanitize Status Supported 82h - FFh Reserved Seagate FireCuda 530 SSD Product Manual, Rev D...
-
Page 23: Smart Support
6. SMART Support The FireCuda 530 SSD supports the SMART command set. SMART Attributes The following table lists SMART Attributes and Descriptions. Table 14 SMART Attributes (Log Identifier 02h) Bytes Index Bytes Description Critical Warning Composite Temperature [2:1] Available Spare... - Page 24 "Available Spare [Byte 3]" Value (percentage) = 100* [(total reserved VB - consumed VB caused by early, later bad)/ total reserved VB] "Percentage Used [Byte 5]" Value (percentage) = 100* (total VB erase count/ PE cycle for total VB) Seagate FireCuda 530 SSD Product Manual, Rev D...
- Page 25 Host Write Uncorrectable Sector Count [158:155] PS3 Enter Success [162:159] PS4 Enter Success [166:163] Wear Leveling Count [167] Chip internal temperature [169:168] Thermal throttling [171:170] Thermal throttling time [179:172] FW Code Update Count [511:181] Seagate FireCuda 530 SSD Product Manual, Rev D...
- Page 26 Value (percentage) = 100 *[1 - (Average of the Flash's block erase count / NAND EOL erase count)] "SSD Life Used Percent [Byte 55:48]" • Value (percentage) = 100 *(Average of the Flash's block erase count / NAND EOL erase count) Seagate FireCuda 530 SSD Product Manual, Rev D...
-
Page 27: Feature Details
Flash memory cells will deteriorate with use, which might generate random bit errors in the stored data. Thus, FireCuda 530 SSD applies the fourth generation LDPC(Low Density Parity Check) of ECC algorithm, which can detect and correct errors that occur during read process, ensure data has been read correctly, as well as protect data from corruption. -
Page 28: Over Provisioning
Resume performance threshold 64°C per Smart reported (PE > 500) Temperature polling frequency Every 1 sec TMT1_state impact ±10% CE TMT2_state impact -20% CE NOTE For optimal performance: Provide sufficient airflow and cooling. Seagate FireCuda 530 SSD Product Manual, Rev D... -
Page 29: Advanced Device Security Features
Sanitize Overwrite command completion takes at least one hour per terabyte per pass. The number of passes is drive-selectable. The NVMe spec default is 16 passes. Contact Seagate Support for more detailed information. Seagate FireCuda 530 SSD Product Manual, Rev D... -
Page 30: Ssd Lifetime Management
When the number of available spare is less the threshold(5%, SMART attribute log ID 02h Byte4), the drive will notify Host through AER event and Critical Warning to enter Read Only Mode to prevent further data corruption. User should start to replace the drive with another one immediately. Seagate FireCuda 530 SSD Product Manual, Rev D... -
Page 31: An Adaptive Approach To Performance Tuning
The firmware design of the device currently adopts dynamic caching to deliver better performance for better endurance and consumer user experience. The SLC caching size is up to 1/3 of free capacity of the SSD. Seagate FireCuda 530 SSD Product Manual, Rev D... -
Page 32: Safety, Standards, And Compliance
The following information provides an overview of requirements that may apply to the drive. NOTE The most up to date information on Safety, Standards, and Compliance for this product is available in the Seagate HDD and SSD Regulatory Compliance and Safety document. You can find this document on the Seagate Support page here: https://www.seagate.com/support/... -
Page 33: Firecuda 530 Installation Precautions
Dimensions exceed standard size specifications for the M.2 without a heatsink. Please verify that your system has enough space for installation. SSDs with heatsinks are recommended for M.2 with connectors H3.2 and above. Seagate FireCuda 530 SSD Product Manual, Rev D... - Page 34 Seagate Technology LLC 47488 Kato Road, Fremont, California 94538, United States, 510-661-1000 ASIA/PACIFIC Seagate Singapore International Headquarters Pte. Ltd. 90 Woodlands Avenue 7, Singapore 737911, 65-6412-3666 EUROPE, MIDDLE EAST AND AFRICA Seagate Technology (Netherlands) B.V. Koolhovenlaan 1, 1119 NB Schiphol-Rijk, Netherlands, 31-20-316-7300 Publication Number:...
