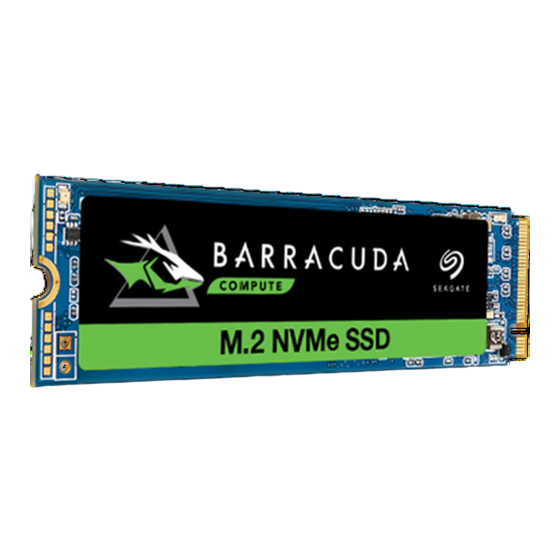

Seagate BarraCuda 510 SSD Product Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Seagate® BarraCuda® 510 SSD
User Capacity
256 GB
512 GB
Product Manual
Standard (TCG Pyrite)
M.2 2280-S2-M
Models
ZP256CM30011
ZP512CM30011
100847099, Rev. A
February 2019
SED (TCG Opal)
M.2 2280-S2-M
Models
ZP256CM30031
ZP512CM30031

Advertisement

Table of Contents
loading

Related Manuals for Seagate BarraCuda 510 SSD

Summary of Contents for Seagate BarraCuda 510 SSD

  • Page 1 Seagate® BarraCuda® 510 SSD Product Manual Standard (TCG Pyrite) SED (TCG Opal) User Capacity M.2 2280-S2-M M.2 2280-S2-M Models Models 256 GB ZP256CM30011 ZP256CM30031 512 GB ZP512CM30011 ZP512CM30031 100847099, Rev. A February 2019...
  • Page 2 Actual data rates may vary depending on operating environment and other factors. The export or re-export of hardware or software containing encryption may be regulated by the U.S. Department of Commerce, Bureau of Industry and Security (for more information, visit www.bis.doc.gov), and controlled for import and use outside of the U.S. Seagate reserves the right to change, without notice,...

  • Page 3: Table Of Contents

    7.2.3 Electromagnetic Susceptibility ....................22 Seagate BarraCuda 510 SSD Product Manual, Rev A...
  • Page 4 7.4 Reference Documents ......................27 Seagate BarraCuda 510 SSD Product Manual, Rev A...

  • Page 5: Barracuda 510 Ssdseagate Technology Support Services

    For information regarding online support and services, visit: http://www.seagate.com/contacts/ For information regarding Warranty Support, visit: http://www.seagate.com/support/warranty-and-replacements/ For information regarding data recovery services, visit: http://www.seagate.com/services-software/seagate-recovery-services/recover/ For Seagate OEM and Distribution partner and Seagate reseller portal, visit: http://www.seagate.com/partners Seagate BarraCuda 510 SSD Product Manual, Rev A...

  • Page 6: Introduction

    1. Introduction The Seagate® BarraCuda® 510 SSD is a versatile NVMe SSD that is optimized for maximum storage capacity with a wide range of application utilities. It is up to 6x faster than SATA SSDs and comes with TCG security to keep data safe and secure.
  • Page 7 Table 1 The BarraCuda 510 SSD Features (continued) Feature Description Shock Shock and Vibration Non-Operating: 1,500 G, at 0.5 ms  Vibration Section 2.4, Environmental Non-Operating: 1.52 G , (20 to 80 Hz,  Conditions. Frequency) °C to °C ...

  • Page 8: Specifications

    Performance may vary based on the SSD’s firmware version, system hardware, and configuration. CrystalDiskMark 6.0.2, 1GB range, QD=32, Thread=1, 1GB range, QD=32,  Thread=8 (random) Sequential Read/Write is measured while testing 1000 MB five times by  CrystalDiskMark. Seagate BarraCuda 510 SSD Product Manual, Rev A...

  • Page 9: Power Consumption

    SMART Attribute. Storage: The drive can be stored for a maximum of 180 days in the original unopened Seagate shipping package or 60 days, unpackaged, in the defined non-operating limits. Storage can be extended to 1 year packaged or unpackaged under optimal environmental conditions (<40°C, <40% relative...

  • Page 10: Reliability/Endurance

    Operating temperatures are measured by temperature sensor. Endurance rating valid for SSD Life Remaining > 1%.  Endurance is characterized while running Client JESD219A workload (per  JESD218A specification). Seagate BarraCuda 510 SSD Product Manual, Rev A...

  • Page 11: Mechanical Information

    3. Mechanical Information Figure 1 BarraCuda 510 SSD Top Side View Figure 2 BarraCuda 510 SSD Bottom Side View Seagate BarraCuda 510 SSD Product Manual, Rev A...
  • Page 12 Figure 3 BarraCuda 510 SSD Side View Notes Seagate BarraCuda 510 SSD Product Manual, Rev A...

  • Page 13: Pin And Signal Descriptions

    No connect PCIe RX Differential signal defined by the PCI Express M.2 spec PERp2 No connect Ground No connect PCIe TX Differential signal defined by the PCI Express M.2 spec PETn1 No connect Seagate BarraCuda 510 SSD Product Manual, Rev A...
  • Page 14 PCI Express M.2 spec. Manufacturing Data line. Used for SSD manufacturing only. Not used in normal operation. Reserved for MFG DATA Pins should be left N/C in platform Socket. Seagate BarraCuda 510 SSD Product Manual, Rev A...
  • Page 15 32.768 kHz clock supply input that is provided by the platform chipset to reduce power and cost SUSCLK(32KHz) for the module. (I)(0/3.3V) PEDET (NC-PCIe) 3.3V source 3.3V Ground 3.3V source 3.3V Ground 3.3V source 3.3V Ground Seagate BarraCuda 510 SSD Product Manual, Rev A...

  • Page 16: Smart Support

    5. SMART Support The BarraCuda 510 SSD 510 supports the SMART command set. SMART Attributes The following table lists SMART Attributes and Descriptions. Table 8 SMART Attributes (Log Identifier 02h) Bytes Index Bytes Description Critical Warning Composite Temperature [2:1]...

  • Page 17: Feature Details

    Flash memory cells will deteriorate with use, which might generate random bit errors in the stored data. Thus, BarraCuda 510 SSD 510 applies the 340bit/2KB LDPC(Low Density Parity Check) of ECC algorithm, which can detect and correct errors that occur during read process, ensure data has been read correctly, as well as protect data from corruption.

  • Page 18: Over Provisioning

    C from on-die thermal sensor Fatal threshold ° C from on-die thermal sensor Resume performance threshold ° C per Smart reported Temperature polling frequency Every 1 sec TMT1_state impact -10% CE TMT2_state impact -30% CE Seagate BarraCuda 510 SSD Product Manual, Rev A...

  • Page 19: Advanced Device Security Features

    IEEE 1667 is supported but needs to be activated by SeaChest_Security tool when required to prevent unintended eDrive implementation and the following requirement of reverting by PSID before being able to re-install the Operation System. Seagate BarraCuda 510 SSD Product Manual, Rev A...

  • Page 20: Ssd Lifetime Management

    When the number of available spare is less the threshold(5%, SMART attribute log ID 02h Byte4), the drive will notify Host through AER event and Critical Warning to enter Read Only Mode to prevent further data corruption. User should start to replace the drive with another one immediately. Seagate BarraCuda 510 SSD Product Manual, Rev A...

  • Page 21: An Adaptive Approach To Performance Tuning

    The firmware design of the device currently adopts dynamic caching to deliver better performance for better endurance and consumer user experience. The SLC caching size is set up to 24 GB across capacities. Seagate BarraCuda 510 SSD Product Manual, Rev A...

  • Page 22: Safety, Standards, And Compliance

    7.2.4 Electromagnetic Compliance Seagate uses an independent laboratory to confirm compliance with the EMC directives and standards. The device was tested in a representative system for typical applications.Although the test system with this Seagate model complies with the directives/standards, we cannot guarantee that all systems will comply. The computer manufacturer or system integrator shall confirm EMC compliance and provide the appropriate marking for their product.

  • Page 23: European Union (Eu) Ce Marking Requirements

    Ramadan 1436 (16 July 2015) on electromagnetic compatibility of equipment. For devices with the Morocco Mark, Seagate has added the Moroccan Commodity Mark to the devices provided to the OEM for the sale of Customer Kits produced by our OEM customers that are intended to be incorporated into the OEM's finished system-level product by an end user.

  • Page 24: Taiwanese Bsmi

    The European Union REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) Regulation (EC) 1907/2006 regulates chemicals shipped into and used in Europe. A number of parts and materials in Seagate products are procured from external suppliers. We rely on the representations of our suppliers regarding the presence of REACH substances in these articles and materials.

  • Page 25: China Requirements -China Rohs 2

    1, 2016, titled Management Methods for the Restriction of the Use of Hazardous Substances in Electrical and Electronic Products. To comply with China RoHS 2, Seagate determines this product's Environmental Protection Use Period (EPUP) to be 20 years in accordance with the Marking for the Restricted Use of Hazardous Substances in Electronic and Electrical Products, SJT 11364-2014.

  • Page 26: Taiwan Requirements - Taiwan Rohs

    CNS 15663, Guidance to reduction of the restricted chemical substances in electrical and electronic equipment. Seagate products must comply with the “Marking of presence” requirements in Section 5 of CNS 15663, effective January 1, 2018. This product is Taiwan RoHS compliant.

  • Page 27: Reference Documents

    — Solid State Drive Requirements and Endurance Test Methods  JESD218 — JESD219 — Seagate Documentation  SeaTools™ SSD GUI User Guide - Publication Number: 100837824 — SeaChest Utilities User Guides — Seagate BarraCuda 510 SSD Product Manual, Rev A...
  • Page 28 Seagate Technology LLC 10200 South De Anza Boulevard, Cupertino, California 95014, United States, 408-658-1000 ASIA/PACIFIC Seagate Singapore International Headquarters Pte. Ltd. 90 Woodlands Avenue 7, Singapore 737911, 65-6412-3666 EUROPE, MIDDLE EAST AND AFRICA Seagate Technology (Netherlands) B.V. Koolhovenlaan 1, 1119 NB Schiphol-Rijk, Netherlands, 31-20-316-7300 Publication Number: 100847099, Rev.
