Summary of Contents for Avery Weigh-Tronix BridgeMont Series

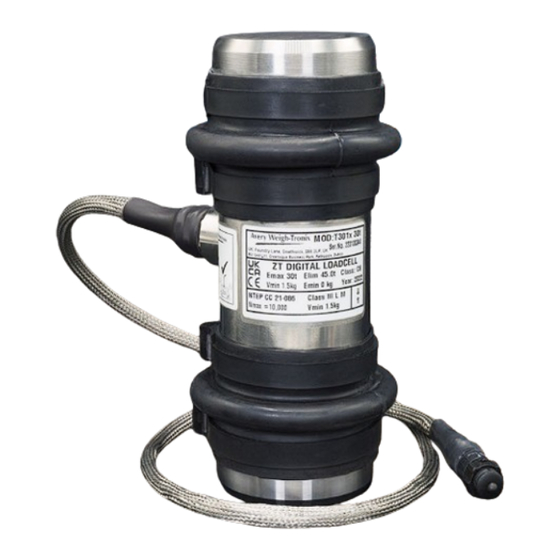

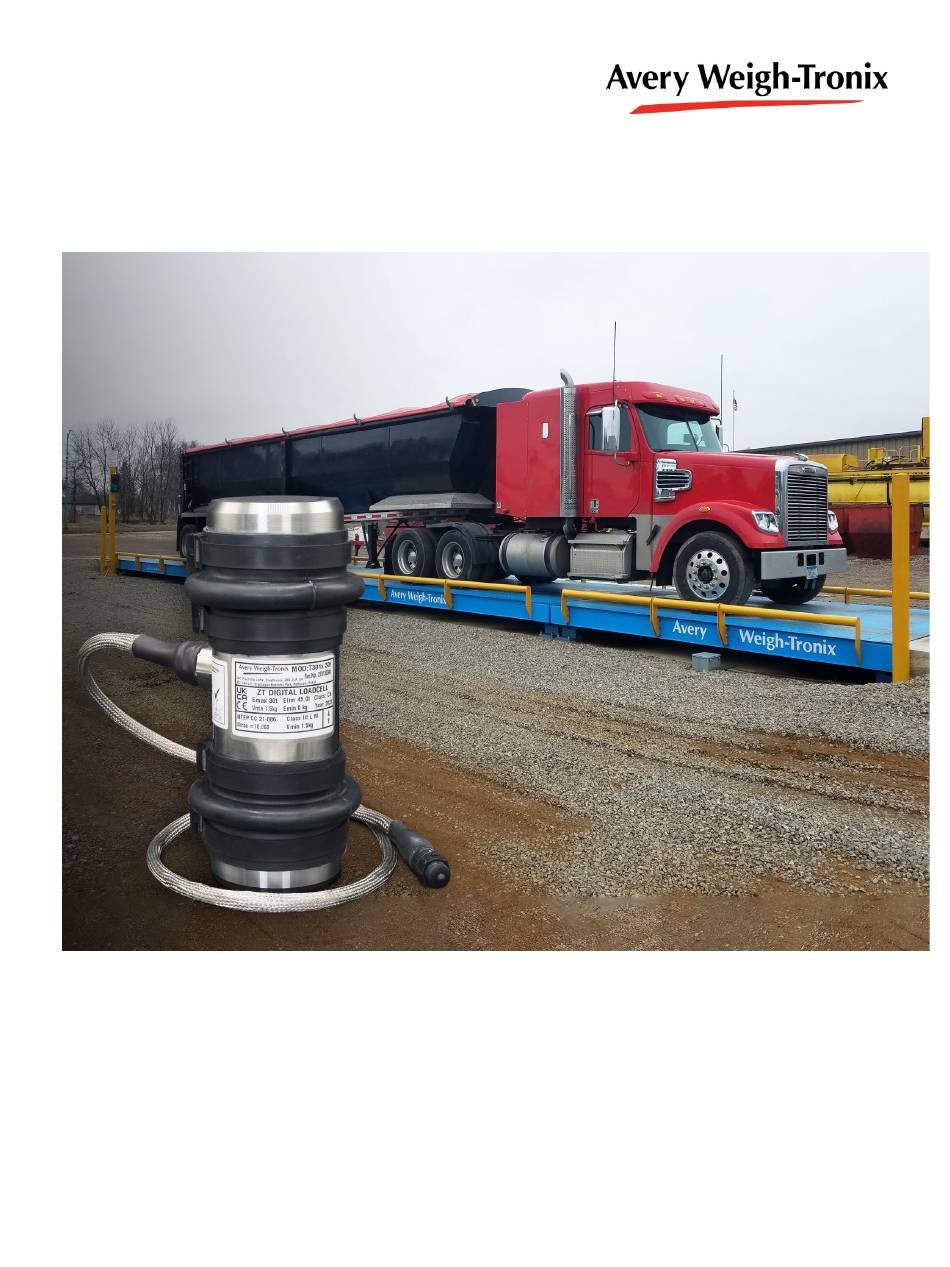

- Page 1 BridgeMont Series Truck Scales With ZT Digital Load Cells User Manual AWT35-100184 Issue AA Page 1 of 20 BM_wZT Digital Cell_u_en_100184.book...
- Page 2 This publication was correct at the time of going to print, however Avery Weigh-Tronix reserves the right to alter without notice the specification, design, price or conditions of supply of any product or service at any time.
- Page 3 Manual revision history Current Date Created Details of Changes Issue April 2024 New manual. Page 3 of 20 BM_wZT Digital Cell_u_en_100184.book...
-
Page 4: Table Of Contents
Contents General Information and Warnings ..................5 1.1. About this Manual ....................... 5 1.2. Installation ........................6 1.3. Electrical Installation ....................6 1.4. Routine Maintenance ....................6 1.5. Training ........................6 Introduction .......................... 7 2.1. Recording Ownership ....................7 2.2. Digital Load Cell Placement and Serial Number Log .......... -
Page 5: General Information And Warnings
General Information and Warnings 1.1. About this Manual This manual is divided into chapters by the chapter number and the large text at the top of a page. Subsections are labeled as shown by the 1 and 1.1 headings shown above. The names of the chapter and the next subsection level appear at the top of alternating pages of the manual to remind you of where you are in the manual. -
Page 6: Installation
NOTE: This is a Note symbol. Notes give additional and important information, hints and tips that help you to use your product. 1.2. Installation DANGER: RISK OF ELECTRICAL SHOCK. NO USER SERVICEABLE PARTS. REFER TO QUALIFIED SERVICE PERSONNEL FOR SERVICE. 1.3. -
Page 7: Introduction
Introduction Thank you and congratulations on your selection of a BridgeMont truck scale with ZT Digital Load Cell from Avery Weigh-Tronix. Your scale will provide many years of accurate, reliable weighing when properly installed and maintained. If you have any questions during the installation, calibration, or operation of your scale, please contact your local Avery Weigh-Tronix distributor for assistance. -
Page 8: Maintenance
Maintenance 3.1. General Inspection After Installation 1. Rock the scale system both longitudinally and laterally to make sure the entire platform is free to move and no part of the scale is binding 2. Clean under the platform regularly to prevent accumulation of solid material. -
Page 9: Zt Digital Load Cell Preventative Maintenance
Drip loops allow the cells to move freely and are off the ground. Rubber gaiter bellows are not damaged. If there is a cut or hole, contact your authorized Avery Weigh-Tronix dealer immediately for service. Cables are off the ground and are not damaged. If any of the ... - Page 10 4. Inspect the rubber gaiter bellows and buttons for any signs of wear, cracking, or damage. If damage is discovered, contact your authorized Avery Weigh-Tronix dealer immediately for service if damaged. 5. Inspect conduits and cables for any visible damage, wear, or fraying.
-
Page 11: Truck Scale Preventative Maintenance
When the cables need replacement contact your authorized Avery Weigh-Tronix dealer immediately for service if damaged. 6. Inspect the ZT Digital Load Cells and base plates for debris. If present, carefully wash the components to remove contaminants affecting their functioning. Do not jet wash the connectors. - Page 12 Any discrepancies of ±2 indicated divisions must be reported to an authorized Avery Weigh-Tronix service provider to avoid future inaccuracies. Page 12 of 20...
- Page 13 Avery Weigh- Tronix service provider. 3.4.4. Twice Yearly Tasks Checklist: Truck Scale Health Check 1. Have an authorized Avery Weigh-Tronix service provider conduct the twice-yearly inspections. 2. Have authorized Avery Weigh-Tronix service provider verify scale calibration to ensure accuracy.
- Page 14 4. Visually inspect the weight sensors for signs of excessive wear. 5. Visually inspect electrical components for damage or corrosion. 6. Report any damages to an authorized Avery Weigh-Tronix service provider. 3.4.5. Additional Truck Scale Checks 1. It is essential to check the truck scale for damage after any...
-
Page 15: Parts List
Parts List Part Number Description AWT05-901640 ZT Digital Load Cell, 30T, C6, SST CABLE AWT05-100935 KIT, ZT Digital Load Cell Gaiter and Load Button AWT05-100018 ZM/ZT Interface Card AWT05-100462 29.5 ft Cell-to-Cell Cable - SST AWT05-100463 13.1 ft Cell-to-Cell Cable - SST AWT05-100464 49.2 ft Interface Cable - SST AWT15-100126... -
Page 16: Zt Digital Load Cell Diagnostics User Menus
Communications error. One or more ZT Cells do not respond. Open the Diagnostic Menu for fault finding and repair. Ghosting alert - the scale is no longer legal for trade and operates at lower accuracy. Contact an authorized Avery Weigh-Tronix distributor for assistance. Page 16 of 20 BM_wZT Digital Cell_u_en_100184.book... -
Page 17: Diagnostics And Error Log - Administrator Menu (111)
5.1. Diagnostics and Error Log – Administrator Menu (111) 5.1.1. Opening the Diagnostic Menu 1. Press and hold the SETUP key. Enter the password 111 and press ↵ to open the User menu. 2. Press ↵ and ◄ to seleche DigJBox menu. Press ↵ to confirm. 3. - Page 18 Cells may take up to 15 minutes to warm up and stabilize. Re-establishing a Lost Communication: power cycle the indicator to reinitialize the ZT network. If the error persists, contact an authorized Avery Weigh-Tronix distributor for assistance. Page 18 of 20...
-
Page 19: Documentation
5.2. Documentation Document Title Part Number Digital Load Cell - Brochure AWT35-100149 Digital Load Cell - Technical Specifications AWT35-100151 Digital Load Cell - FAQ AWT35-100150 Page 19 of 20 BM_wZT Digital Cell_u_en_100184.book... - Page 20 Avery Weigh-Tronix USA 1000 Armstrong Dr. Fairmont MN 56031 USA Tel: 507-238-4461 Fax: 507-238-4195 Email: usinfo@awtx-itw.com www.averyweigh-tronix.com Avery Weigh-Tronix UK Foundry Lane, Smethwick, West Midlands, England B66 2LP Tel: +44 (0) 8453 66 77 88 Fax: +44 (0)121 224 8183 Email: info@awtx-itw.com...
