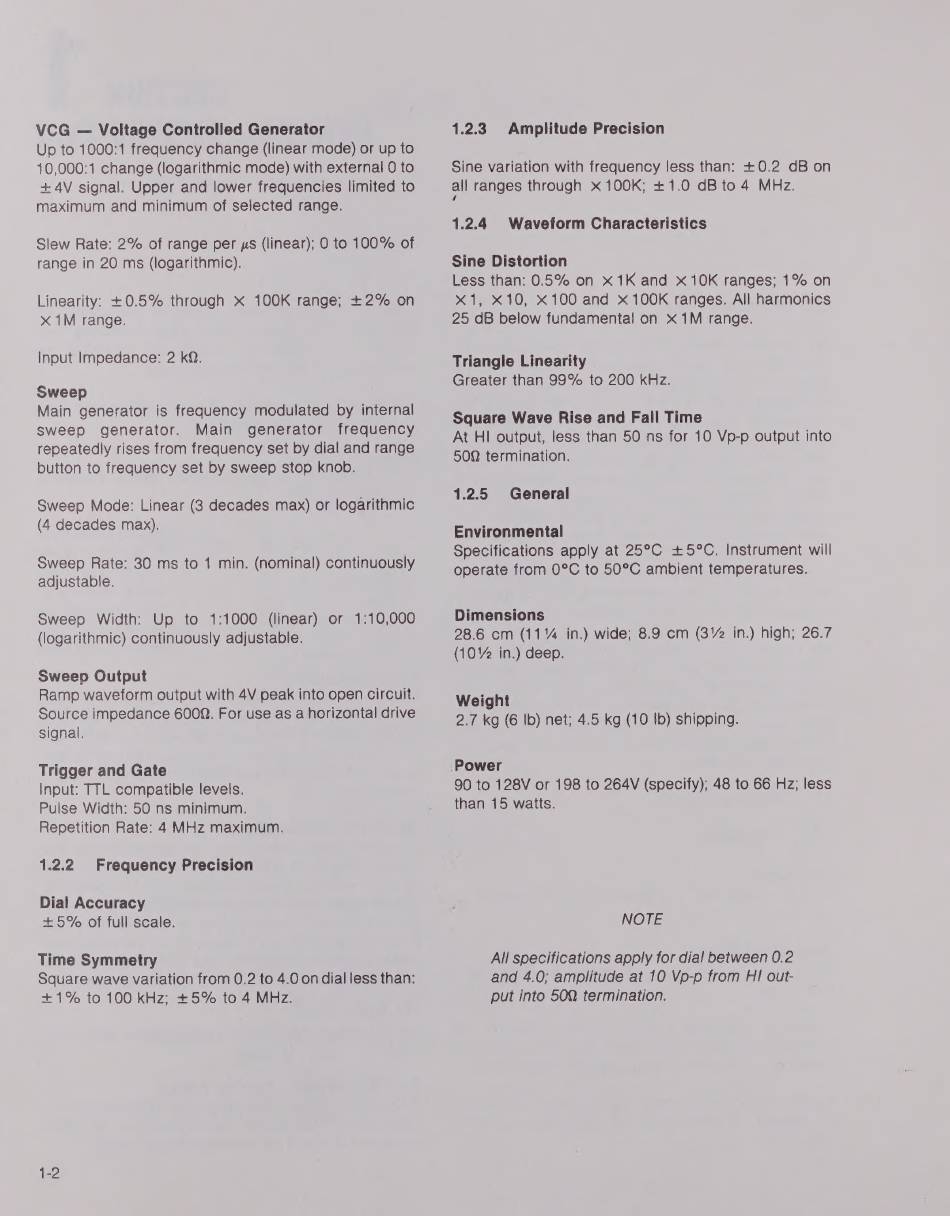

VCG — Voltage Controlled Generator
Up to 1000:1 frequency change (linear mode) or up to
10,000:1 change (logarithmic mode) with external 0 to
+ AV signal. Upper and lower frequencies limited to
maximum and minimum of selected range.
Slew Rate: 2% of range per из (linear); 0 to 100% of
range in 20 ms (logarithmic).
Linearity: +0.5% through x 100K range; =2% on
х 1М range.
Іприі |тредапсе: 2 КО.
Sweep
Main generator is frequency modulated by internal
sweep generator. Main generator frequency
repeatedly rises from frequency set by dial and range
button to frequency set by sweep stop knob.
Sweep Mode: Linear (3 decades max) or logarithmic
(4 decades max).
Sweep Rate: 30 ms to 1 min. (nominal) continuously
adjustable.
Sweep Width: Up to 1:1000 (linear) or 1:10,000
(logarithmic) continuously adjustable.
Sweep Output
Ramp waveform output with 4М peak into open circuit.
Source impedance 600Q. For use as a horizontal drive
signal.
Trigger and Gate
Input: TTL compatible levels.
Pulse Width: 50 ns minimum.
Repetition Rate: 4 MHz maximum.
1.2.20 Frequency Precision
Dial Accuracy
+5% of full scale.
Time Symmetry
Square wave variation from 0.2 to 4.0 on dialless than:
+ 196 to 100 kHz; + 5% to 4 MHz.
1-2
1.2.3 Amplitude Precision
Sine variation with frequency less than: + 0.2 dB оп
а! ranges through X 100K; =1.0 dB to 4 MHz.
1.2.4 Waveform Characteristics
Sine Distortion
Less than: 0.5% on x 1K and x 10K ranges; 1% on
X1, X10, x 100 and x 100K ranges. All harmonics
25 dB below fundamental on x 1M range.
Triangle Linearity
Greater than 99% to 200 kHz.
Square Wave Rise and Fall Time
At HI output, less than 50 ns for 10 Vp-p output into
500 termination.
1.2.5 General
Environmental
Specifications apply at 25°C + 5?C. Instrument will
operate from 0°C to 50°C ambient temperatures.
Dimensions
28.6 cm (11% in.) wide; 8.9 cm (3% in.) high; 26.7
(1077 in.) deep.
Weight
2.7 kg (6 Ib) net; 4.5 kg (10 Ib) shipping.
Power
90 to 128V or 198 to 264V (specify); 48 to 66 Hz; less
than 15 watts.
NOTE
All specifications apply for dial between 0.2
and 4.0; amplitude at 10 Vp-p from HI out-
put into 50Q termination.
