31
CONTROLS AND CONNECTIONS
The generator front panel controls апа соппестог5 аге
shown in figure 3-1 and keyed to the following descrip-
tions.
1
Frequency Dial — Settings under the dial index
mark summed with
21
апа multiplied бу
4
determine the output signal frequency and the
sweep start frequency in sweep mode. The dial
is engraved
with both
linear and logarithmic
scales:
outer
scale
linear
and
inner
scale
logarithmic.
2
POWER Button — Turnsgenerator ON and OFF.
3
STOP Knob — Sets the upper frequency limit
when CONT 5 is depressed and SWP/STOP 6 is
extended.
SECTION 3
ОРЕВАТІОМ
FREQUENCY MULTIPLIER Controls — Selects
one of seven frequency multipliers for dial 1 set-
ting.
CONT
Button
Selects sweep submode
to
main generator's continuous mode. Extended is
continuous (nonsweep) mode while depressed is
sweep mode. Sweep is from a low frequency set
by 1 to a high frequency set by 3. Main generator
mode control 8 must be in continuous mode (ex-
tended).
SWP/STOP Button — When button is depress-
ed (and 5 depressed
and 8 extended) selects
repetitive sweep of the main generator frequen-
cy. When
button is extended, the frequency is
stopped at the upper sweep limit with upper fre-
quency being set by STOP control 3.
LIN/LOG
Button
Selects
linear
or
logarithmic
frequency
distribution
of sweep,
зи
МАМ
OR.
мок
ам помени
таю

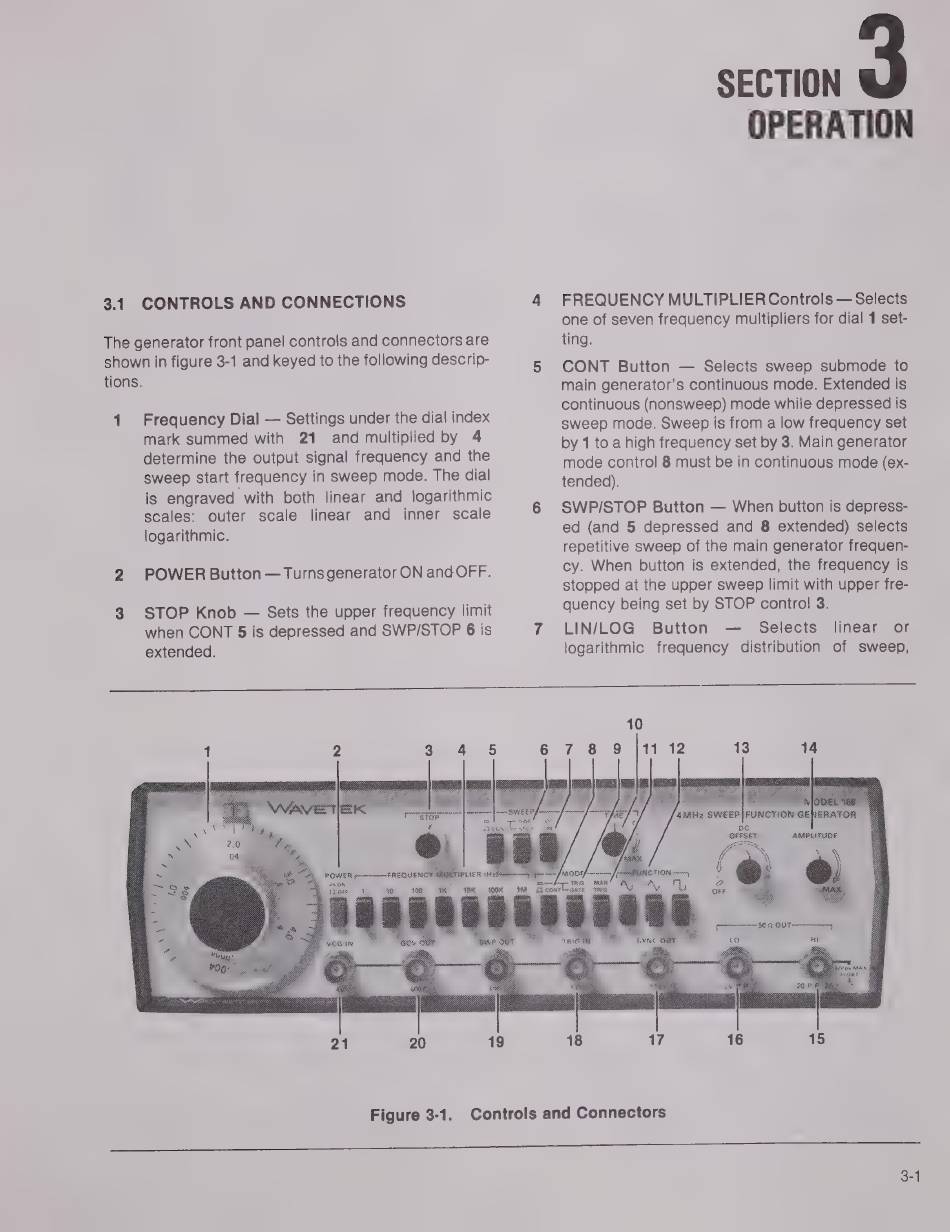

Figure 3-1.
Controls and Connectors
