Summary of Contents for PicoQuant Sepia PDL 810

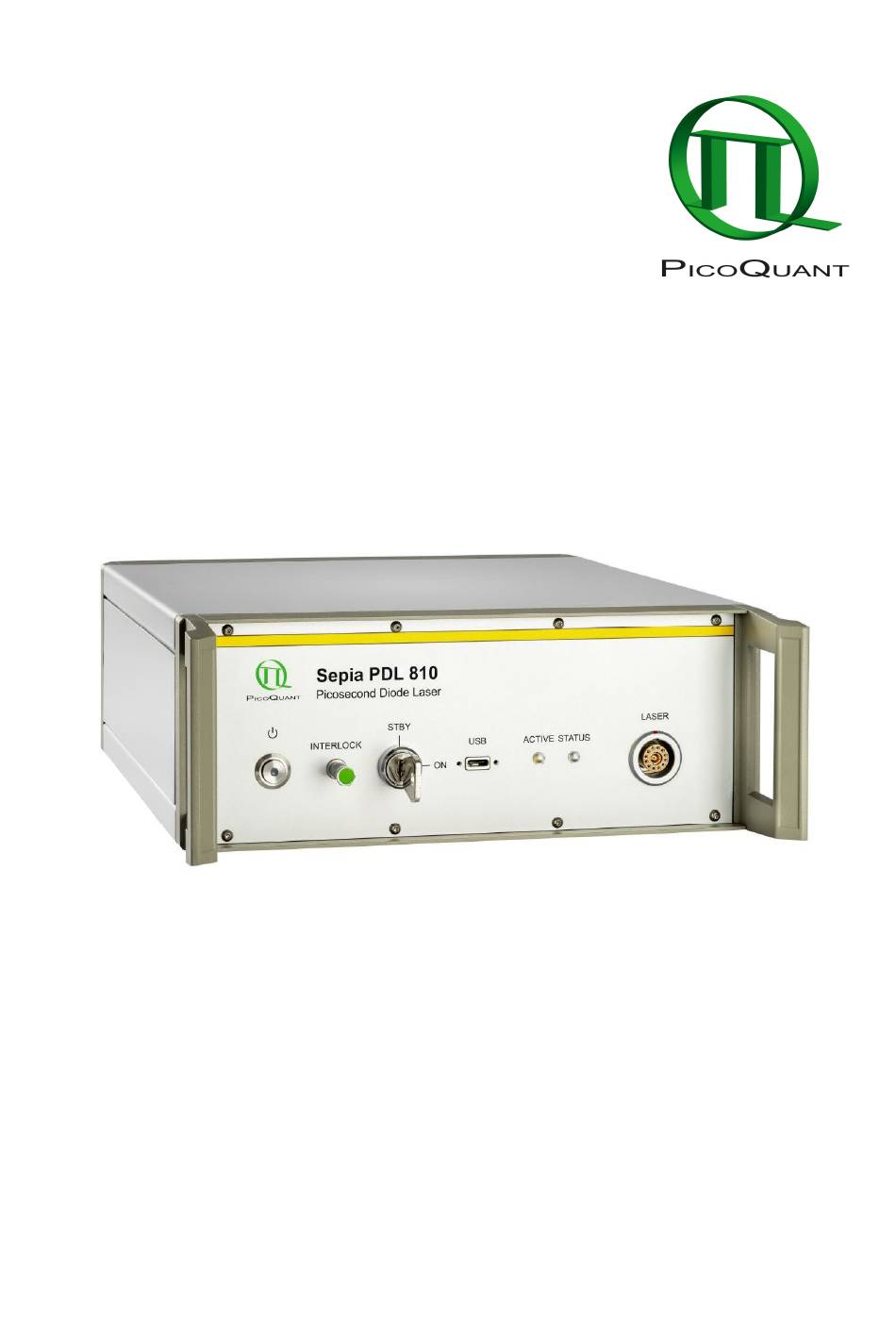

- Page 1 Sepia PDL 810 Computer Controlled Picosecond Diode Laser Driver User Manual Version 1.0.2...
-
Page 3: Table Of Contents
PicoQuant GmbH Sepia PDL 810 Manual Table of Content 1. General safety information..........................6 1.1. Warning Symbols and Conventions..................... 6 1.2. Electrical Safety Instructions........................ 7 1.3. Laser Safety Instructions........................8 Required Laser Safety Measures....................8 What does the owner / operator have to observe?...............8 General Safety Instructions for Operation..................8... - Page 4 4.3. Laser Heads / LED Heads......................... 23 4.3.1. Temperature Controlled (Model LDH–…–C Laser Heads Only)..........23 5. Software Description........................... 25 5.1. PQLaserDrv – The Graphical User Interface (GUI) for Sepia PDL 810..........25 5.1.1. Select Device........................26 5.1.2. Apply / Discard........................26 5.1.3.
- Page 5 PicoQuant GmbH Sepia PDL 810 Manual 11. Appendix..............................38 11.1. Naming scheme of the LDH Series laser heads................38 11.2. Overview of Laser Warning Labels by Model Type................38 11.3. Dimensions of LDH Series Laser Heads..................43 LDH-C model:..........................43 LDH-C model on holder with fiber coupler:.................44 LDH-FA models:.........................
-
Page 6: General Safety Information
PicoQuant GmbH Sepia PDL 810 Manual 1. General safety information CAUTION! Before using this device, make sure that you have read and understood the con- tent of this user manual. Store this documentation in a safe and easily accessible place for future reference. -
Page 7: Electrical Safety Instructions
PicoQuant GmbH Sepia PDL 810 Manual 1.2. Electrical Safety Instructions WARNING! To avoid electric shock, the power cord’s protective grounding conductor must be connected to the ground. This device and laser heads contain no user serviceable components. Do not remove covers! Servicing of internal components is restricted to qualified personnel. -
Page 8: Laser Safety Instructions
Read all instructions carefully BEFORE operating this device. The Sepia PDL 810 laser driver as well as laser diode heads of the LDH Series and LDH-FA Series are man- ufactured according to the International Laser Safety Standard IEC 60825-1:2014 and comply with the US law 21 CFR §1040.10 and §1040.11. -
Page 9: Laser Safety Labels
An overview of laser safety labels by model type can be found in the table of Appendix 11.2. Note that this list is not exhaustive and encompasses Sepia PDL 810 compatible laser heads available at the time that this manual was released. -
Page 10: Long Cylindrical Heads (Ldh Series)
PicoQuant GmbH Sepia PDL 810 Manual 1.4.2. Long Cylindrical Heads (LDH Series) Fig. 2: Location of the laser safety and warning labels as well as aperture indicator on a long cylindrical laser head (here an LDH-D-TA-530). Page 10... -
Page 11: Flat Cuboid Heads (Ldh-Fa Series)
PicoQuant GmbH Sepia PDL 810 Manual 1.4.3. Flat Cuboid Heads (LDH-FA Series) Fig. 3: Location of the laser safety and warning labels as well as aperture indicator on a flat cuboid laser head (here an LDH-P- FA-530B). Page 11... -
Page 12: Tall Cubioid Heads (Ldh-Fa Series)
PicoQuant GmbH Sepia PDL 810 Manual 1.4.4. Tall Cubioid Heads (LDH-FA Series) Fig. 4: Location of the laser safety and warning labels as well as aperture indicator on a tall cuboid laser head (here an LDH-P-FA-560). Page 12... -
Page 13: Remote Interlock Connector
Fig. 5: Location of the remote interlock connectors on the front panel of the Sepia PDL 810 is between power switch and key-switch. The green remote interlock connector (LEMO connector) is located on the front panel as shown in Fig. 5. -
Page 14: Introduction
Sepia PDL 810 Manual 2. Introduction The Sepia PDL 810 system is a single channel pulsed diode laser driver system that allows operating a con- nected laser head in either pulsed or continuous wave (cw) mode. The driver may trigger the laser au- tonomously from its built-in crystal oscillator or, if a more complex triggering scheme is needed, can also be triggered by an external signal. -
Page 15: Installation And Quick Start
Hardware Installation When selecting a location for the Sepia PDL 810, please ensure that sufficient air flow from the fan at the rear panel is available by keeping a distance of 10 cm to any obstacle. The venting slits at the bottom must not be covered. - Page 16 2. a computer to install and run the operation software. The computer needs to have a free USB slot as well as a Windows operating system. Place the Sepia PDL 810 on its dedicated place, insert the power cord and connect the Sepia PDL 810 to the host computer using the delivered USB cable.
-
Page 17: Quick Start Guide

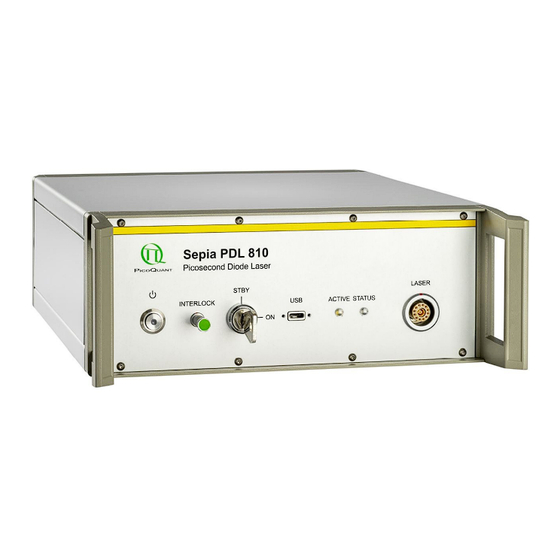

Fig. 7 shows the indicators and controls available on the front panel of a Sepia PDL 810: Fig. 7: Location of the indicators on the front panel of the Sepia PDL 810 Power button and indicator. In general use, it is recommended to turn off the Sepia PDL 810 by using this button (standby mode). -
Page 18: Laser Driver And Laser Heads
The GUI shows the control panel for the installed laser driver to the right side as shown in Fig. 12 (item Triggering Modes The pulse repetition rate of the Sepia PDL 810 can be derived either from its internal crystal oscillator or from an externally supplied trigger signal. The triggering source can be selected from the drop down menu labeled Trigger Source. -
Page 19: Hardware Description
4.1. Startup Operation At power up, the Sepia PDL 810 performs some basic checks on its hardware before the system is ready for operation. Once these tests are successfully completed, the “STATUS” indicator emits constant green light and the laser driver will operate according to its last settings. -
Page 20: Laser Locking Behavior
Please contact us in advance if you have special laser diodes that need to be operated in picosecond pulsed mode. The Sepia PDL 810 also supports LDH-D-C laser heads allowing for CW operation of these laser diodes. 4.2.1. -
Page 21: Operation Mode And Triggering
Main power switch and power socket 4.2.2. Operation Mode and Triggering The Sepia PDL 810 laser driver can be operated in either pulsed mode (triggered by internal oscillator or via external trigger) or in CW mode. Internal trigger or CW mode: The laser driver can be triggered from its internal local oscillator at six user-selectable frequen- •... -
Page 22: Emission Intensity
4.2.4. Gating Functions For special applications, such as in scanning devices, the Sepia PDL 810 has two gating functions allowing suppression of laser emission by an external signal. FAST GATE The fast gate function affects the trigger input line TRIG. IN. -
Page 23: Laser Heads / Led Heads
PicoQuant GmbH Sepia PDL 810 Manual 4.3. Laser Heads / LED Heads 4.3.1. Temperature Controlled (Model LDH–…–C Laser Heads Only) The only user adjustable part of the laser head is the set-point for the thermoelectric (TE) cooler. Since the output power at a given potentiometer setting depends slightly on the temperature of the diode element, the set-point should only be changed if absolutely necessary, e.g., if the ambient temperature is too high. - Page 24 PicoQuant GmbH Sepia PDL 810 Manual Temperature Temperature Status Status Set-point Set-point Fig. 11: Top-view of LDH-C series laser head Check the temperature control status LED on the laser head. If it is: green – the laser diode element is operating at the set-point temperature, •...
-
Page 25: Software Description
The Sepia PDL 810 must be turned on and the initialization process completed, before the software can be started! The Sepia PDL 810 GUI is available in three different color schemes: PicoQuant bright scheme, PicoQuant dark scheme and a standard Windows scheme. The latter can be customized using the standard Window control panel. -
Page 26: Select Device
Sepia PDL 810 (or any other USB laser device from PicoQuant’s Sepia family) are connected to the same host computer. It can also be used to restore the USB connection to the device should it be lost during operation for any reason. In this case, the label of the OK button changes to Reconnect. -
Page 27: Soft Lock And Unlock Of The Sepia Pdl 810
Soft Lock and Unlock of the Sepia PDL 810 The Sepia PDL 810 can be locked (no laser light emission) and unlocked (laser light is emitted) not only with the hardware key switch on the front panel, but also via the GUI by clicking on the button labeled Laser Soft Lock / Laser Soft Unlock , which is located in the controller frame on the left side of the software window. -
Page 28: Laser Driver
PicoQuant GmbH Sepia PDL 810 Manual 5.1.4. Laser Driver The control element for the laser driver is shown in Fig. 18 below: Fig. 18: Laser Driver GUI Trigger source: 5 user selectable internal repetition rates of 80, 40, 20, 10, 5 or 2.5 MHz. -
Page 29: Presets
PicoQuant GmbH Sepia PDL 810 Manual 5.1.5. Presets Two working configurations can be saved and recalled under in the frame labeled Presets . Each preset stores all working parameters of the device. The currently applied configuration can be saved by clicking on the Store Preset 1 or Store Preset 2 button (see Fig. - Page 30 PicoQuant GmbH Sepia PDL 810 Manual Fig. 22: A potential result screen after searching for latest manual versions Lines corresponding to manuals that are up-to-date will be greyed out. Manuals that are currently not in - stalled are listed as v0.0.0 in the column Cur. Vers.
-
Page 31: Application Hints
PicoQuant GmbH Sepia PDL 810 Manual 6. Application Hints 6.1. Choosing the Correct Laser Intensity To ensure safer working conditions and to prolong the lifetime of the laser element, select a lower power set- ting (approx. 35% of full power). Full laser power should not be used unless it is absolutely needed. This ap- plies especially to laser diodes in the ultraviolet to blue region, which still have a shorter lifetime than red or infrared laser diodes. -
Page 32: Technical Data / Specifications
PicoQuant GmbH Sepia PDL 810 Manual 7. Technical Data / Specifications Power and Dimensions Power supply......115/230 VAC, 50/60 Hz, max. 45 W Dimensions........ 237 × 310 × 97 mm (w × d × h) Laser Driver Inputs........1 trigger (NIM), 2 gating (TTL) Outputs........ -
Page 33: Support
(see 5.1.6). 8.1. Troubleshooting If your have another laser head from PicoQuant, then you can do a cross-check, to find out if the laser head or the laser driver is malfunctioning. 8.1.1. -
Page 34: Checklist - No Laser Emission
PicoQuant GmbH Sepia PDL 810 Manual 8.1.2. Checklist – No Laser Emission WARNING! Under no circumstances look directly into the laser! For LDH-FA Series laser heads: is shutter open Open Is key-switch ( ) in ON position shutter Bring Is Interlock (... -
Page 35: Firmware Start-Up Diagnosis
For this reason we recommend to unplug the Sepia PDL 810 from the main power supply and to wait for ca. 3 minutes to ensure a complete reset of the device. -
Page 36: Legal Terms
Sepia PDL 810 Manual 9. Legal Terms 9.1. Copyright Copyright of this manual and on-line documentation belongs to PicoQuant GmbH. No parts of it may be reproduced, translated, or transferred to third parties without written permission of PicoQuant 9.2. Trademarks Other products and corporate names appearing in this manual may or may not be registered trademarks or subject to copyrights of their respective owners. -
Page 37: Further Reading
10.1. PicoQuant Bibliography PicoQuant maintains a database of publications mentioning PicoQuant devices. It can be found at our web - site https://www.picoquant.com/scientific/references. It is a valuable source if you would like to know which laboratories are using PicoQuant products or how broad the field of various applications is. -
Page 38: Appendix
Overview of Laser Warning Labels by Model Type The table in this section provides an overview of laser warning labels by model type. Note that this list ist not exhaustive and encompasses Sepia PDL 810 compatible laser heads available at the time this manual was released. - Page 39 PicoQuant GmbH Sepia PDL 810 Manual Model type Warning label on the laser head LDH-D-TA-532 Part No.: 912531 / 912532 / 912533 LDH-D-TA-595 Part No.: 912594 / 912595 / 912596 LDH-D-TA-5 Part No.: 912561 / 912562 / 912563 LDH-FA Series...
- Page 40 PicoQuant GmbH Sepia PDL 810 Manual Model type Warning label on the laser head LDH-P-FA-266 Part No.: 910266 LDH-P-FA-355 Part No.: 910355 LDH-P-FA-515L Part No.: 910517 LDH-P-FA-530B Part No.: 910531 LDH-D-FA-530L Part No.: 912534 Page 40...
- Page 41 PicoQuant GmbH Sepia PDL 810 Manual Model type Warning label on the laser head LDH-P-FA-530L Part No.: 910533 LDH-P-FA-530XL Part No.: 910534 LDH-P-FA-560 Part No.: 910560 LDH-P-FA-595B Part No.: 910596 LDH-D-FA-765L Part No.: 912766 Page 41...
- Page 42 PicoQuant GmbH Sepia PDL 810 Manual Model type Warning label on the laser head LDH-P-FA-765XL Part No.: 910765 LDH-P-FA-775B Part No.: 910765 LDH-P-FA-1060 Part No.: 911065 LDH-P-FA-1060XL Part No.: 911066 LDH-P-FA-1530XL Part No.: 911532 Page 42...
-
Page 43: Dimensions Of Ldh Series Laser Heads
PicoQuant GmbH Sepia PDL 810 Manual 11.3. Dimensions of LDH Series Laser Heads LDH-C model: Page 43... -
Page 44: Ldh-C Model On Holder With Fiber Coupler
PicoQuant GmbH Sepia PDL 810 Manual LDH-C model on holder with fiber coupler: Page 44... -
Page 45: Ldh-Fa Models
PicoQuant GmbH Sepia PDL 810 Manual LDH-FA models: 11.4. Laser Delivery Report The delivery report of your lasers, including all final production test results for pulse shape, optical power, and line width is attached to this user manual. A PDF copy can be provided on request. -
Page 46: Abbreviations
PicoQuant GmbH Sepia PDL 810 Manual 11.5. Abbreviations Application Programming Interface British Naval Connector or Bayonet Nut Connector or Bayonet Neill Concelman CAMAC Corporations and Markets Advisory Committee Continuous Wave Dynamic Link Library Graphical User Interface International Electrotechnical Commission Laser Diode Head... - Page 47 PicoQuant GmbH Sepia PDL 810 Manual All information given here is reliable to our best knowledge. However, no responsibility is assumed for possible inaccuracies or omissions. Specifications and external appearances are subject to change without notice. PicoQuant GmbH P +49-(0)30-1208820-0...
