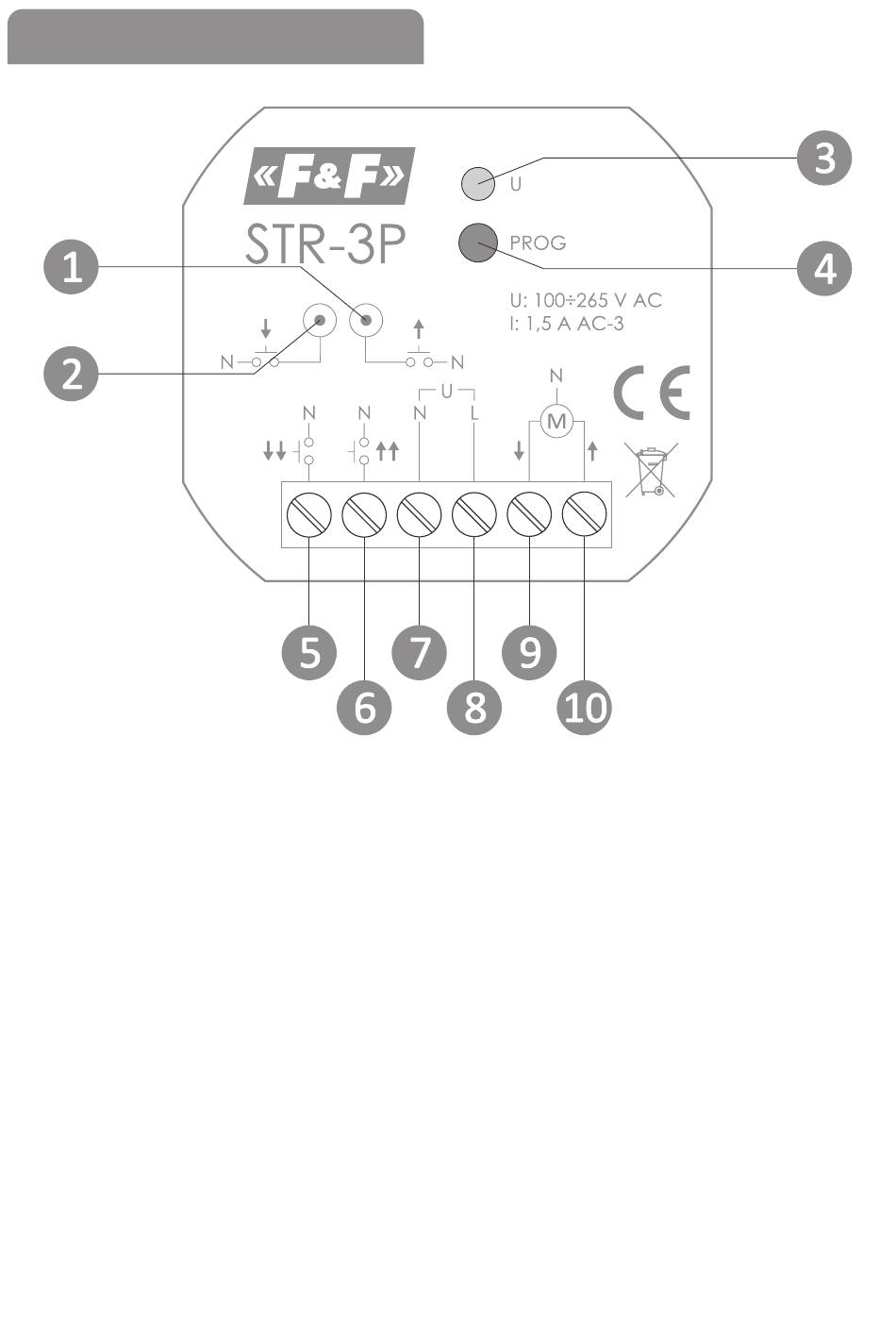

Description of terminals

1 local control – �� ↑ direction
local control – ���� ↓ direction
2
3 LED indication of power and programming
4 time programming button
5 central control – ���� ↓ ↓ direction
central control – �� ↑ ↑ direction
6
7 controller power supply N
8 controller power supply L
9 motor power supply – ���� ↓ direction
motor power supply – �� ↑ direction
10
