F&F STR-3 Pico Manual

Miniature roller blind controller for 230 v ac motors
Hide thumbs

Advertisement

Quick Links

Download this manual

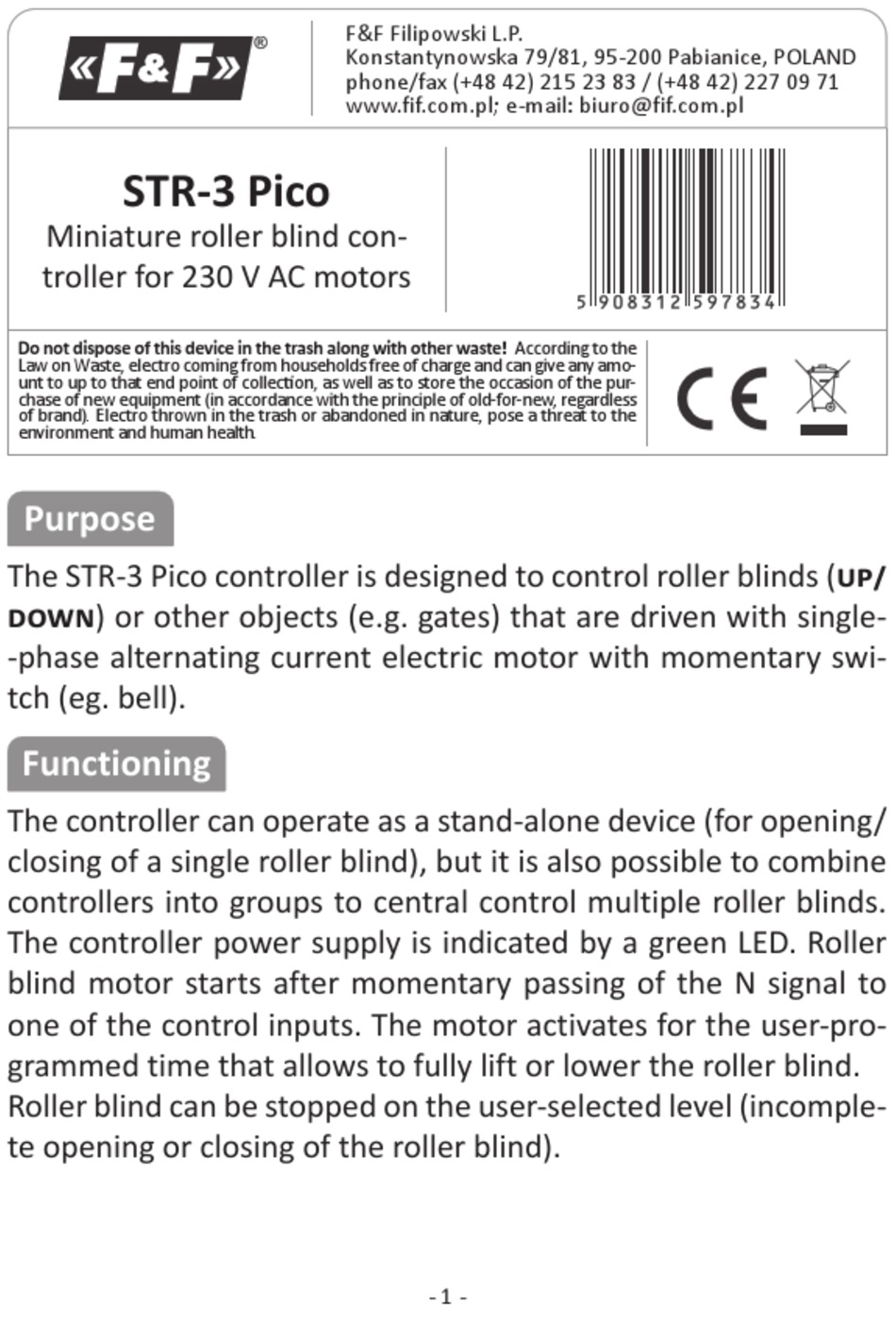

STR-3 Pico
Miniature roller blind con-
troller for 230 V AC motors
Do not dispose of this device in the trash along with other waste! According to the
Law on Waste, electro coming from households free of charge and can give any amo-
unt to up to that end point of collec� on, as well as to store the occasion of the pur-
chase of new equipment (in accordance with the principle of old-for-new, regardless
of brand). Electro thrown in the trash or abandoned in nature, pose a threat to the
environment and human health.
Purpose
The STR-3 Pico controller is designed to control roller blinds (���
����) or other objects (e.g. gates) that are driven with single-
-phase alternating current electric motor with momentary swi-
tch (eg. bell).
Functioning
The controller can operate as a stand-alone device (for opening/
closing of a single roller blind), but it is also possible to combine
controllers into groups to central control multiple roller blinds.
The controller power supply is indicated by a green LED. Roller
blind motor starts after momentary passing of the N signal to
one of the control inputs. The motor activates for the user-pro-
grammed time that allows to fully lift or lower the roller blind.
Roller blind can be stopped on the user-selected level (incomple-
te opening or closing of the roller blind).
F&F Filipowski L.P.
Konstantynowska 79/81, 95-200 Pabianice, POLAND
phone/fax (+48 42) 215 23 83 / (+48 42) 227 09 71
www.fif.com.pl; e-mail: biuro@fif.com.pl
- 1 -

Advertisement

loading

Related Manuals for F&F STR-3 Pico

Summary of Contents for F&F STR-3 Pico

  • Page 1 Electro thrown in the trash or abandoned in nature, pose a threat to the environment and human health. Purpose The STR-3 Pico controller is designed to control roller blinds (��� ����) or other objects (e.g. gates) that are driven with single- -phase alternating current electric motor with momentary swi- tch (eg.
  • Page 2 Control Controller control inputs are divided into two groups: local con- trol and central control. ����� ������� Depending on how you connect the controller, it can operate in one or two local keys mode. One local key Local control input ���� is connected permanently to the N line.
  • Page 3 Memory of direction applies both to local and central control. For example, if the controller carries out a ������� �� command, then the next press of a local key will move the roller blind down. Memory of direction is not retained after a power fail- ure.
  • Page 4 ������� ���� key can also close and lock the roller blind in the closed position. If the ������� ���� key is pressed and left in the �� position, the controller will close the roller blind and will not allow for its opening until the �������...
  • Page 5 4. Switch on the power supply. 5. Program the time of lifting/lowering the roller blind. Scheduling time of activation Time of activation can be programmed upon the assumed time of roller blind operation or by activating the roller blind for the test run: Scheduling for the specified time 1.
  • Page 6 If during the first 30 seconds of the learning mode (slow flashing of U LED) the time measuring will not start (the ���� key is pressed or the roller blind is activated from the local control input), the controller will exit the learn- ing mode.

  • Page 7: Wiring Diagram

    Wiring diagram - 7 -...

  • Page 8: Description Of Terminals

    Description of terminals controller power supply N controller power supply L local control – ���� ↓ direction central control – ���� ↓ ↓ direction central control – �� ↑ ↑ direction local control – �� ↑ direction motor power supply – ���� ↓ direction motor power supply –...

  • Page 9: Application Examples

    Technical data power supply 185÷265 V AC maximum load current (AC-1/AC-3) 3 A/1,5 A power consumption standby 0.15 W 0.4 W control triggered N level switch-on time (adjustable) 1 s÷5 min. power and programming indication green LED working temperature -25÷50°C terminal 2.5 mm²...

  • Page 10: Warranty

    Warranty F&F products are covered by a 24-month warranty from the date of purchase. The warranty is only valid with proof of purchase. Contact your dealer or contact us directly. CE declaration F&F Filipowski L.P. declares that the device is in conformity with the essential requirements of The Low Voltage Directive (LVD) 2014/35/EU and the Electromagnetic Compatibility (EMC) Directive 2014/30/UE.
