Operation and Maintenance Manual
Enerpac LPL7002C100

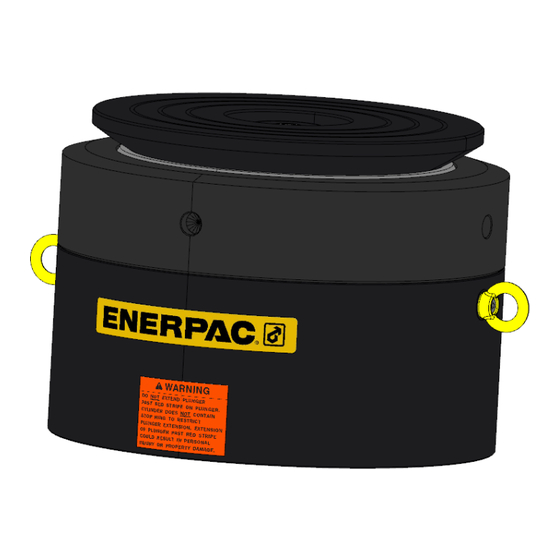

700-Ton, 50-mm stroke Hydraulic Cylinder
Document Number: L4764
Document Revision: A
Document Revision Date: 24-JUL-2023
Document Language: ENGLISH EN
To reduce the risk of injury, user must read and understand this document before use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LPL7002C100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Enerpac LPL7002C100

Summary of Contents for Enerpac LPL7002C100

  • Page 1 Operation and Maintenance Manual Enerpac LPL7002C100 700-Ton, 50-mm stroke Hydraulic Cylinder Document Number: L4764 Document Revision: A Document Revision Date: 24-JUL-2023 Document Language: ENGLISH EN To reduce the risk of injury, user must read and understand this document before use.
  • Page 3 Enerpac for quality tools, services and solutions. For additional information, visit www.enerpac.com. WARRANTY Refer to the Enerpac Global Warranty document for terms and conditions of the product warranty. Such warranty information can be found at www.enerpac.com. NAMEPLATE L4764_a...

  • Page 4: Table Of Contents

    4.3 PRODUCT DESCRIPTION ........................6 4.4 TECHNICAL SPECIFICATIONS ......................6 5. OPERATION ..............................6 5.1 INITIAL SETUP ............................6 5.2 OPERATING LPL7002C100 ........................8 6. INSPECTION, MAINTENANCE & STORAGE ....................8 7. RELIEVING TRAPPED PRESSURE ......................9 8. PARTS LIST ..............................10 8.1 EXPLODED VIEWS ..........................

  • Page 5: Safety

    Property damage could also occur. tags, or decals. In the event that any questions or • Always wear protective head-wear, ear protectors, concerns arise, contact Enerpac or a local Enerpac footwear and gloves (at a minimum rigger type distributor for clarification.

  • Page 6: Crush And Pinch Point Hazard

    High pressure oil leaks can penetrate to fit properly and to withstand high loads. Non- the skin, resulting in serious injury. Enerpac parts may break or cause the product to • Never strike the tool while it is pressurized or under malfunction.

  • Page 7: Compliance Statement(S)

    CE and UKCA. Enerpac declares that the product has been tested and conforms to applicable standards and the product is compatible to all EU and UK Requirements. Copies of the EU Declaration as well as the UK Self-Declaration are enclosed with each shipment.

  • Page 8: Technical Product Data

    603.4 lbs LPL7002C100 is a single-acting hydraulic cylinder with Side Load Capacity hydraulic advance and load return. LPL7002C100 is designed for 13,779 psi [950 bar] 5. Operation maximum working pressure. This cylinder has a 50 mm stroke. 5.1 Initial Setup The cylinder contains a maximum stroke indicator line and an overflow plug to avoid exceeding the cylinder’s...
  • Page 9 Follow the pump manufacturer instructions when adding oil to the pump reservoir. To avoid overfilling, be certain Use of Enerpac HF ISO 32 hydraulic oil is recommended. that the cylinder plunger is fully retracted before adding Enerpac HF oil is available at your local Enerpac any oil.

  • Page 10: Operating Lpl7002C100

    CAUTION Use of LPL7002C100 cylinder on surfaces such as sand, mud or dirt may result in loss of load and/or damage to cylinder. 5.2 Operating LPL7002C100 Operation procedures will vary, depending on hydraulic pump type, valve configuration and other factors. For detailed operating instructions and related information, refer to the instruction sheet included with your pump.

  • Page 11: Relieving Trapped Pressure

    • If repairs are required, refer to the Enerpac website to find the repair parts sheet applicable to each cylinder model. NOTICE Hydraulic equipment must only be serviced by a qualified hydraulic technician. For repair service, contact the Enerpac Authorized Service Center in your area.

  • Page 12: Parts List

    8. Parts List 8.1 Exploded Views Figure 7: LPL7002C100 exploded view Item Nº. Description Part Number Red Strip BSS5145D Overflow Port BSS6348D Locknut C230037008-20 Cylinder Base C230037030-20 Plunger C230037040-20 Saddle C230037045-20 Washer CATS1000108 Screw CBE1641028-1D Warning Decal CU765026 Plunger Caution Warning Decal...

  • Page 13: Troubleshooting

    For repair service, contact your nearest Enerpac Authorized Service Center. As required, also refer to the troubleshooting information provided with your hydraulic pump or power unit.
  • Page 14 © 2023 Enerpac, All Rights Reserved.
