Assa Abloy Norton 7700ST Installation Instructions

ASSA ABLOY
NOTE: For special applications a separate door and frame preparation template is packed with these instructions.
LH – Left Hand Door
RHR – Right Hand Reverse
RH – Right Hand Door
LHR – Left Hand Reverse
Closer Assembly
Arm Assembly
Copyright © 1991, 2014 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
Installation Instructions
An incorrectly installed or improperly
adjusted door closer can cause property
damage or personal injury. These instructions
should be followed to avoid the possibility
of misapplication or misadjustment.
Use this instruction sheet for installation sequence and closer adjustments only.
• For closers with or without Delayed Action closing feature suffix "DA"
• Use of an auxiliary door stop is always recommended.
Components:
Tube
Power Adjustment Nut
9/64"
Hex Drive
Socket Head
Screw
Stop (Push) Side
CAUTION
* These units are not permitted to be installed in fire door assemblies.
Pull
Side
Push
Side
Slide Track
1
Slide Track Door Closers
Non Hold Open Models
ASSA ABLOY
7700ST - 7500ST
PS7700ST - PS7500ST
Hold Open Models*
7700ST-H - 7500ST-H
PS7700ST-H - PS7500ST-H

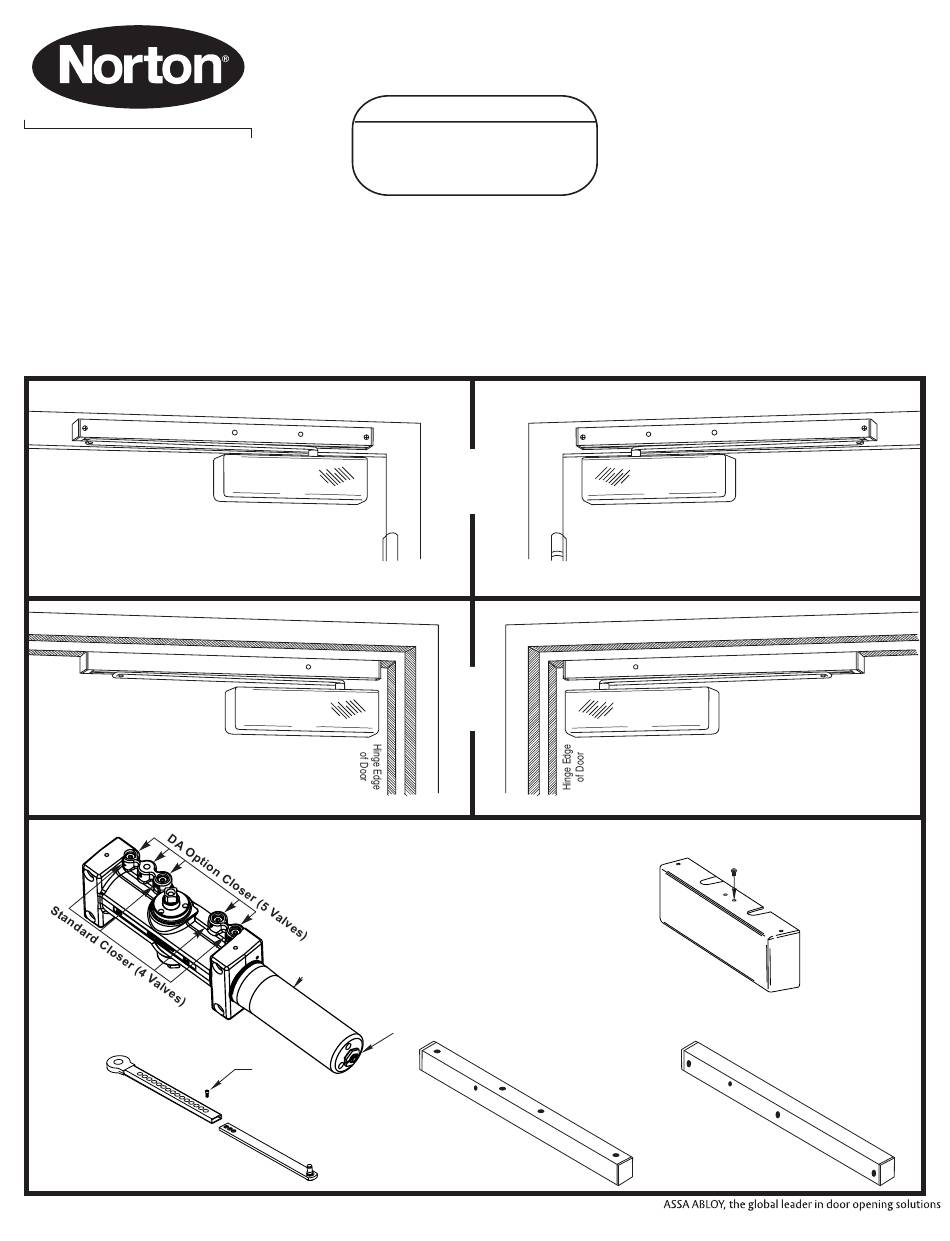

Right Hand Door – RH
Left Hand Reverse – LHR
Left Hand Door – LH
Right Hand Reverse – RHR
2 Cover Screws
Cover
with Insert
Hinge (Pull) Side
Slide Track
