It is possible to have errors in several sensors simultaneously.
Error states are indicated when the equipment is worn on body.
If some of the LEDs are green, the sensor in question is ok.

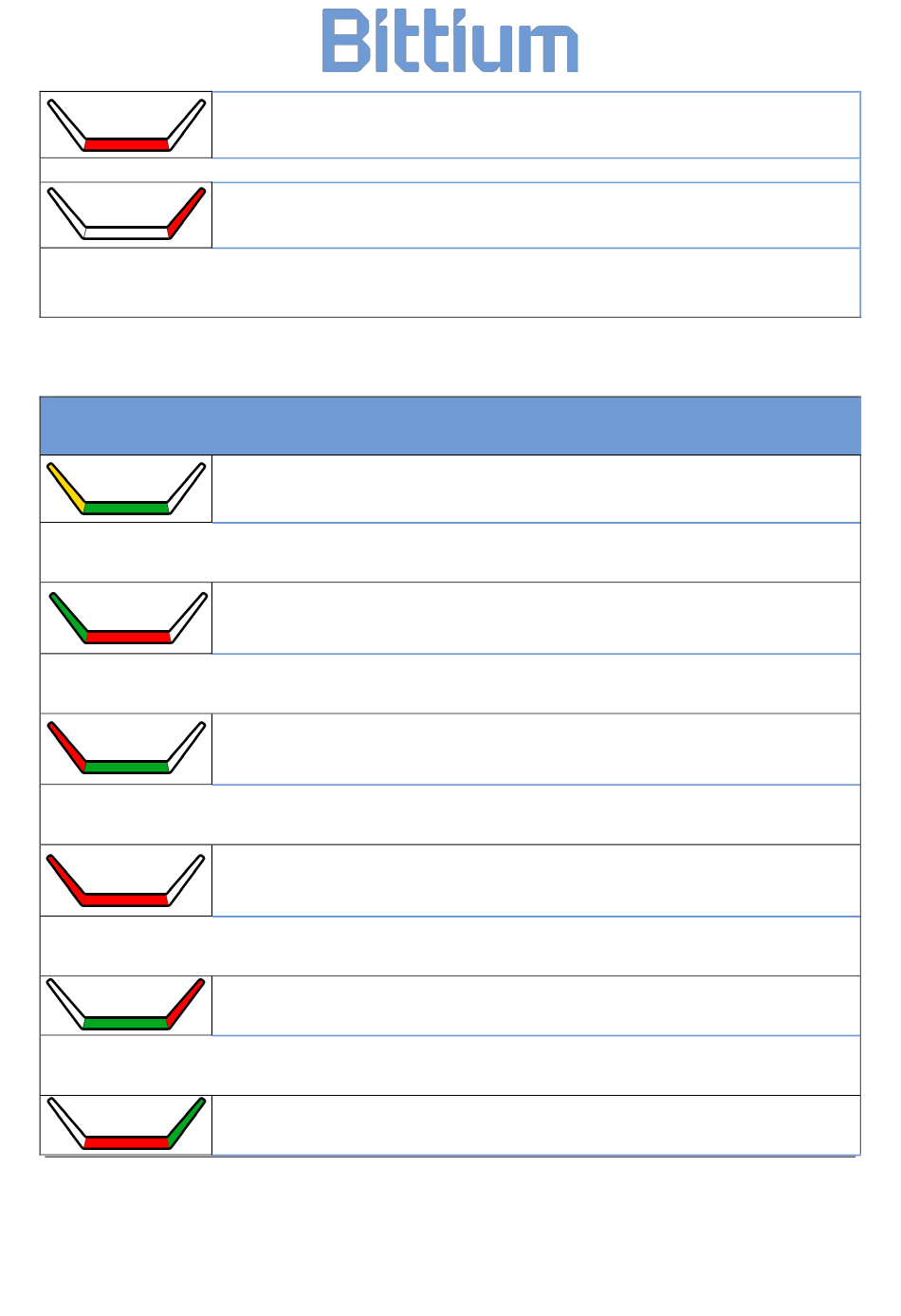

Table 7 Respiro 4 sensor configuration LED indications in error states
4 sensor configuration (2 RIP belts with ECG), 2 LEDs on for 1 second cycling from
left to right
D0000009279 Operating Instructions for healthcare professionals
Version 2.0
Center LED red: Nasal cannula error. Check connection.
Right LED red: RIP belt(s) error. Check RIP belt(s) as well as the connection between
Respiro and the patch (press studs).
Left LED yellow, center green: Pulse oximeter is connected but finger is not inserted
in the sensor. Check connection.
Left LED green, center LED red: Nasal cannula error. Check connection.
Left LED red, center LED green: Pulse oximeter error. Check connections.
Left and center LED red: Pulse oximeter and nasal cannula error. Check connections.
Center LED green, right LED red: RIP belts error. Check RIP belts.
Center LED red, right LED green: ECG error. Check electrode.
