where inspiration flows
This instruction booklet covers model:
NOT-232-CP, SYN-232-CP, ZOO-232-CP
Wedmore Road, Cheddar, Somerset, England BS27 3EB
tel 01934 744466.
aftersales @ vado.com
www.vado.com
Version 1, 1-3-22
Vado
fax 01934 744345
Installation Guide

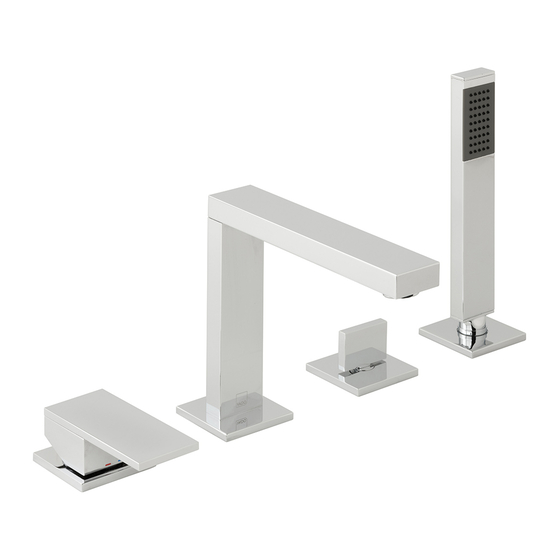

4 Hole Bath Shower Mixer
NOT-232-CP
SYN-232-CP
ZOO-232-CP
Note: for illustrative purposes only the NOT model is shown.
Please follow the same procedure to install all the other models.
Keep for future reference
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for VADO NOT-232-CP
Summary of Contents for VADO NOT-232-CP
- Page 1 NOT-232-CP SYN-232-CP This instruction booklet covers model: ZOO-232-CP NOT-232-CP, SYN-232-CP, ZOO-232-CP Note: for illustrative purposes only the NOT model is shown. Vado Please follow the same procedure to install all the other models. Wedmore Road, Cheddar, Somerset, England BS27 3EB tel 01934 744466.
- Page 2 Contents Notes Important information ..........3 General installation ...........3 Operating Specifications ...........3 Contents of packaging ..........4 Notion Dimensions ............5 Synergie Dimensions..........6 Zoo Dimensions ............7 Installation - Quick guide ..........8 Installation mixer ............11 Installation diverter ..........12 Installation spout .............13 Installation - Shower ..........14...
- Page 3 Installation - shower Important - please read Position the connecting tube into the hole, Please read these instructions carefully before starting installation and keep for from the underside slide on the rubber future reference. washer, metal washer and then the nut. Remove all packaging and check the product for missing parts or damage before Shower Ensure the shroud is in the correct...
- Page 4 Contents of Packaging Installation - Spout Note: for illustrative purposes only the NOT model is shown. Drill a 44mm diameter hole in the required position. Position the spout, from the underside slide on the rubber washer, metal washer and then the nut. Ensure the correct position/alignment.
- Page 5 Installation - diverter Valve dimensions - NOT Drill a 44mm diameter hole in the required position. Control Unscrew and remove the lip from valve. handle Feed the diverter valve up through the deck hole, screw on the lip and tighten Shroud with a spanner.
- Page 6 Valve dimensions - SYN Installation - mixer NOTE: Please refer to your relevent dimensons before starting the installation. Before installing your new mixer, flush through the pipe work to ensure removal of debris, turn off the water supply. Shroud Drill a 46mm diameter hole in the required Mixer position.
- Page 7 Installation - Quick guide Valve dimensions - ZOO ½"...
- Page 8 Installation - Quick guide Installation - Quick guide Ø44 Ø44 Ø46...
