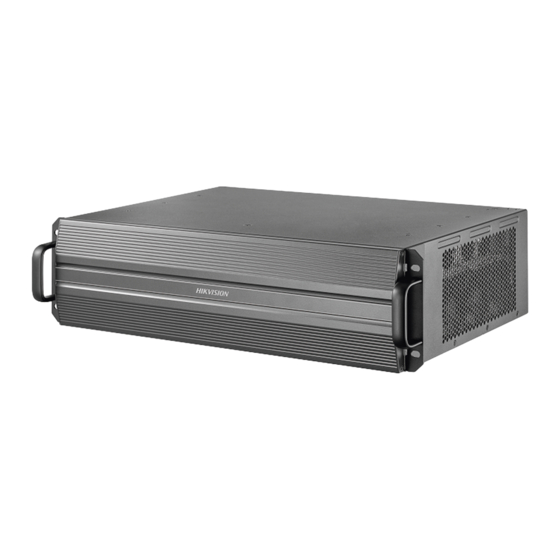

- Page 1 Multi-Functional Video Center Quick Start Guide...
- Page 2 Document, which may include licenses obtained from third parties. ● Any part of the Document, including text, pictures, graphics, etc., belongs to Hikvision. No part of this Document may be excerpted, copied, translated, or modified in whole or in part by any means without written permission.
- Page 3 Multi-Functional Video Center • Quick Start Guide HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS INFECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.
- Page 4 Multi-Functional Video Center • Quick Start Guide Preface Applicable Models This manual is applicable to the DS-B31 series multi-functional video center. Default Parameters Type Default Parameter Device Login user name: admin IP address: 192.0.0.64 SSH connection To improve system security, it is highly recommended to change password regularly. In order to protect your privacy and corporate data and avoid network security issues, it is recommended to set strong password that meets security requirements.
- Page 5 Multi-Functional Video Center • Quick Start Guide Safety Instructions The device must be connected to an earthed mains socket-outlet. The socket-outlet shall be installed near the device and shall be easily accessible. Do not touch the bare components (such as the metal contacts of the inlets) and wait for at least 5 minutes, since electricity may still exist after the device is powered off.
-
Page 6: Table Of Contents
Multi-Functional Video Center • Quick Start Guide TABLE OF CONTENTS Chapter 1 Introduction ....................... 1 Overview ................................1 Packing List................................1 Appearance ................................2 1.3.1 Host System ............................... 2 1.3.2 Service Board ............................. 4 Chapter 2 Installation ......................... 6 Safety Precautions ..............................6 Install the Device in the Rack .......................... -
Page 7: Chapter 1 Introduction
Multi-Functional Video Center • Quick Start Guide Chapter 1 Introduction Overview Designed with reference to the Advanced Telecommunications Computing Architecture (ATCA), the Multi-Functional Video Center (hereinafter referred to as the MVC or device) supports matrix switching of analog and digital videos, video encoding and decoding, and network real-time preview. -
Page 8: Appearance
Multi-Functional Video Center Quick Start Guide Service Board Packing List Item Quantity Packed Item Quantity Packed In Each Each decoding decoding output Cable tie Cable tie encoding board board M3 × 7 screw M3 × 7 screw HDMI snap fitting HDMI snap fitting The service board packing list varies by the device configuration. -
Page 9: Service Board
Multi-Functional Video Center Quick Start Guide Rear View of Device Name Description Main control board slot Insert the main control board. Insert the encoding and decoding boards or Service board slot decoding output boards. Power socket Connects to the power cord. Power supply slot Insert the power supply module. - Page 10 Multi-Functional Video Center Quick Start Guide Name Description ALM LED Steady red: the board is abnormal. LINK LED Steady green: the board runs normally. PWR LED Steady green: the board is powered on normally. STAT LED Steady green: the board runs normally. Network port Connects to the network cable.
- Page 11 Multi-Functional Video Center Quick Start Guide No. Name Description STAT LED Steady green: the board runs normally. PWR LED Steady green: the board is powered on normally. HDMI input port Supports 2 channels of HDMI video input. (HDMI IN) HDMI output port...
-
Page 12: Chapter 2 Installation
Multi-Functional Video Center • Quick Start Guide Chapter 2 Installation Safety Precautions As a high-precision, system-level electronic product, the device should be installed and maintained by professionals. In order to avoid personal and property injury, please read the safety precautions in this section carefully before installation. -
Page 13: Install The Device In The Rack
Multi-Functional Video Center Quick Start Guide Power Supply Requirements The device supports 100 VAC to 240 VAC@50/60 Hz power supply. To ensure the stable operation of the device, it is recommended to install UPS for power supply. Anti-Interference Requirements ... -
Page 14: Install The Hdmi Bracket
Multi-Functional Video Center Quick Start Guide Install the Device in the Rack Install the HDMI Bracket Align the HDMI bracket (1) with the lower side of the HDMI signal output port on the main control board (3). Use two M3 × 5 screws (2) to secure the two sides of the HDMI bracket. Install the HDMI Bracket... -
Page 15: Connect Cables
Multi-Functional Video Center Quick Start Guide The HDMI bracket supports reverse installation. When the HDMI bracket is reversely installed, you can connects HDMI cables of only one layer. Connect Cables Connecting the grounding cable can release the excessive voltage and current induced by lightning shock. -
Page 16: Connect The Hdmi Cable
Multi-Functional Video Center Quick Start Guide Connect the other end of the grounding cable to the grounding terminal (1) of the device. Connect the Grounding Cable to the Ground For the transmission of audio and video signals, purchase HDMI cables and connect them to the following boards: ... -
Page 17: Connect The Network Cable
Multi-Functional Video Center Quick Start Guide Connect HDMI Cable to a Service Board The device is connected to the network through networking equipment such as switches. It is recommended to use the CAT 6 Ethernet cable to connect the network port of the device to the network port of the networking equipment. -
Page 18: Chapter 3 Get More Information
Multi-Functional Video Center • Quick Start Guide Chapter 3 Get More Information Scan the QR code below to view the user manual. The following operations require network data traffic and are recommended to be performed in a Wi-Fi environment. User Manual... - Page 19 UD37484B-D...
