  • Page 1 Video Wall Controller Quick Start Guide...
  • Page 2 Document, which may include licenses obtained from third parties. ● Any part of the Document, including text, pictures, graphics, etc., belongs to Hikvision. No part of this Document may be excerpted, copied, translated, or modified in whole or in part by any means without written permission.
  • Page 3 Video Wall Controller • Quick Start Guide HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS INFECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.
  • Page 4 Video Wall Controller • Quick Start Guide Preface Applicable Models This manual is applicable to the DS-C60S series video wall controller. Default Parameters Type Default Parameter  Device Login user name: admin  IP address: 192.0.0.64 SSH connection To improve system security, it is highly recommended to change password regularly. In order to protect your privacy and corporate data and avoid network security issues, it is recommended to set strong password that meets security requirements.
  • Page 5 Video Wall Controller • Quick Start Guide Safety Instructions  The device must be connected to an earthed mains socket-outlet.  The socket-outlet shall be installed near the device and shall be easily accessible.  Do not touch the bare components (such as the metal contacts of the inlets) and wait for at least 5 minutes, since electricity may still exist after the device is powered off.

  • Page 6: Table Of Contents

    Video Wall Controller • Quick Start Guide TABLE OF CONTENTS Chapter 1 Introduction ....................... 1 Overview ................................1 Packing List................................1 Appearance ................................1 1.3.1 Host System ............................... 1 1.3.2 Service Board ............................. 3 Chapter 2 Installation ......................... 6 Safety Precautions ..............................6 Install a Service Board ............................

  • Page 7: Chapter 1 Introduction

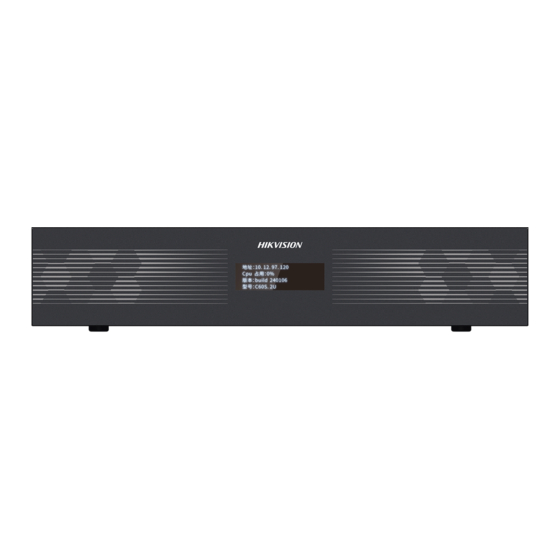

    Video Wall Controller • Quick Start Guide Chapter 1 Introduction Overview As a new-generation FPGA-based pure hardware image processing device, the video wall controller (hereinafter referred as the device) supports the input, processing, and output of multi-channel HD and ultra-HD signals. The device adopts the structure of main control board, input boards, and output boards to achieve multi-screen management.

  • Page 8: Service Board

    Video Wall Controller  Quick Start Guide Rear View of Device Name Description Main control board slot (M) Insert the main control board. Service board slot (S1 and S2) Supports only input boards. Service board slot (S3 and S6) Supports both input and output boards. Service board slot (S4 and S5) Supports only output boards.
  • Page 9 Video Wall Controller  Quick Start Guide Name Description PWR LED Steady green: all boards are powered on normally. ACT LED Flashing green: the board runs normally. Audio input port (LINE IN) Connects to the active audio, such as active microphone. Connects to the audio playback device with the Audio output port (LINE OUT) amplifier.
  • Page 10 Video Wall Controller  Quick Start Guide Input Board Input Board No. Name Description Supports 2 channels of 4K HDMI input. The maximum input 4K HDMI input board resolution of each port is 4092 × 2160@60 Hz. Supports 4 channels of HDMI input. The maximum input resolution 2K HDMI input board of each port is 1920 ×...
  • Page 11 Video Wall Controller  Quick Start Guide Output Board Output Board Name Description Provides 2 HDMI output ports for connecting to the HDMI ports of the display devices.  In the default copy mode, the board supports 1 channel of 4K HDMI output.

  • Page 12: Chapter 2 Installation

    Video Wall Controller • Quick Start Guide Chapter 2 Installation Safety Precautions As a high-precision, system-level electronic product, the device should be installed and maintained by professionals. In order to avoid personal and property injury, please read the safety precautions in this section carefully before installation.

  • Page 13: Install A Service Board

    Video Wall Controller  Quick Start Guide Power Supply Requirements The device supports 200 VAC to 240 VAC@50 Hz power supply. To ensure the stable operation of the device, it is recommended to install UPS for power supply. Anti-Interference Requirements ...
  • Page 14 Video Wall Controller  Quick Start Guide Board Configuration at Factory Insert one input board or output board (2) into any empty slot at the bottom of the device, and use the screws (1) to secure the board to the slot. Install One Service Board Use the same method to insert another input board or output board (3) into the remaining empty slot at the bottom of the device.
  • Page 15 Video Wall Controller  Quick Start Guide To insert another service board, use a screwdriver to loosen the screws (4) on both sides of a baffle and then pull the baffle out of the slot. Remove the Baffle If you do not insert a service board into the slot, keep the baffle in the slot to avoid affecting the ventilation.

  • Page 16: Install The Device In The Rack

    Video Wall Controller  Quick Start Guide Install Three Service Boards Install the Device in the Rack Prepare the rack by yourself. Use the provided M3 × 6 screws (2) to install the mounting brackets (1) to two sides of the device front panel.

  • Page 17: Connect Cables

    Video Wall Controller  Quick Start Guide Install the Device in the Rack Connect Cables Connecting the grounding cable can release the excessive voltage and current induced by lightning shock. Please select the most suitable connection mode to protect the grounding cable according to the installation environment.
  • Page 18 Video Wall Controller  Quick Start Guide Connect the Grounding Cable to the Grounding Row Without Grounding Row Drive an angle steel (4) or steel pipe into the ground (3) of at least 0.5 m. Weld one end of the grounding cable (2) to the angle steel or steel pipe and treat the welding points with corrosion protection (electroplate or coating).

  • Page 19: Connect The Network Cable

    Video Wall Controller  Quick Start Guide The device is connected to the network through networking equipment such as switches. It is recommended to use the CAT 6 Ethernet cable to connect the network port of the device to the network port of the networking equipment.

  • Page 20: Chapter 3 Get More Information

    Video Wall Controller • Quick Start Guide Chapter 3 Get More Information Scan the QR code below to view the user manual. The following operations require network data traffic and are recommended to be performed in a Wi-Fi environment. User Manual...
  • Page 21 UD37387B-B...
