Summary of Contents for HIKVISION DS-K2M0016A
- Page 1 Distributed Elevator Controller User Manual UD03830B...
- Page 2 This Manual is subject to domestic and international copyright protection. Hangzhou Hikvision Digital Technology Co., Ltd. (“Hikvision”) reserves all rights to this manual. This manual cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision.
- Page 3 Distributed Elevator Controller User Manual Regulatory Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 4 Distributed Elevator Controller User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into Warnings and Cautions: Warnings: Neglecting any of the warnings may cause serious injury or death. Cautions: Neglecting any of the cautions may cause injury or equipment damage.
-
Page 5: Table Of Contents
Distributed Elevator Controller User Manual Contents Chapter 1 Overview..........................1 Introduction ............................1 Main Features ............................ 1 Chapter 2 Appearance ..........................2 Device Appearance Introduction ....................... 2 Indicator Introduction ........................3 DIP Switch Introduction ........................3 Chapter 3 Installation ..........................4 Installation without Case ........................4 Installation with Case ......................... -
Page 6: Chapter 1 Overview
Distributed Elevator Controller User Manual Overview Chapter 1 1.1Introduction The elevator controller contains master elevator controller and distributed elevator controller. It can be applied to buildings, public areas and so on. The distributed elevator controller can communicate with the master elevator controller and the relay via RS-485. -
Page 7: Chapter 2 Appearance

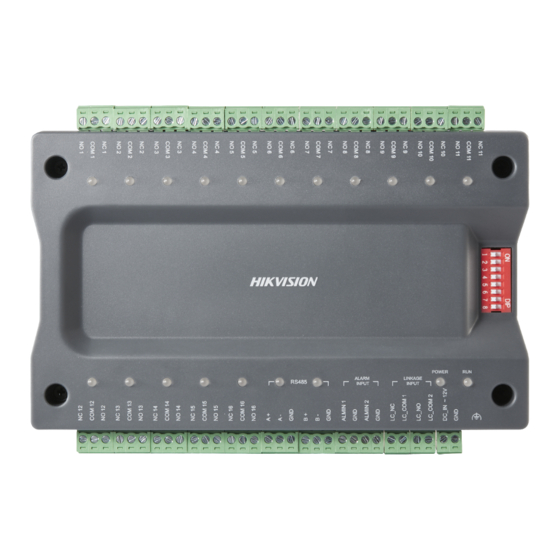

Distributed Elevator Controller User Manual Appearance Chapter 2 2.1Device Appearance Introduction The device appearance introduction is shown as follows: Table 2. 1 Device Appearance Description Description Tamper-Proof Interface Indicator Relay Terminal DIP Switch GND Thread Interface Power Input (12VDC) Linkage Output Terminal Alarm Input Terminal RS-485 Terminal Relay Terminal... -
Page 8: Indicator Introduction
Distributed Elevator Controller User Manual 2.2Indicator Introduction The indicator information is as follows: Table 2. 2 Indicator Description Description Indicator Relay NC Closed Relay NO Closed Solid Green Serial Port Not Communicating Serial Port Communicating Solid Green Power On Solid Green Running Properly Flashing Green Running Exception... -
Page 9: Chapter 3 Installation
Distributed Elevator Controller User Manual Installation Chapter 3 Before your start: The minimum bearing weight of the wall or other places should be three times heavier than the device weight. Dial-up before you install. For details, see Section 2.3 DIP Switch Introduction. 3.1Installation without Case Steps: Drill holes on the wall or other places according to the holes on the guide rail. - Page 10 Distributed Elevator Controller User Manual...
-
Page 11: Chapter 4 Device Wiring
Distributed Elevator Controller User Manual Device Wiring Chapter 4 The wiring of the device upper side is as follows: Notes: Relay NO Wiring: Wire the call elevator distributed controller and the call elevator relay, or wire the auto button distributed controller and the auto button relay to make sure the call elevator control and the auto button elevator control is invalid when powering off. -
Page 12: Chapter 5 Appendix：device Dimensions
Distributed Elevator Controller User Manual Appendix：Device Dimensions Chapter 5 The device dimensions are as follows: 0100001061205...
