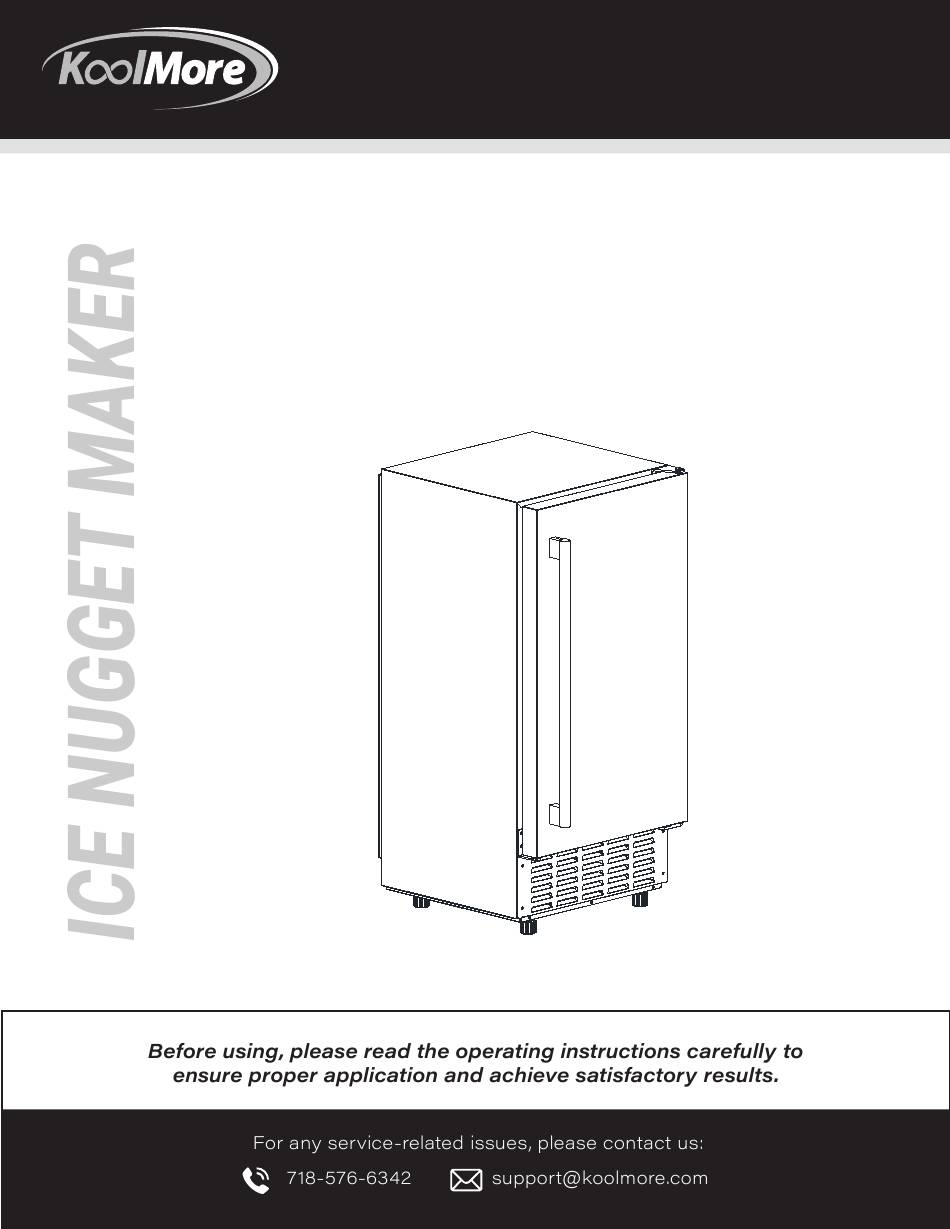

- Page 1 USER MANUAL KoolMore Built-in Residential Pearl Ice Nugget maker Model: KM-BIM66-NSS...
- Page 2 Stay informed with the latest information for your KoolMore Appliance. If you need any assistance or have questions, our customer support team is here to help.
- Page 3 SAFETY • When using electrical appliances, basic safety precautions should be followed to reduce the risk of fire, electric shock, and injury to persons or property. Read all instructions before using any appliance. • Use this appliance only for its intended purpose as described in this owner's manual. This ice-maker must be properly installed in accordance with the installation instructions before it is used.
- Page 4 or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. WARNING: Children should be supervised to ensure that they do not play with the appliance. WARNING: This appliance must be earthed.
-
Page 5: Unpacking Your Ice Maker
INSTALLATION UNPACKING YOUR ICE MAKER 1. Remove the exterior and interior packaging. Check if all the accessories are inside or not including the instruction manual, ice scoop, white water inlet pipe, the water draining pipe, the quick connector (connecting a 1/4-inch connector with a 1/2-inch one), etc. If any parts are missing, please contact our customer service. -
Page 6: Electrical Requirement & Connections
The ice maker requires a continuous water supply with 1-8 bar pressure as required in above specification table. The temperature of the water feeding into the ice maker should be between 41°F and 77°F for proper operation. ELECTRICAL REQUIREMENT & CONNECTIONS WARNING: THIS UNIT MUST BE EARTHED. - Page 7 STEP 1: Remove the STEP 2: Insert the tape first water hose Then install back the clipper Water inlet port on the unit back White water hose(accessory) Remove the clipper first First insert the water hose inward completely Connect the water supplying hose to the unit Step 1:First remove the tape on the water inlet port for water supply (indicated in the following illus- tration “B”) located at unit back, then use your other hand’s finger to press the out circle.
- Page 8 Normal Sounds Your new ice maker may make sounds that are not familiar to you. Most of the new sounds are normal. Hard surfaces like the floor, walls and cabinets can make the sounds seem louder than they actually are. The following describes the kinds of sounds that might be new to you and what may be making them.
-
Page 9: Operation Your Unit
OPERATION OPERATION YOUR UNIT Operation button and display area diagram Fig.3 OPERATION DISPLAY OPERATION AREA AREA AREA TIMER CLEAN ON/OFF OPERATION OF ICE MAKING PROCESS Quickly press this button once, to enter the Timer setting program; And TIMER press this button for more than 5 seconds, to enter the Cleaning program. CLEAN When the unit is off, press this button to turn on the unit;... - Page 10 Automatic self-cleaning symbol display. 1. Press “TIMER CLEAN” button on control panel for more than 5 seconds, to enter the self-Cleaning program. 2. The default cleaning time is 15 minutes. 3. Press the “ON/OFF” button on control panel to cancel the self-cleaning program by force.
-
Page 11: Maintenance
MAINTENANCE CLEANING TIPS WARNING: Before carrying out any cleaning or maintenance operations, unplug the ice maker from the main power supply electricity. (EXCEPTION: Ice maker self-cleaning program). Do not use any alcohol or fume for cleaning / sanitize of the ice maker. It may cause cracks on the plastic parts. - Page 12 aceti c aci d 3. Appropriate amounts of acetic acid solution was added at the indicated positions.(Fig.5) 4. Reinstall the transparent windows to prevent water leakage, please ensure proper installation. 5. Press the cleaning button on the operation panel for more than 5 seconds to start the cleaning program, and the cleaning will end after 15 minutes.
- Page 13 end of every day, rinse the ice shovel and wipe the both sides of the door with a clean cloth. SEMI-MONTHLY CLEANING The ice shovel, ice bin, water tank, the ice-full detecting plate and the surface of the evaporator are to be cleaned by yourself semi-monthly according to interior cleaning program.
-
Page 14: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Solution “�� ❄ ” symbol is Stop the ice maker, fill water, and press lightening on and Lack of Water. “ICE/CLEAN” button again to restart the unit. the arrow flashes . Suggest you obtain the ice-cube. Remove the There is too much ice. -
Page 15: Circuit Diagram
CIRCUIT DIAGRAM Start Relay ELECTRICAL DIAGRAM Overload Protector Power Cover Motor PUMP AC Water Supply Pump Cover Motor Main Control PCB DC Fan Motor DC Water Inlet Valve Water Level Detecting Switch Swnsor For Ambient Temp Infrared Emission Water level detection for drainage infrared reception Disposal... - Page 16 At its sole discretion, Koolmore Supply Inc. may decide to replace the product. In such an event, your replacement appliance will carry the warranty for the remaining term of the original unit's warranty period.
