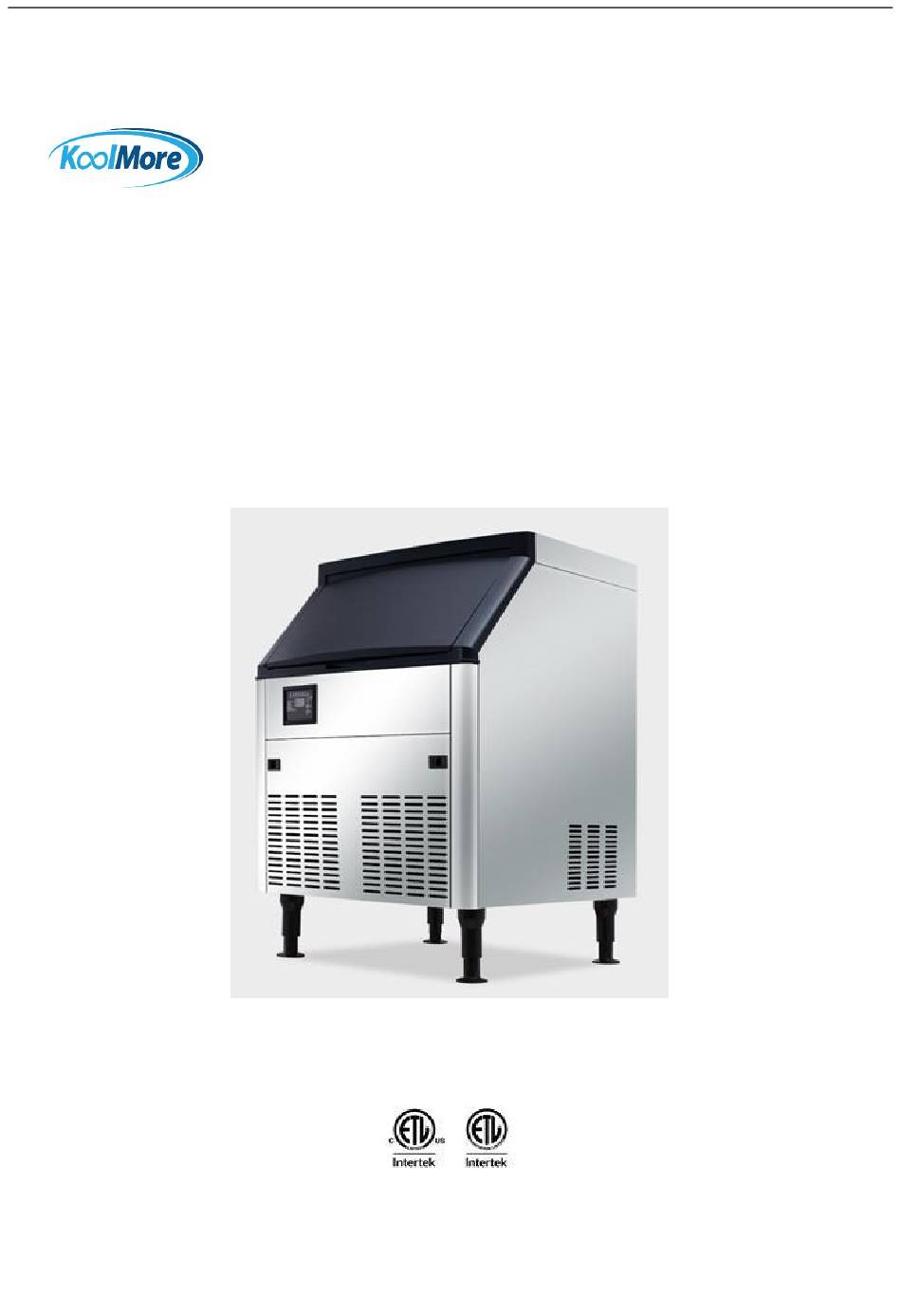

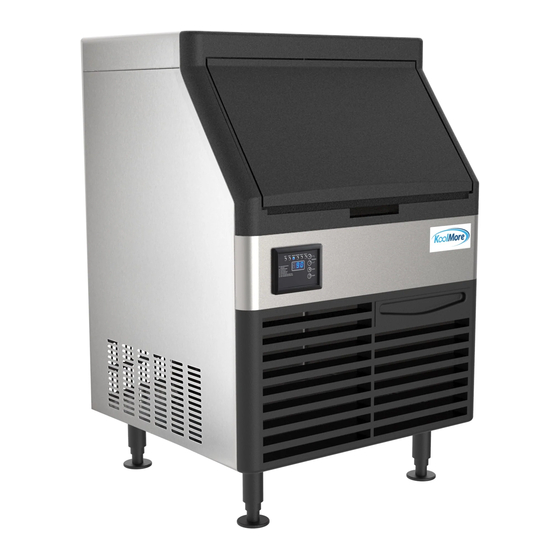

Commercial Undercounter Ice Maker
User Manual for Installation and Maintenance
Models: CIM-210 CIM-280
Thank you for purchasing a KoolMore product! If you are having trouble with your unit, for assembly assistance, missing
or damaged parts. Please contact customer service Phone: 718-576-6342 Email: support@koolmore.com
We are here to help.
[Type here]
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CIM-210 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KoolMore CIM-210

  • Page 1 User Manual for Installation and Maintenance Models: CIM-210 CIM-280 Thank you for purchasing a KoolMore product! If you are having trouble with your unit, for assembly assistance, missing or damaged parts. Please contact customer service Phone: 718-576-6342 Email: support@koolmore.com We are here to help.
  • Page 2: Table Of Contents

    Table of Contents Important Information ................................2 Warning and safety instruction.............................. 4 General ..................................... 2 Installation ....................................2 Location for Installation ..............................2 Schematic Diagram of Installation ..........................2 Installation Steps ................................6 Startup and Operation ..............................6 Operation Instruction ................................2 Instruction of Control Panel ..............................
  • Page 3 The label indicates a hazardous voltage. There is a risk of electric shock. The label indicates a hazardous voltage. There is a risk of electric shock. The label indicates rotating components inside. There is a risk of serious mechanical injury. The label indicates a flammable foaming agent “Cyclopentane”...
  • Page 4 Warning sign, special attention is required. Warning sign, special attention is required and operation is prohibite...
  • Page 5: Warning And Safety Instruction

    Warning and safety instruction  The ice machine must be placed on the This ice machine is not intended for use floor sufficient to supports its weight. by children, and those with physical Insufficient base cause weakness, slow response, or mental equipment fall over and cause injury.
  • Page 6: General

     –  – DANGER RISK FIRE CAUTION RISK FIRE EXPLOSION. FLAMMABLE EXPLOSION. DISPOSE OF PROPERLY REFRIGERANT USED. IN ACCORDANCE WITH FEDERAL OR REPAIRED ONLY TRAINED LOCAL REGULATIONS. FLAMMABLE SERVICE PERSONNEL. REFRIGERANT USED. PUNCTURE REFRIGERANT TUBING.  – CAUTION RISK FIRE ...
  • Page 7: Schematic Diagram Of Installation

    Schematic Diagram of Installation NPT THREADS...
  • Page 8: Installation Steps

    Installation Steps 1. Check if the ice machine is in good condition body. and the accessories are complete; check the Note: This machine is equipped with machine model and the machine nameplate. an inlet water filter. The filter will KEEP 2.
  • Page 9: Operation Instruction

     It takes about 10 to 20 minutes to make temperature of the evaporator and the ice making water is gradually decreasing; one batch ice, depending on the ambient temperature and the temperature of the  The fan is running normally, and there is water.
  • Page 10: Instruction Of Control Panel

    Instruction of Control Panel 1. LED Display: making process. Note: cleaning sanitizing  Self-check: Display “ini” code. chemicals used must be nickel safe  Preparing: Counts second upward 5. ON/OFF: Press this button to switch the machine OFF/ON.  Ice making: Counts seconds upwards prior the water reaching 32 degree F.
  • Page 11 Code Error Machine Status Protective shutdown recover Water Curtain failure or Ice Full Switch after the water curtain is reset Ice Harvest Overtime Protective shutdown High Temperature Protective shutdown Protective shutdown and retry Water Shortage Fault every 30 mins High Pressure Protective shutdown Error light comes on every 5 Contestation Sensor Open...
  • Page 12: Maintenance

    Maintenance  For the air-cooled ice maker, the condenser Note: Maintenance must be done by a qualified professional personal. should be cleaned every three weeks. Use a soft brush or a vacuum cleaner with a brush Warning: Before maintenance or manual to brush it up and down along the fin direction, clean, be sure to cut off the water source to avoid damage to the fins and further...
  • Page 13 “clean” button again, the ice maker will do manually followed by the clean and sterilizing process instruction. Push the auto sterilizing for about 15 minutes. “clean” button again, the ice maker will do Please spray sterilizing auto clean for about 15 minutes. Please evaporator at the mean time to insure a spray clean the evaporator to insure a...
  • Page 14: Service Call

    Service Call  If the LED on the display panel is blank or If the ice machine works abnormally, please “OFF”, check whether the plug and socket confirm below before making a service call: are normal, and whether the power supply 1.
  • Page 15 Water leaking Check and correct the inlet water filter Inlet water filter has not been replaced for a long time Too slow in ice making The condenser or air filter is Clean the condenser and filter screen dirty Normal working temperature range of High ambient temperature 41-95°F Poor ventilation...
  • Page 16 • Equipment that has been altered, modified, or repaired by anyone other than an authorized service agency outside of preventative maintenance and cleaning. • Parts deemed by Koolmore to be normal wear and tear parts, including hoses and select plastic or rubber Components.
  • Page 17 For Warranty Inquiries or Service: This warranty is only valid on equipment purchased from an authorized dealer. Locate the model number on the rating label Next, call 1-718-576-6342. You must have the model number when contacting service technicians.
