- Page 1 COMMISSIONING, OPERATING AND MAINTENANCE MANUAL MODEL: MAXLOGIC SERIES SUB MODEL: ANNOUNCE / ALARM MATRIX PANEL...
-
Page 2: Table Of Contents
Inputs and Outputs of Panel Announce Power Module Inputs and Outputs Announce Output Module Inputs and Outputs ML-5020.PO Programmable Alarm / Alert Output Module Outputs ML-5020.AI Announce Input Module Inputs and Outputs Indicators of the Panel Announce Power Module Indicators Announce Output Module Indicators ML-5020.AI Announce Input Module Indicators... -
Page 3: Introduction
Alarm / Alert output module. This panel is compatible with Maxlogic series analogue addressable fire alarm panel. It is able to activate whole of the desired relay outputs with using programmable Alarm / Alert output modules included on Cause / Effect scenarios at event (fire, fault etc.) situation. -
Page 4: Mounting
Fault Tracking Input: It is used to indicate faults on the announce power module to analogue addressable fire alarm panel. 4.3 ML-5020.PO Programmable Alarm / Alert Output Module Outputs Zone1…Zone8 Outputs: Disconnected and normally open contact relay output is endured with 30V DC, 1A. It is used to trigged announce system or an external system. -
Page 5: Indicators Of The Panel

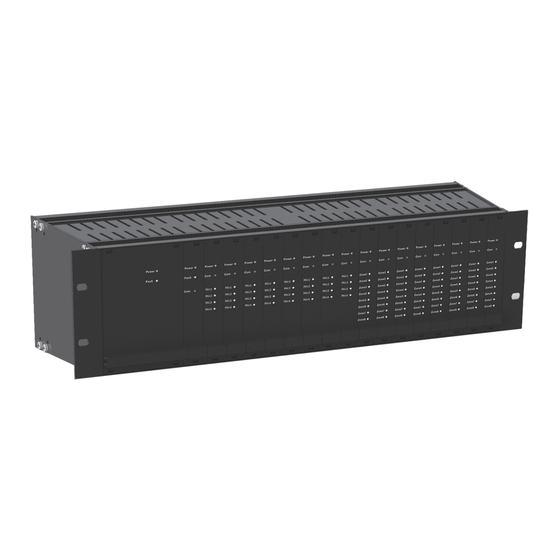

ML-5020.AI Announce Input Module, 4 units of announce microphone input ML-5020.PO Programmable Alarm/Warning Output Module, 8 units of output Announce Output Module, 1 unit of sound output as a standard Announce Power Module 5 - INDICATORS OF THE PANEL 5.1 Announce Power Module Indicators Power : Indicates module’s power on. -
Page 6: Programming The Panel
6. PROGRAMMING THE PANEL ML-5020 Announce / Alarm Matrix Panel connected on analogue addressable fire alarm panel’s loop line. 1 loop line remained empty for module in the system. If there is more than one panel on the system which uses Announce / Alarm matrix panel, each panels must be worked as network. - Page 7 The modules which constitute ML-5020 Announce / Alarm matrix panel must be programmed. - Programming ML-5020.AI Announce Input Module 8 units of announce input module can be connected to ML-5020 Announce / Alarm matrix panel. There are 4 announce module inputs on each announce input module of Announce / Alarm matrix panel.
- Page 8 For an example, if there is 4 units of fire alarm panel which working as network and network addresses sorted by zones as 1, 2, 3, 4, they are associated with Mic1, Mic2, Mic3, Mic4 indicators to panels. KK-641.030 Rev.No:7 08.06.21 ML-5020 User Manual 8/18...
- Page 9 - ML-5020.PO Programming of Programmable Alarm / Alert Output Module 8 units of programmable Alarm / Alert output module can be attached to ML-5020 Announce / Alarm Matrix Panel. Each program- mable Alarm / Alert output module of Announce / Alarm matrix panel have 8 units of volt-free change output.
- Page 10 When programming has been done successfully, the screen on the left hand side is displayed on the control unit. To get the existed program on control unit, “download adjustment” button have been pushed. KK-641.030 Rev.No:7 08.06.21 ML-5020 User Manual 10/18...
- Page 11 32 announce zone can be defined on Telephone / Announce control unit. 32 units of outputs on the programmable Alarm / Alert output module identified with its zonal data for each announce zone. (In example there are 8 announce zone) KK-641.030 Rev.No:7 08.06.21 ML-5020 User Manual 11/18...
- Page 12 Commissioning Notes - The modules on ML-5020 Announce / Alarm matrix panel addresses separately. There are 1 address for Announce Output Module, 4 addresses for Announce Input Module, and 8 addresses for Programmable Alarm / Alert Output Module. - The programming of Announce / Alarm Matrix Panel is performed by using Loop Manager Program.
-
Page 13: Operating The Panel
7 - OPERATING THE PANEL For using the programming features on ML-5020 Announce / Alarm Matrix panel, following steps must be followed: 1. Go over to announce system writing on Telephone / Announce control unit’s display at ML-12XX.NPTA analogue addressable fire alarm panel with using up and down buttons, and announce system is selected. - Page 14 The following screen appears on analogue addressable fire alarm panel which announce microphone is activated. If there are panels which are working as network the other panels shows them on their screens like below. 5. To cancel the announce button most be pushed. KK-641.030 Rev.No:7 08.06.21 ML-5020 User Manual 14/18...
-
Page 15: Technical Specifications
<50KΩ Module Input Socket Capacity: 16 units Programmable Alarm / Alert Output Capacity: 8 x 8 units of ML-5020.PO Programmable Alarm / Alert Output Module Programmable Alarm / Alert Output: 30V DC 1A Announce Module (microphone) Capacity: 4 x 8 units of ML-5020.AI Announce Input Module... -
Page 16: Annex-A System Schematic
KK-641.030 Rev.No:7 08.06.21 ML-5020 User Manual 16/18... -
Page 17: Annex-B Connection Schematic
KK-641.030 Rev.No:7 08.06.21 ML-5020 User Manual 17/18... -
Page 18: Annex-C Dimensions
Şerifali Mahallesi, Kutup Sokak No:27/1-2-4 Ümraniye TR-34775 İSTANBUL 1922-CPR-0750 / 1922-CPR-0749 / 1922-CPR-0748 / 1922-CPR-0747 EN 54-16 MLY-5001 / ML-5020.PO / ML-5020.AI / ML-5020 Technical specifications: Please check KK-641.030 that is held by manufacturer. KK-641.030 Rev.No:7 08.06.21 ML-5020 User Manual... - Page 19 SIGNS USED ON THE DEVICE Sıgn Description Dangerous Voltage 230V AC Rated Voltage Protective Earth Attention! Static Safeguarded Work Area Two units 12V 7Ah battery required 250V, 5A fuse should be used. 250V, 5A KK-641.030 Rev.No:7 08.06.21 ML-5020 User Manual 3/18...
