instructions carefully and familiarize yourself with the different parts.
please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726
Phillips screwdriver
Customer supplied

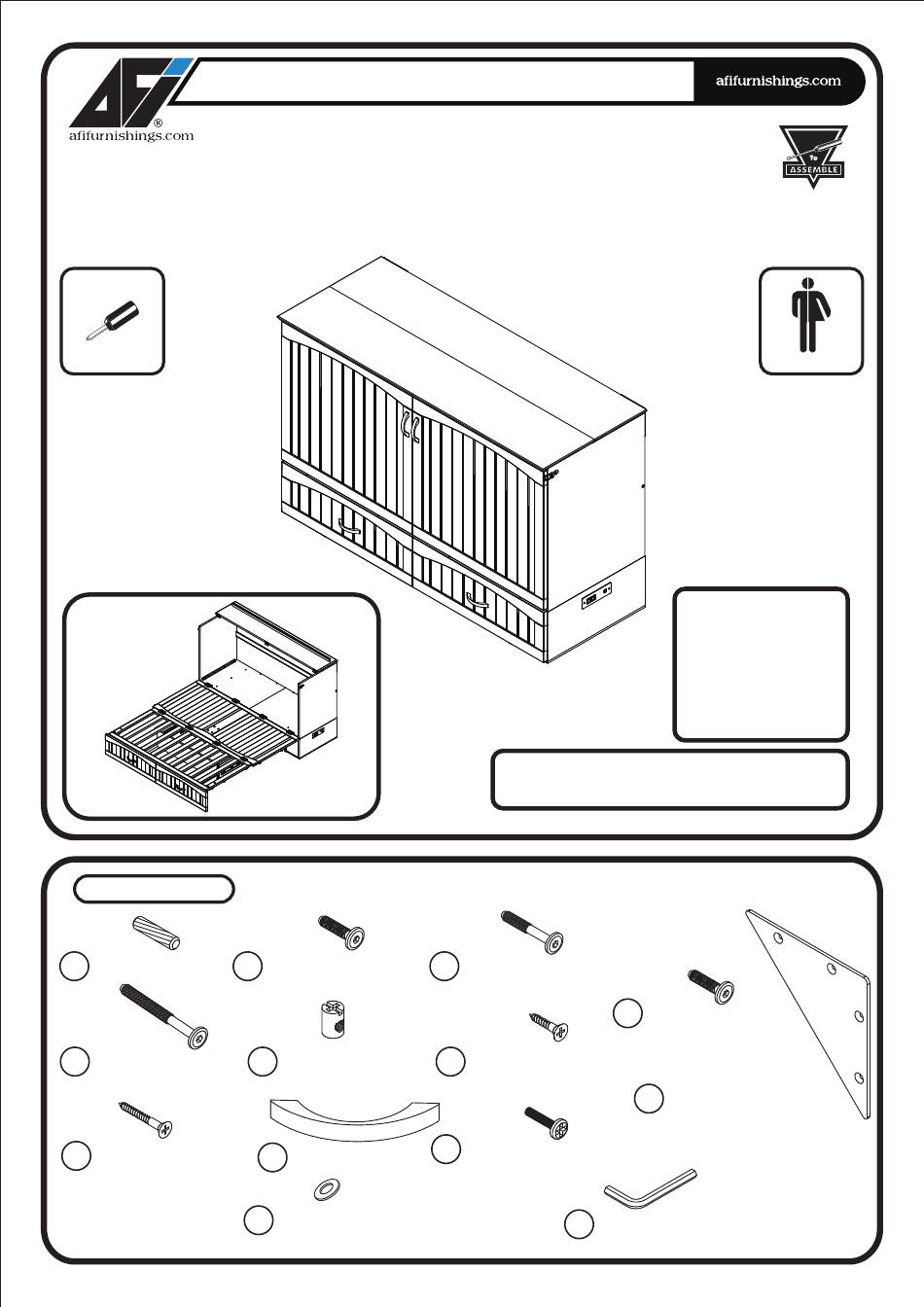

HARDWARE
A
B
Wood dowel - 23 pcs
Spare - 1 pc
D
JCB M6 X 60mm - 6 pcs
Spare - 1 pc
I
Wood screw 3/4" -
8
pcs
Spare - 1 pc

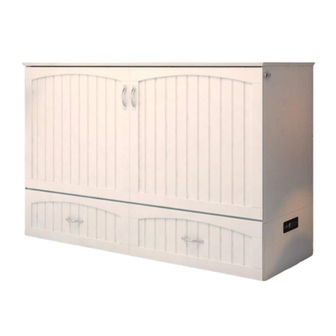

MURPHY BED
WITH CHARGING STATION
ASSEMBLY INSTRUCTIONS
Before assembling your Murphy bed, please read through these
ATTENTION! If you receive a damaged or defective item,
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.
JCB M6 X 25mm - 10 pcs
Spare - 1 pc
E
Barrel Nut 2
-
pcs
Spare - 1 pc
J
Metal pull - 2 pcs
L
Washer - 10 pcs
Adjust quantity as needed.
full
PO :
C
JCB M6 X 40mm - 18 pcs
Spare - 1 pc
F
Wood screw 5/8" - 12 pcs
Spare - 1 pc
K
Metal pull screw 25mm - 4 pcs
Spare - 1 pc
M
CODE
MB-DB-SHN
C-6135X
MB-DO-SHN
C-6136X
MB-PL-SHN
C-6137X
MB-LG-SHN
C-6138X
G
JCB M6 X 30mm - 5 pcs
Spare - 1 pc
H
Triangle Metal Bracket - 2 pcs
Allen wrench - 1 pc
Spare - 1 pc
READY
Adult assembly
ITEM
Page 1 of 9
Advertisement
Related Manuals for AFi MB-DB-SHN
Summary of Contents for AFi MB-DB-SHN
- Page 1 ATTENTION! If you receive a damaged or defective item, please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726 Phillips screwdriver Customer supplied Adult assembly CODE ITEM MB-DB-SHN C-6135X MB-DO-SHN C-6136X MB-PL-SHN C-6137X MB-LG-SHN C-6138X...
-
Page 2: Parts List
full PARTS LIST C- 6135X HARDWARE TOP PANEL BACK PANEL C-6137X 1 BOX MIDDLE BACK RAIL DRAWER FACE FOLDING PANEL FRONT C-6136X 1 BOX DRAWER BASE C-6135X 1 BOX LEFT SIDE PANEL RIGHT SIDE PANEL LEFT TOP PANEL BASE C-6138X 1 BOX RIGHT TOP PANEL BASE LEFT LEG RIGHT LEG... - Page 3 full STEP 2 Attach left and right top panels base (10) and (11) as shown below. Using dowels (A). Adult assembly Wooden dowel Open drawer as shown below. Attach top panel base to the drawer base as shown below. STEP 3 Using dowels (A).
-
Page 4: Back View
full Attach drawer face (05) to drawer box as shown below. Using dowels (A) and JCB (G). STEP 4 Tighten with Allen wrench (M). Adult assembly JCB M6 X 3 mm BACK VIEW Wooden dowel Allen wrench STEP 5 Attach left and right side panels (08) and (09) to the drawer base as shown below. Using JCB (B) tighten with Allen wrench (M) Adult assembly JCB M6 X 25mm... - Page 5 full STEP 6 Guide the back panel (03) in carefully so that it won’t jump out of its grooves. Be sure it fits fully into its groove at the top panel base . Install wood dowels (A) as shown below. Adult assembly Wooden dowel STEP 7...
-
Page 6: Bottom View
full STEP 8 Guide the back panel (03) in carefully so that it won’t jump out of its grooves. Be sure it fits fully into its groove at the middle back rail Attach top panel (02) to cabinet assembly as shown below. Use JCB (B). Tighten with Allen wrench ( ). BOTTOM VIEW Adult assembly JCB M6 X 25mm... - Page 7 full STEP 10 Lift the door and fold as shown below. Lift the door and latch to side panel as shown below. STEP 11 Push the door closed and latch both sides as shown below. Adult assembly Lock Page 7 of 9...
- Page 8 full Attach triangle metal bracket (H) to the back of cabinet as shown below. Use wood STEP 12 screw (I) tighten with Phillips head screwdriver. (customer supplied). Adult assembly Triangle metal bracket Wood Screw 3/4” STEP 13 Pull the drawer out fully. Unlatch the door and open, folding down as shown. Open Adult assembly Page 8 of 9...
- Page 9 full STEP 14 Install folding mattress (14) to the bed. Adult assembly STEP 15 Open top panel and push drawer base in as shown below. Adult assembly Congratulations! Your Murphy bed is now ready for use. We recommend that you recheck that all screws are tight, and that all parts are secure before use to ensure lasting Safety.
