please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726
Phillips screwdriver
Customer supplied
HARDWARE
A
JCB M6 X 30mm (1 1/4") - 12 pcs
Spare - 1 pc
D
Wood screw 3/4" - 17 pcs
Spare - 1 pc
H
Barrel Nut - 2 pcs
Spare - 1 pc
M
L
Spring clip set with screw - 2 pcs

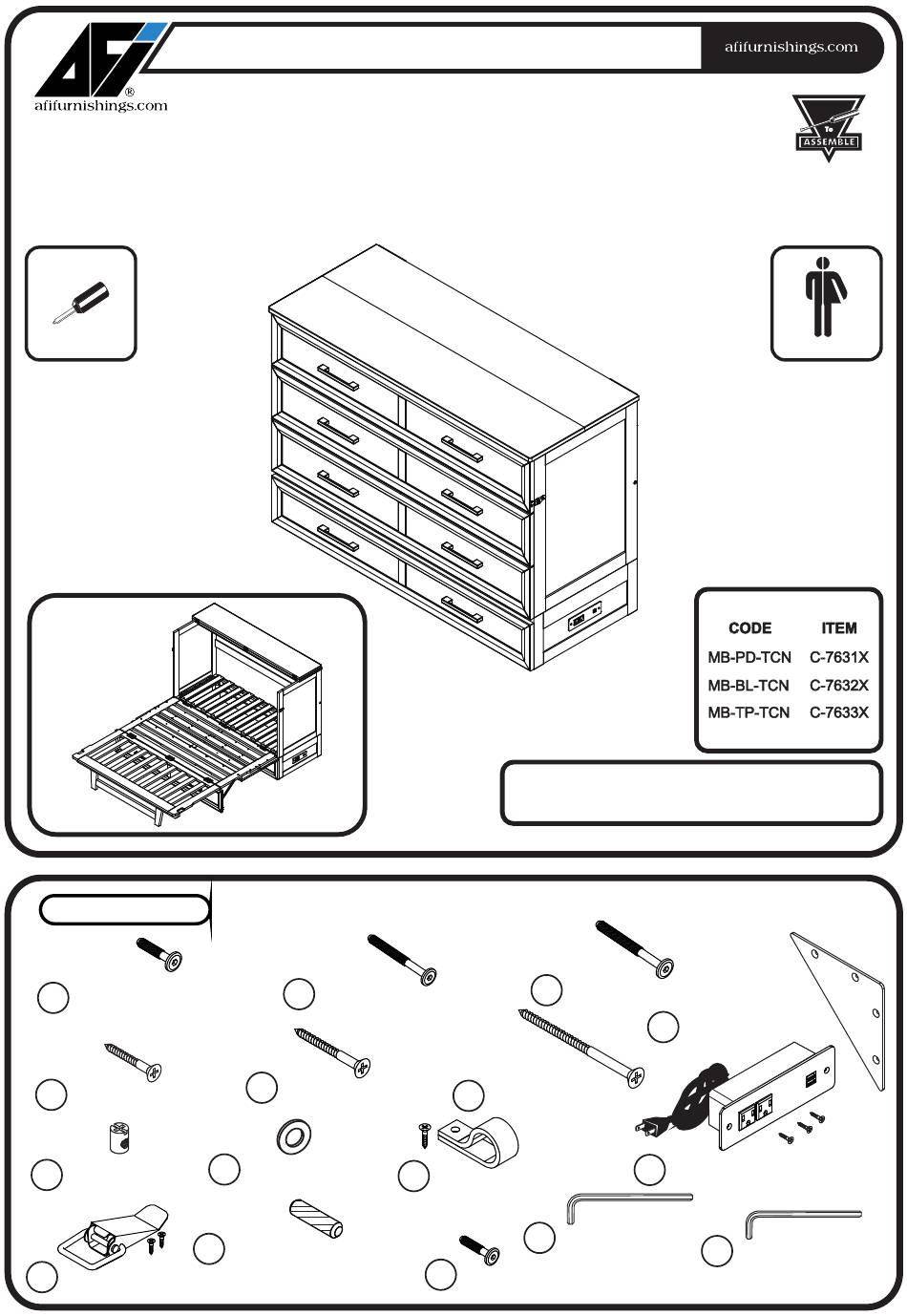

MURPHY BED
ASSEMBLY INSTRUCTIONS
Before assembling your murphy bed, please read through these
instructions carefully and familiarize yourself with the different parts.
ATTENTION! If you receive a damaged or defective item,
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.
B
JCB M6 X 55mm (2 1/8") - 2 pcs
E
Wood screw 1 1/4" - 2 pcs
Spare - 1 pc
I
Flat Washer - 8 pcs
Spare - 1 pc
Wood dowels 8 x 30mm - 10 pcs
Spare - 2 pcs
FULL
PO :
C
JCB M8 X 55mm (2 1/8") - 8 pcs
Spare - 1 pc
F
Wood screw 2" - 4 pcs
Spare - 1 pc
J
Cable Fastener - 1 pc
Set with Screw
O
Allen wrench M5 - 1 pc
N
JCB M6 X 25mm (1") - 4 pcs
Spare - 1 pc
READY
Adult assembly
Spare - 1 pc
G
Triangle Bracket - 2 pcs
K
Surface Mount Charger - 1 set
Screw 1/2" - 2 pcs
Spare - 1 pc
P
Allen wrench M4 - 1 pc
Spare - 1 pc
Page 1 of 9
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for AFi MB-PD-TCN
Summary of Contents for AFi MB-PD-TCN
- Page 1 MURPHY BED FULL READY ASSEMBLY INSTRUCTIONS Before assembling your murphy bed, please read through these instructions carefully and familiarize yourself with the different parts. ATTENTION! If you receive a damaged or defective item, please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726 Phillips screwdriver Customer supplied Adult assembly...
-
Page 2: Parts List
FULL PARTS LIST HARDWARE LEFT SIDE PANEL RIGHT SIDE PANEL 1 BOX C-7632X BASE LEFT FRONT LEG RIGHT REAR LEG LEFT REAR LEG RIGHT FRONT LEG L PANEL LEFT L PANEL RIGHT L BOTTOM RAIL DRAWER FACE DRAWER BACK DRAWER SIDE DRAWER PANEL DRAWER PANEL SUPPORT BACK RAIL... -
Page 3: Bottom View
FULL Guide the back panel (17) and back rail (16) in carefully so that it won’t jump out of STEP 2 its grooves. Be sure it fits fully into its groove at the back rail before fitting the top panel. Use JCB (B) and barrel nut (H). Tighten with allen wrench M4 (P). Adult assembly Barrel nut Allen wrench M4... - Page 4 FULL Attach legs (06)(07) to cabinet assembly as shown below. Use flat washer (I) and STEP 4 JCB M8 (C).Tighten with Allen wrench M5 (O) Adult assembly Flat Washer JCB M8 Allen Wrench M5 Guide the L panel (08)(09) and L bottom rail (10) in carefully so that it won’t jump out of STEP 5 its grooves.
- Page 5 FULL Open top drawer folding leg as shown below. Using metal support and lock to the STEP 6 post.(both side) Top drawer folding leg LOCK Adult assembly Attach folding panel assembly (19) to cabinet assembly as shown below. Use wood STEP 7 screw (D).
- Page 6 FULL Unlock metal support. Lift the door and latch to side panel. Push the door closed and STEP 8 latch both sides as shown below. Lock Adult assembly UNLOCK BOTH SIDE Attach triangle bracket (G) to the back of cabinet as shown below. Use wood screw (D) STEP 9 tighten with Phillips head screwdriver.
- Page 7 FULL Lay the drawer face (11) on smooth, flat surface so the groove is facing upwards. STEP 11 Fit the drawer side (13) to drawer face (11), Use JCB (A), align groove inside panel with groove in drawer face. Tighten with Allen wrench M4 (P). Adult assembly JCB M6 X 30mm Allen wrench M4...
- Page 8 FULL Move the murphy bed assemblies where you want to place them in the room. STEP 14 Insert drawer assembly to the murphy bed assembly as shown below. Adult assembly Unlatch the door and open, folding down and lock metal support to the post as shown. STEP 15 Lock Open...
- Page 9 FULL Open and pull footboard frame and open footboard leg as shown below. STEP 11 STEP 16 FOOTBOARD FRAME FOOTBOARD LEG Adult assembly Install folding mattress (20) to the bed. Open top panel as shown below. STEP 17 Congratulations! Your Murphy bed is now ready for use. We recommend that you recheck that all screws are tight, and that all parts are secure before use to ensure lasting Safety.
