please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726
Phillips screwdriver
Customer supplied

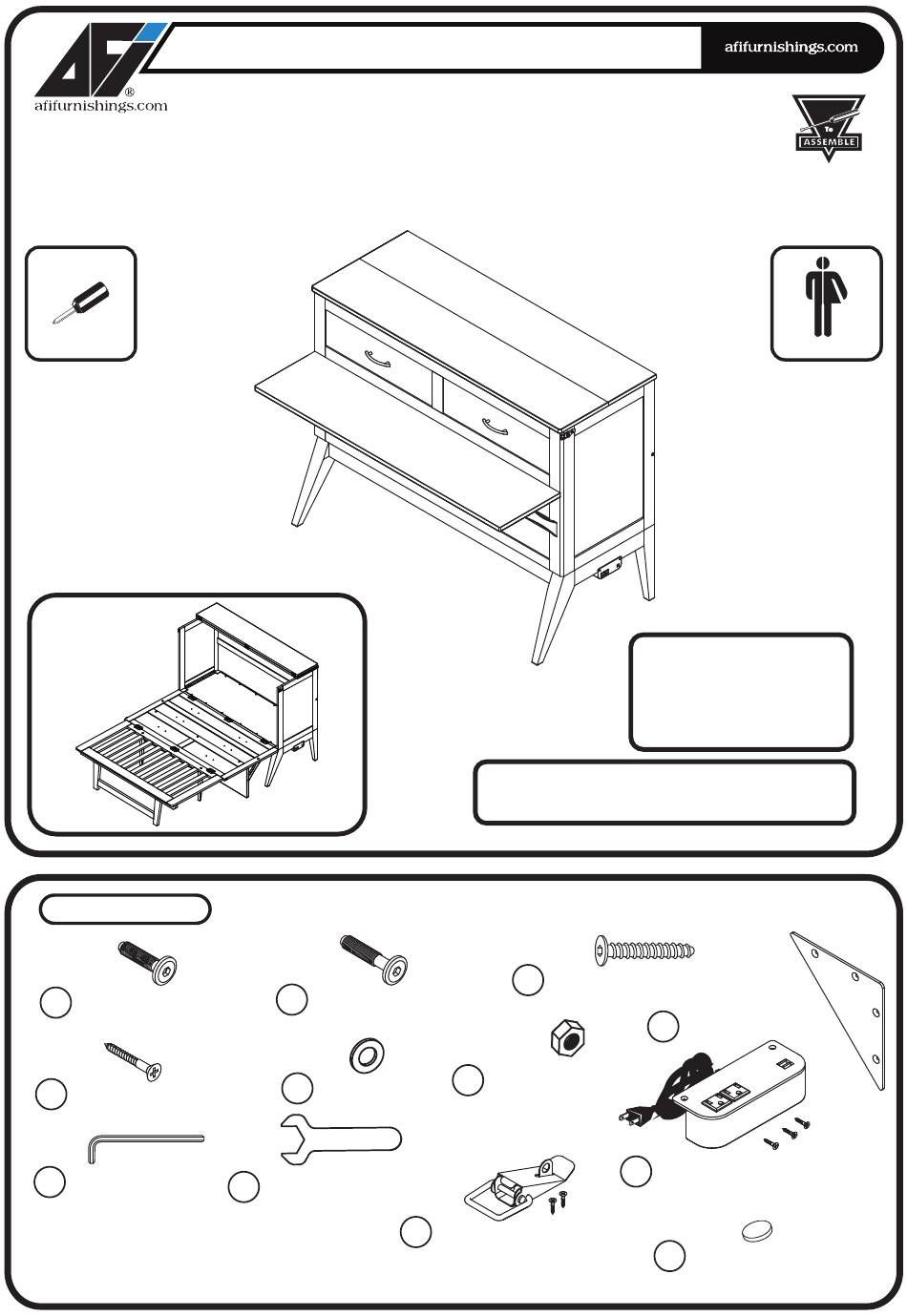

HARDWARE
A
JCB M6 X 25mm (1") - 8 pcs
Spare - 1 pc
D
Wood screw 1" - 17 pcs
Spare - 2 pcs
G
Allen wrench - 1 pc
Spare - 1 pc
MURPHY BED DESK
ASSEMBLY INSTRUCTIONS
Before assembling your murphy bed, please read through these
instructions carefully and familiarize yourself with the different parts.
ATTENTION! If you receive a damaged or defective item,
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.
B
JCB M6 X 30mm (1 1/4") - 5 pcs
E
Flat Washer - 8 pcs
Spare - 2 pcs
H
Hexagon wrench - 1 pc
FULL
PO :
C
Allen Screw 45mm (1 3/4") - 8 pcs
Spare - 1 pc
F
Hexagon Nut - 8 pcs
Spare - 1 pc
I
Spring clip set with screw - 2 pcs
Adult assembly
CODE
ITEM
MB-DKD-NHN
C-7831X
MB-DKB-NHN
C-7832X
MB-DKP-NHN
C-7833X
Spare - 1 pc
J
Triangle Bracket - 2 pcs
K
Surface Mount Charger 2 - 1 set
Screw 1/2" - 2 pcs
Spare - 1 pc
L
Rubber Bumper - 3 pcs
Spare - 3 pcs
Page 1 of 8
READY
Advertisement
Related Manuals for AFi C-7831X
Summary of Contents for AFi C-7831X
- Page 1 ATTENTION! If you receive a damaged or defective item, please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726 Phillips screwdriver Customer supplied Adult assembly CODE ITEM MB-DKD-NHN C-7831X MB-DKB-NHN C-7832X MB-DKP-NHN C-7833X PO : HARDWARE NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.
- Page 2 LEFT PANEL LEG 1 BOX C-7832X RIGHT PANEL LEG LEFT DESK SUPPORT RIGHT DESK SUPPORT LEFT FRONT LEG RIGHT FRONT LEG BACK LEG 1 BOX C-7831X FOLDING PANEL BACK RAIL BACK PANEL DESK TOP 1 BOX C-7833X TOP PANEL 1 BOX...
- Page 3 FULL STEP 2 Guide the back panel (14) and back rail (13) in carefully so that it won’t jump out of its grooves. Be sure it fits fully into its groove at the back rail before fitting the top panel. Use allen screw (C). Tighten with allen wrench (G). Adult assembly Allen screw Allen wrench...
- Page 4 FULL Attach left right front legs (09)(10) and back legs (11) to cabinet assembly STEP 4 as shown below. Use flat washer (E) and hexagon nut (F).Tighten with Hexagon wrench (H) Adult assembly Flat Washer Hexagon Nut Hexagon Wrench STEP 5 Attach left desk support (07) and right desk support (08) to desk top (15) as shown below.
- Page 5 FULL Attach desk top assembly to folding panel (12) as shown below. Use JCB (B). STEP 6 Tighten with Allen wrench (G) BACK VIEW Adult assembly JCB M6 X 30mm Allen wrench STEP 7 Attach folding panel assembly (12) to cabinet assembly as shown below. Use wood screw (D).
- Page 6 FULL Attach left right panel legs (05)(06) to cabinet assembly as shown below. Use allen STEP 8 screw (C) tighten with Allen wrench (G). Adult assembly Allen Screw Allen wrench Phillips screwdriver Customer supplied STEP 9 Folding up the door. Push the door closed and latch both sides as shown below. Adult assembly Lock Page 6 of 8...
- Page 7 FULL Attach triangle bracket (J) to the back of cabinet as shown below. Use wood screw (D) STEP 10 tighten with Phillips head screwdriver. (customer supplied). PILOT HOLES Adult assembly Triangle bracket STEP 11 Install USB charger (K) to the location as shown.
- Page 8 FULL STEP 12 Install folding mattress (17) to the bed as shown below. Adult assembly Adult assembly Congratulations! Your Murphy bed is now ready for use. We recommend that you recheck that all screws are tight, and that all parts are secure before use to ensure lasting Safety. Page 8 of 8...
