IHP ST310 Installation Instructions

INSTALLATION INSTRUCTIONS FOR INSTALLING REPLACEMENT SECONdARy AIR TUBES
ON MOdELS ST310 ANd C310 wOOd BURNING STOVES ANd FIREPLACE INSERTS

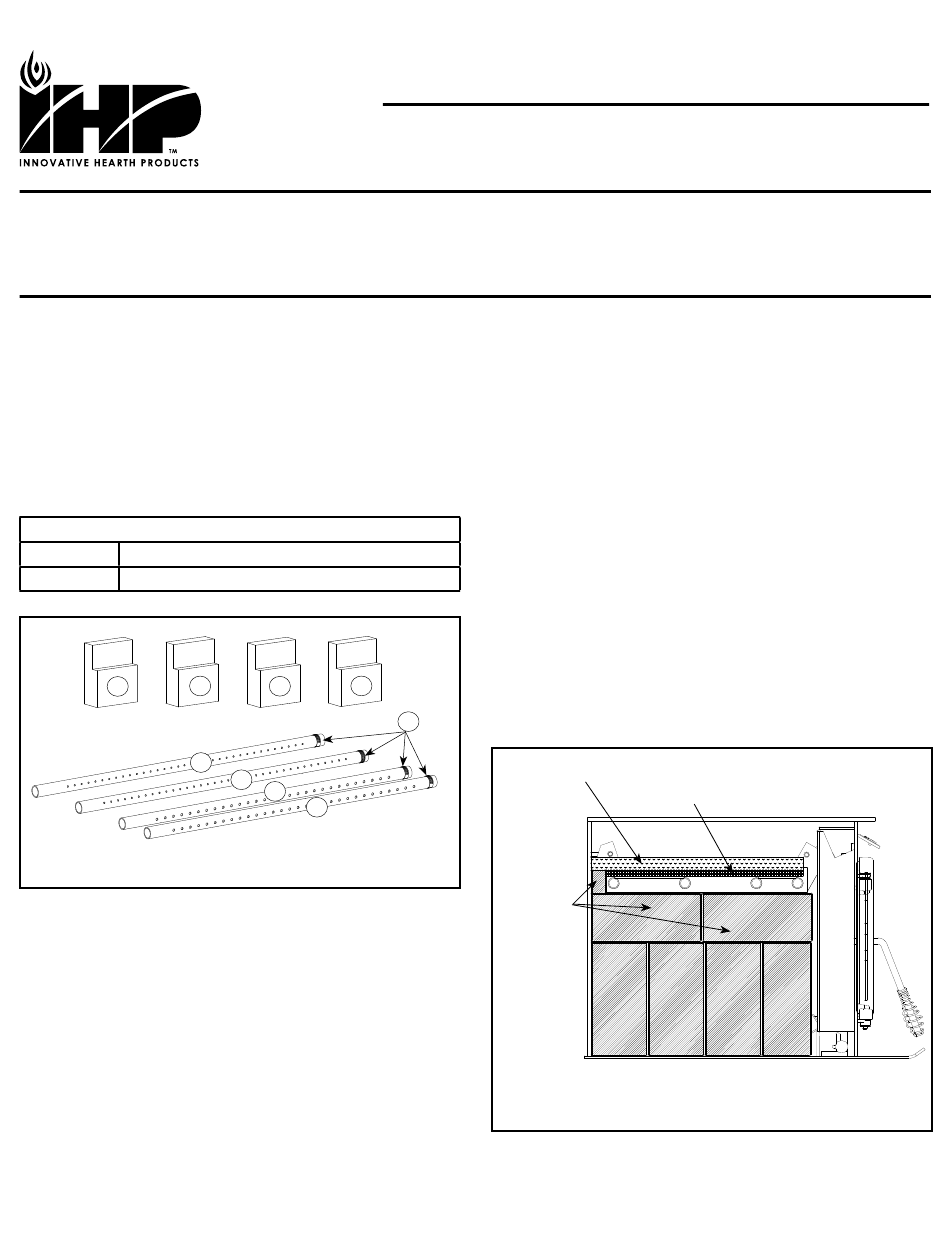

KIT CONTENTS (See Figure 1)
1 ea. Secondary Air Tube #1 (item A)
1 ea. Secondary Air Tube #2 (item B)
1 ea. Secondary Air Tube #3 (item C)
1 ea. Secondary Air Tube #4 (item D)
4 ea. Hose Clamps (item E)
4 ea. Firebrick, Notched 4-1/2" x 6-1/2" (item F)
1 ea. Instruction Sheet
Secondary Air Tube Replacement Kits (complete)
Cat. #
H5566 Canyon™ ST310 and C310,
F F
d
4
3
2
Figure 1 - Kit Contents
TOOLS / SUPPLIES NEEdEd
Small Flat Screwdriver
Gloves
GENERAL INFORMATION
This instruction sheet explains how to replace the secondary air tubes in
Canyon™ 310 wood burning stoves and fireplace inserts. No cutting or
welding is required to install this kit.
If you encounter any problems, need clarification of these instructions or are
not qualified to properly install this kit, contact your local distributor or dealer.
Read this instruction sheet in its entirety before beginning the installation.
P/N 506033-47
REV. B, 11/2013
description
F F
C
B
A
1
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
ALL wARNINGS ANd PRECAUTIONS IN THE INSTALLATION ANd
OPERATION MANUAL PROVIdEd wITH THE APPLIANCE APPLy TO THESE
INSTRUCTIONS.
ALLOw THE APPLIANCE TO COMPLETELy COOL BEFORE PROCEEdING.
REMOVE ALL BAFFLE BRICKS OR BOARdS ANd BAFFLE BLANKETS ANd
CLEAN OUT ALL OF THE ASHES BEFORE STARTING. wEAR GLOVES
TO PROTECT yOURSELF FROM POSSIBLE SHARP EdGES INSIdE THE
FIREBOX.
INSTALLATION INSTRUCTIONS
Baffle Brick or Boards and Baffle Blanket Removal:
Step 1. Remove the baffle blankets, baffle bricks or boards and upper rear
and side firebrick. See Figure 2.
CAUTION: wear gloves during brick removal in case of sharp edges
inside the stove.
E
1) Remove Baffle Blankets
3) Remove
upper rear and
side firebrick.
Figure 2 - Remove Baffle Components
