CORPORATION

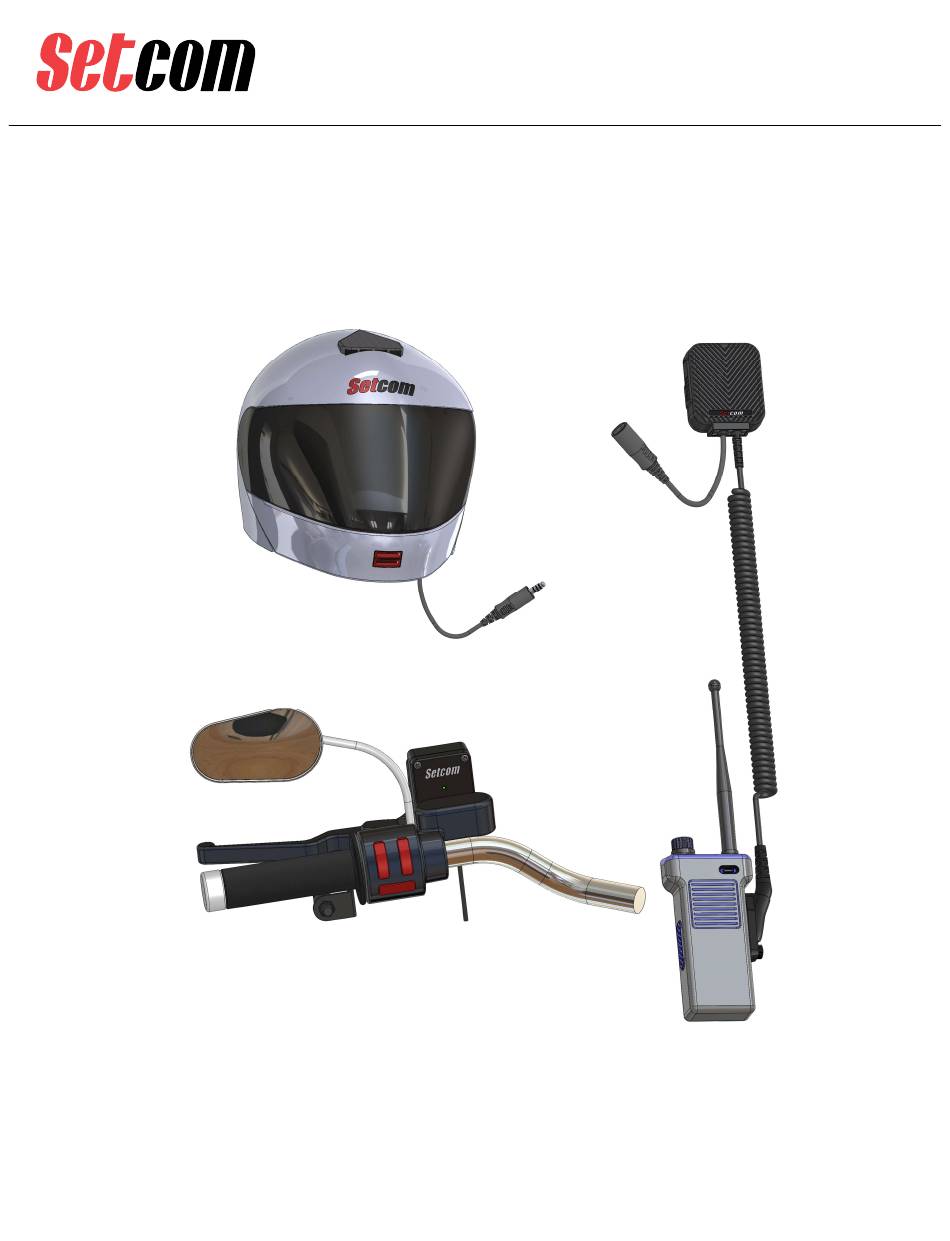

The Portable Only Wireless SpeakerMic and PTT Transmitter are used for remote PTT control of a
portable radio connected to a Setcom SpeakerMic. They must be paired for wireless PTT to function.
Helmet Kit (Helmet not Included)
KA/KE - 24IM (Full Face)
KA/KE - 21S (Half Shell)
UG10003
Rev X1
®
Portable Only Wireless Guide
PTT Transmitter
Technical Issues, Questions? Call 650-965-8020
SpeakerMic
SBE-_ or SBA-_
MB_-31
3019 Alvin DeVane Blvd.
Ste. 560
Austin, TX 78741
Phone: (650) 965-8020
Page
1
of
11
Advertisement
Related Manuals for Setcom SBA Series
Summary of Contents for Setcom SBA Series
- Page 1 Portable Only Wireless Guide The Portable Only Wireless SpeakerMic and PTT Transmitter are used for remote PTT control of a portable radio connected to a Setcom SpeakerMic. They must be paired for wireless PTT to function. SpeakerMic SBE-_ or SBA-_...
- Page 2 Several models of SpeakerMic units exist (SBE-_ or SBA-_), the specific model number depends on the portable radio model to be used. The MZ4 Radio Adaptor is shown above, please contact Setcom Sales team for available radio models. Technical Issues, Questions? Call 650-965-8020...
-
Page 3: Push Button
Several models of PTT Transmitter units exist (MB_-31), the specific model number indicates the motorcycle type the model will be used on. Common Motorcycle Models are shown above, please contact Setcom Sales team for models not listed here. Technical Issues, Questions? Call 650-965-8020... - Page 4 ® 3019 Alvin DeVane Blvd. Ste. 560 Austin, TX 78741 Phone: (650) 965-8020 CORPORATION To Pair a SpeakerMic and PTT Transmitter: • With the SpeakerMic attached to the portable radio, hold down the PTT button on the SpeakerMic and turn on the radio, the Status LED will slowly flash RED twice, then it will begin fast GREEN flashing.
-
Page 5: General Installation Notes
® 3019 Alvin DeVane Blvd. Ste. 560 Austin, TX 78741 Phone: (650) 965-8020 CORPORATION General Installation Notes Wiring the PTT Transmitter: The PTT Pushbutton is hard-wired to the enclosure and only needs to be mounted onto the included bracket (see Fig. 1). For the MBB15-31, PTT installation only requires plugging a connector into Header #6 - Helmet Headset Interface of the BMW Radio Box Connections. - Page 6 3019 Alvin DeVane Blvd. Installing the MBB15-31 ® Ste. 560 Austin, TX 78741 Phone: (650) 965-8020 CORPORATION Package includes: Choose a position within the shaded area to MBB15-31 – QTY 1 mount the MBB15-31 to the inner LID of the 18-6001 –...
- Page 7 3019 Alvin DeVane Blvd. ® Installing the MBH-31 Ste. 560 Austin, TX 78741 Phone: (650) 965-8020 CORPORATION Use the left mirror post as the mounting location for PTT Tx unit mounted on installation on Harley-Davidson motorcycles. 14-0085 bracket Mirror Post DC Power Cable –...
- Page 8 3019 Alvin DeVane Blvd. ® Installing the MBU-31 (H) Ste. 560 Austin, TX 78741 Phone: (650) 965-8020 CORPORATION The MBU-31 (H) is for semi-custom installations where standardized brackets may not be applicable. The PTT Transmitter Unit is to be mounted on the left mirror post in the same way as the MBH-31.
- Page 9 ® 3019 Alvin DeVane Blvd. Ste. 560 Austin, TX 78741 Phone: (650) 965-8020 CORPORATION Troubleshooting Tips: Most problems can be resolved by simply checking the cabling and connectors to verify they are in good condition and not damaged. If they are damaged the unit will need to be repaired. Power: To verify the unit is getting power –...
-
Page 10: Regulatory Notices
® 3019 Alvin DeVane Blvd. Ste. 560 Austin, TX 78741 Phone: (650) 965-8020 CORPORATION Regulatory Notices FCC label for Bluetooth SpeakerMics FCC label for Bluetooth PTT Transmitters Contains FCC ID: 2AMWO-FSCBT1026 Contains FCC ID: 2AMWOFSC-BT986 Contains IC: 23872-FSCBT1026 Contains IC: 23872-FSCBT986 Module statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. - Page 11 ® 3019 Alvin DeVane Blvd. Ste. 560 Austin, TX 78741 Phone: (650) 965-8020 CORPORATION Regulatory Notices Continue Radio Frequency Exposure Statement for IC The device has been evaluated to meet general RF exposure requirements. The device can be used in mobile exposure conditions.
