Page 1: User Guide
User Guide : 900 Series Wireless Headsets: Second Generation SetcomCorp.com | Main: 1-650-965-8020 | Fax: 1-650-965-1193 070311... - Page 2 900 Series Wireless Headsets: Second Generation 1.0 GENERAL Before using your wireless headset, read these instructions carefully. • Each 900 Series Wireless Headset comes as a kit which includes the following components: • - wireless headset (Fig. 1); - Base Station (Fig. 2);...
- Page 3 Install the Portable Radio Adapter Cable (part number: PRAC-W__ [where the underscore is • Setcom’s portable radio designator]; sold separately). Connect the PRAC’s radio adapter to your portable radio. Then plug the round connector (5-pin, mini-XLR) into the Portable Radio Interface Connector (Fig.
- Page 4 User Guide : 900 Series Wireless Headsets: Second Generation 2.5 Pairing Your headset is shipped pre-paired to its Base Station. If you need to re-pair your headset to its Base Station or pair it to another Base Station, follow these steps: - Verify that the Base Station is turned on.
- Page 5 Amber with green flashes: The headset’s Mobile Radio Push-to-Talk has been pushed, • and the mobile radio is keyed to transmit. 4.0 SUPPORT For technical support, please contact Setcom at the number below. Please have your sales or purchase order number when you call. 650.965.8020 x603 or tech@setcomcorp.com 5.0 WARRANTY Setcom’s Standard Limited Warranty covers this product.

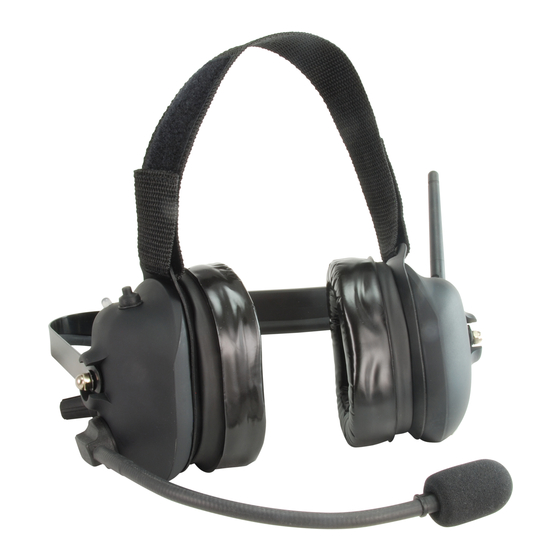

- Page 6 User Guide : 900 Series Wireless Headsets: Second Generation Figure 1 900 Series Wireless Headset Second Generation (rear view) (g) Headset Antenna (b) LED Indicator (c) Volume Control Also Power On/ Off CSB-900W2 SN: SXXXXXXXXX (a) Charging Jack DC input power (7 to 24Vdc)
- Page 7 User Guide : 900 Series Wireless Headsets: Second Generation Figure 2 900 Series Wireless Base Station Second Generation (side view) (e) Base Station Antenna (a) LED Indicator (a) LED Indicator 900W2-BASE SN: Sxxxxxxxxx (c) Power Cable Connector (b) Pairing Button...
