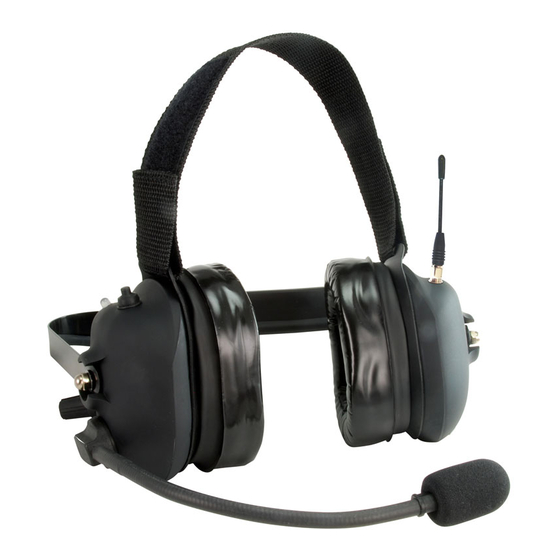

LiberatorMAX Industrial Wireless Headsets
CSB-990MAX and CSB-992MAX
USERS GUIDE
The LiberatorMAX Headset is used in
conjunction with up to 7 additional
headsets to form a wireless intercom
network system.
The headset can operate on any one of
8 available channels – all headsets
must be on the same channel for
network intercom operation.
A Portable Radio can be connected to
the Headset using a PRAC Cable. The
Portable Radio will connect exclusively
to that headset – other headsets in the
group will not hear the received audio or
be able to transmit over the radio.
Charging Jack
5V-14V DC
Questions or technical issues? Please call:
TECH SUPPORT: 650-965-8020 ext. 703
®
CORPORATION
11/13/18 SBH
Headset
Antenna
Portable Radio
Portable Radio
Cable Jack
Push-To-Talk
3019 Alvin DeVane Blvd.
Ste. 560
Austin, TX 78741
Phone: (650) 965-8020
LiberatorMAX_Industrial_User_Guide_REV_X8.pdf
LiberatorMAX Headset
REAR VIEW
Left Cup
Right Cup
CSB-990MAX
SN:XXXXXXXXX
Boom Mic
LiberatorMAX Headset
FRONT VIEW

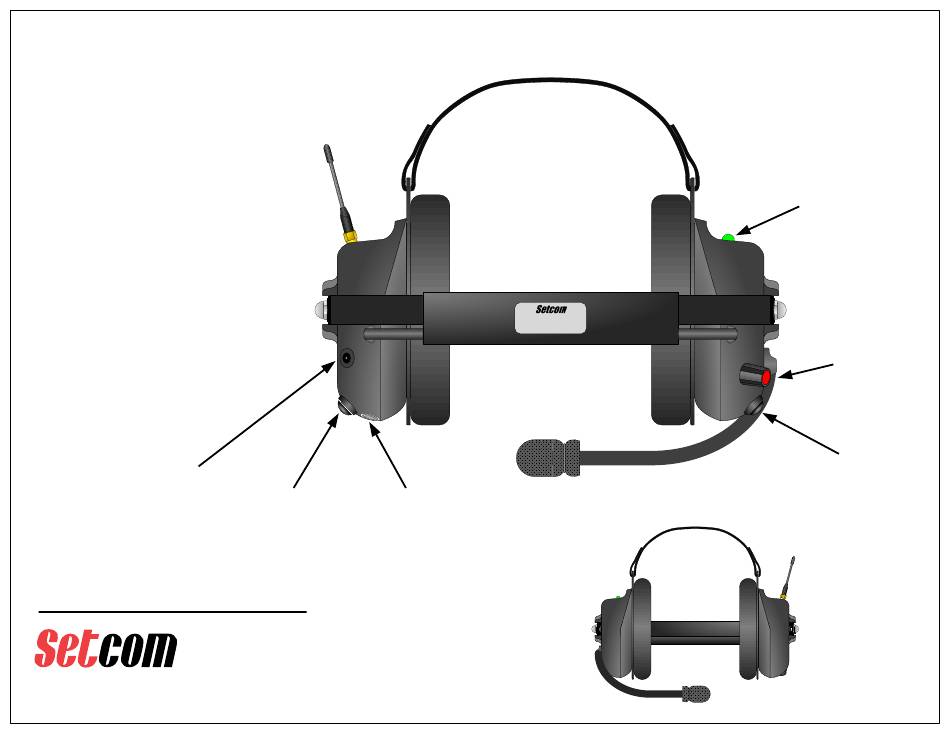

LiberatorMAX Headset:
Controls, Jacks, and LED
Status Indicator
LED
Volume Control
& On/Off
Mic Mute and
Channel Change
Page
Switch
1
of
6
