AXIS Q18 Series
Repaint the product

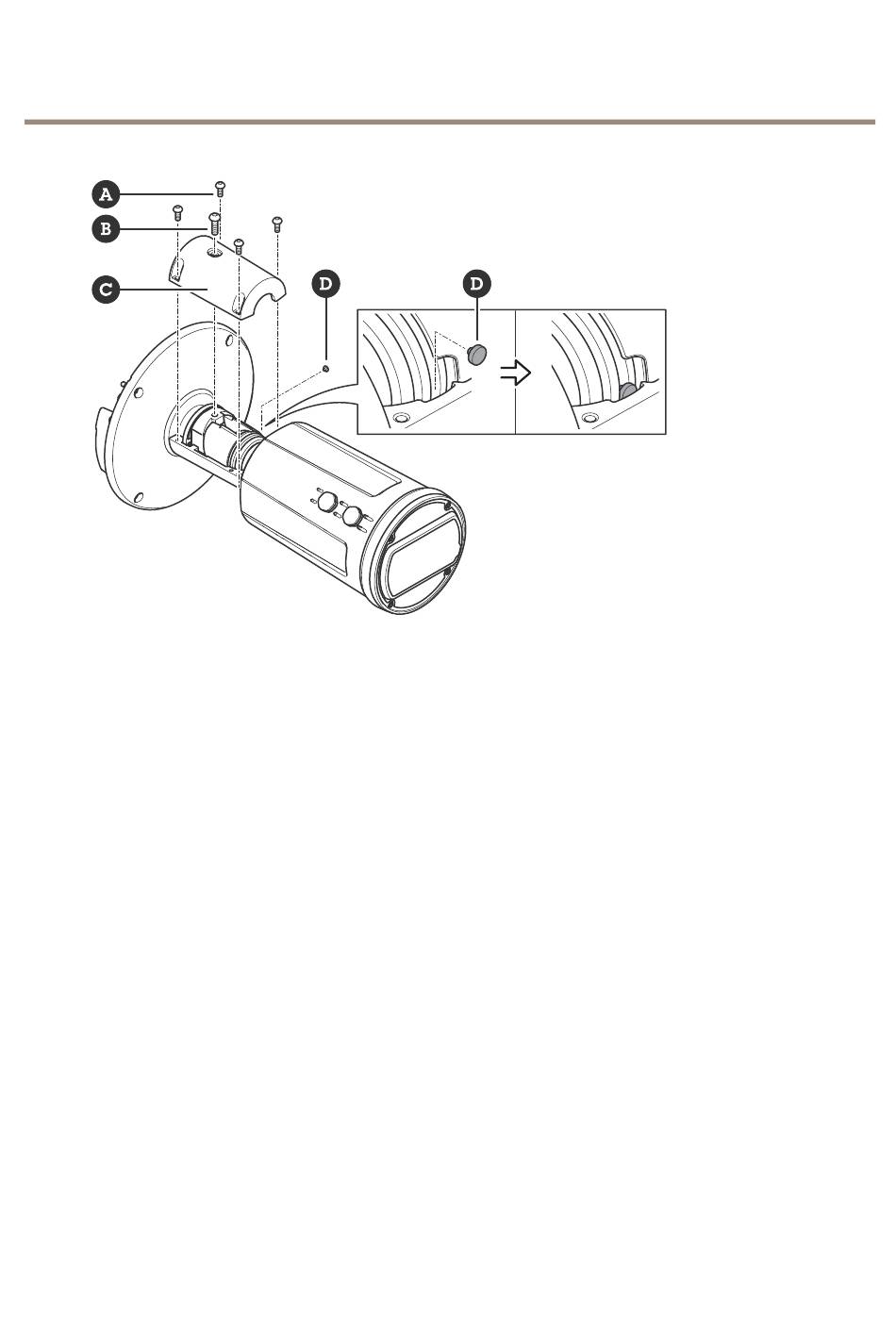

A
Screw (x4)
B
Lock screw
C
Top cover
D
Pin
5. Place the pin in the recess in the cover.
6. Attach the top cover. the four screws, and the lock screw. Do not tighten the lock screw.
7. Tighten the four screws with 2 Nm (1.5 lb ft) tightening torque.
9
